- Page 1 Manual for Installation, Use and Maintenance Passionate about style Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
- Page 2 Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified personnel. Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
-
Page 3: Using Your Extractor

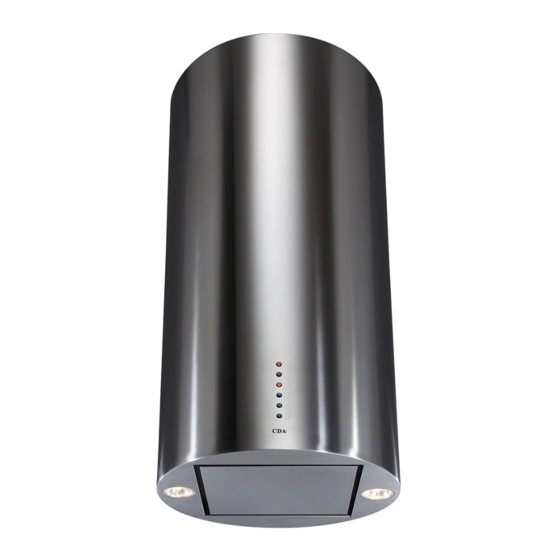

Using your Extractor For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Control Panel A – Light button B, C, D – Speed level buttons E –... -
Page 4: Care And Maintenance
Care and Maintenance IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Cleaning You should use a nonabrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. You can clean your extractor effectively by simply using a dilute solution of water and mild detergent and drying to a shine with a clean cloth. - Page 5 Changing the Halogen bulbs IMPORTANT: DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. DO NOT CHANGE THE LIGHT BULB IMMEDIATELY AFTER USE AS THE BULB WILL BE HOT. ALLOW IT TO COOL BEFORE REMOVING IT. Open the base of the extractor as described above and then press downwards on the light housing as shown in figure 5 before removing the bulb.
-
Page 6: Mains Electricity Connection
Mains Electricity Connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSED SPUR OUTLET AND PROTECTED BY A 3A FUSE. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. -
Page 7: Installation
Installation Your extractor can be used to recirculate or extract to the outside, either through a rear wall or via the ceiling void, as shown in fig 6 Preparing the unit for installation. Place the unit on a table and remove the grease filter as shown in figure 7. - Page 8 CDA hob. (The height should be measured from the top of the hotplates or burners) Where the extractor is to be installed above a non-CDA hob, the instructions supplied with the hob may dictate that the Fig. 9 height required above the hob is greater than 650mm.
- Page 9 Installation Secure the stainless section to the motor body as shown in the following images 1. Refit the 2 screws (A) in the side (fig. 1 3) 2. Refit the 4 screws (A) in the base (fig. 1 4) Finally, fit the 2 black cover caps (taped to the underside of the filter cover) into the holes on the side.
