McCulloch 2500CXL Instruction Manual

McCulloch 2500CXL Instruction Manual

Mcculloch 2500cxl brushcutter instruction manual
Hide thumbs Also See for 2500CXL:
Table of Contents

Advertisement

Quick Links

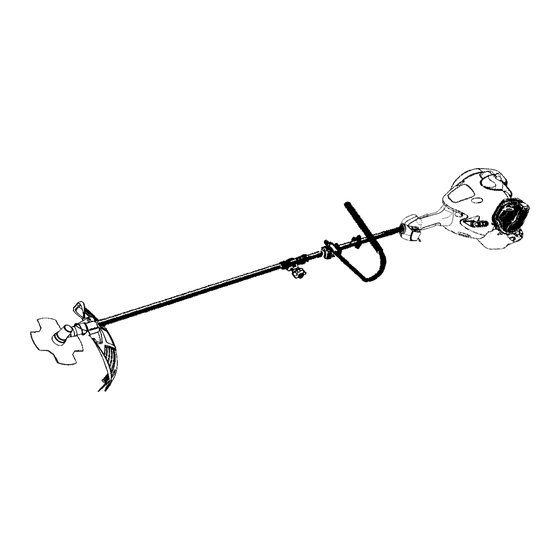

INSTRUCTION MANUAL
IMPORTANT INFORMATION
GB
sure you understand them before using this unit. Retain these instructions for future
reference.
MANUEL D'INSTRUCTIONS
RENSEIGNEMENTS IMPORTANTS:
FR
atentivement les instructions et assurez- -vous de les avoir comprises. Conservez
les instructions pour référence ultérieure.
BETRIEBSANWEISUNG
WICHTIGE INFORMATION:
DE
Geräts aufmerksam durch. Verwenden Sie es erst, wenn Sie sicher sind, daß Sie
alle Anweisungen verstanden haben und gut aufbewahren.
MANUAL DE INSTRUCCIONES
INFORMACIÓN IMPORTANTE:
ES
asegúrese de entenderlas antes de utilizar esta aparato. Conserve las instruc-
ciones para la referencia en el futuro.
2500CXL
: Please read these instructions carefully and make
Avant d'utiliser cet appareil, veuillez lire
Lesen Sie diese Hinweise zur Handhabung des
Lea atentamente las instrucciones y
115270826 Rev. 3
12/15/10 BRW

Advertisement

Table of Contents
loading

Related Manuals for McCulloch 2500CXL

Summary of Contents for McCulloch 2500CXL

  • Page 1 2500CXL INSTRUCTION MANUAL IMPORTANT INFORMATION : Please read these instructions carefully and make sure you understand them before using this unit. Retain these instructions for future reference. MANUEL D’INSTRUCTIONS RENSEIGNEMENTS IMPORTANTS: Avant d’utiliser cet appareil, veuillez lire atentivement les instructions et assurez- -vous de les avoir comprises. Conservez les instructions pour référence ultérieure.

  • Page 2: Identification Of Symbols

    IDENTIFICATION (WHAT IS WHAT?) 1. Fuel tank 12. Throttle trigger 2. Handlebar 13. Throttle lock- -out 3. ON/STOP switch 14. Starter handle 4. Shoulder strap clamp 15. Fuel cap 5. Shoulder strap 16. Primer bulb 6. Trimmer head 17. Start lever 7.

  • Page 3: Safety Rules

    WARNING! This brushcutter can be dangerous! Careless or improper use can cause serious or even fatal injury. B. Read and understand the instruction manual before using the brushcutter. C. Always use: Ear protection, eye protection, head protection, boots, and gloves. DANGER! Blade can thrust violently away from material it does not cut.

  • Page 4: Operator Safety

    S Maintain unit according to recommended procedures. Keep blade sharp. Keep cut- ting line at the proper length. S Use only 3 mm diameter McCulloch brand replacement line. Never use wire, rope, string, etc. S Install required shield properly before using the unit.

  • Page 5: Special Notice

    S Keep firm footing and balance. Do not S Store unit so line limiter cannot accidentally overreach. cause injury. Unit can be hung by the shaft. S Keep blade or trimmer head below waist S Always install transport guard on blade be- level.

  • Page 6: Attaching The Handlebar

    Coupler Primary Hole Screw Handlebar Guide Recess Locking/ Upper Bracket Cover Attachment Release Shaft Button Mounting Bracket WARNING: Make sure the locking/ release button is locked in the primary hole and the knob is securely tightened before op- ASSEMBLY OF SHOULDER STRAP erating the unit.
  • Page 7 HARNESS ADJUSTMENT FOR BALANCE 15 cm Bolt below 10 -- 30 cm waist above ground 76 cm CONFIGURING YOUR UNIT You can configure your unit using a cutting head for grass and light weeds, or a weed blade for cutting grass, weeds, and brush up to 1 cm in diameter.
  • Page 8 Shield fastening hardware other than the washers and nuts shown in the following illustrations. These parts must be provided by McCulloch and installed as shown below. Failure to use proper parts can cause the blade to fly off and seriously hurt you or others.

  • Page 9: Operation

    NOTE: 3. Place wire retainer over blade and insert To remove blade, insert screwdriver both ends of wire retainer back into clips. into aligned holes. Unthread the nut and remove parts. Be sure to store parts and instructions for Wire retainer Transport future use.

  • Page 10: Starting A Warm Engine

    Primer Bulb WARNING: Always stop unit and dis- connect spark plug before removing or instal- ling attachments. REMOVING TRIMMER ATTACH- MENT (OR OTHER OPTIONAL AT- TACHMENTS) CAUTION: When removing or installing at- tachments, place the unit on a flat surface for stability.

  • Page 11: Operating Position

    To stop engine: S Release the throttle trigger. S Move the ON/STOP switch to the STOP position. CUTTING METHODS WARNING: Use minimum speed and do not crowd the line when cutting around hard objects (rock, gravel, fence posts, etc.), Locking/Release which can damage the trimmer head, become Button in Primary Hole entangled in the line, or be thrown causing a...
  • Page 12 S WHEN BLADE THRUST OCCURS - - Scalping Blade Thrust can occur without warning if the blade snags, stalls, or binds. This is more likely to occur in areas where it is difficult to see the material being cut. By using the unit properly, the occurrence of blade thrust will be reduced and the operator will be less likely to lose control.

  • Page 13: Additional Safety Rules

    S As you move forward to the next area to cut, WARNING: be sure to maintain your balance and footing. The operator or others RECOMMENDED CUTTING POSITION must not try to clear away cut material with the 2 o’clock engine running or the blade turning to avoid serious injury.
  • Page 14 S Do not use a cutting blade that is bent, warped, cracked, broken or damaged in any other way. Have worn or damaged parts replaced by your authorized service dealer. S Always keep unit in front of your body. Keep all parts of your body away from the cutting blade.

  • Page 15: Maintenance

    S Do not operate the unit faster than the speed WARNING: needed to prune. Do not run the unit at high Inspect the area where speed when not pruning. the unit is to be used. Remove objects that S Always stop the unit when work is delayed or could be thrown or damage the unit.

  • Page 16: Service And Adjustments

    ON/STOP switch in the STOP position. 1. Remove and discard worn line before installing new line. 2. Use only 3 mm diameter McCulloch brand cut length line. 7. Correctly installed line will be the same 3. Insert one end of the line through the posi- length on both ends.

  • Page 17: Seasonal Storage

    Idle Speed Adjustment Idle Speed Screw Allow engine to idle. Adjust speed until engine runs without trimmer head moving or spinning (idle speed too fast) or engine stalling (idle speed too slow). S Turn idle speed screw clockwise to in- crease engine speed if engine stalls or dies.
  • Page 18 TROUBLESHOOTING TABLE WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE REMEDY Engine will not 1. ON/STOP switch in STOP 1. Move ON/STOP switch to ON start.

  • Page 19: Declaration Of Conformity

    We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46- -36- -146500, as authorised representative in the Community, declare that the brushcutter model McCulloch 2500CXL with serial numbers dating from 2009 and onwards (the year is clearly stated on the rating plate, followed by the serial number), comply with the requirements of the COUNCIL’S...

  • Page 20: Technical Data Sheet

    (standard deviation) of 1 dB(A). Note 3: Reported data for equivalent vibration level has a typical statistical dispersion (standard deviation) of 1 m/s Model 2500CXL (3/8 LH arbor shaft thread) Centre hole in blades/cutters, ∅ 25,4 mm Approved accessories Type Cutting attachment /guard, part.
