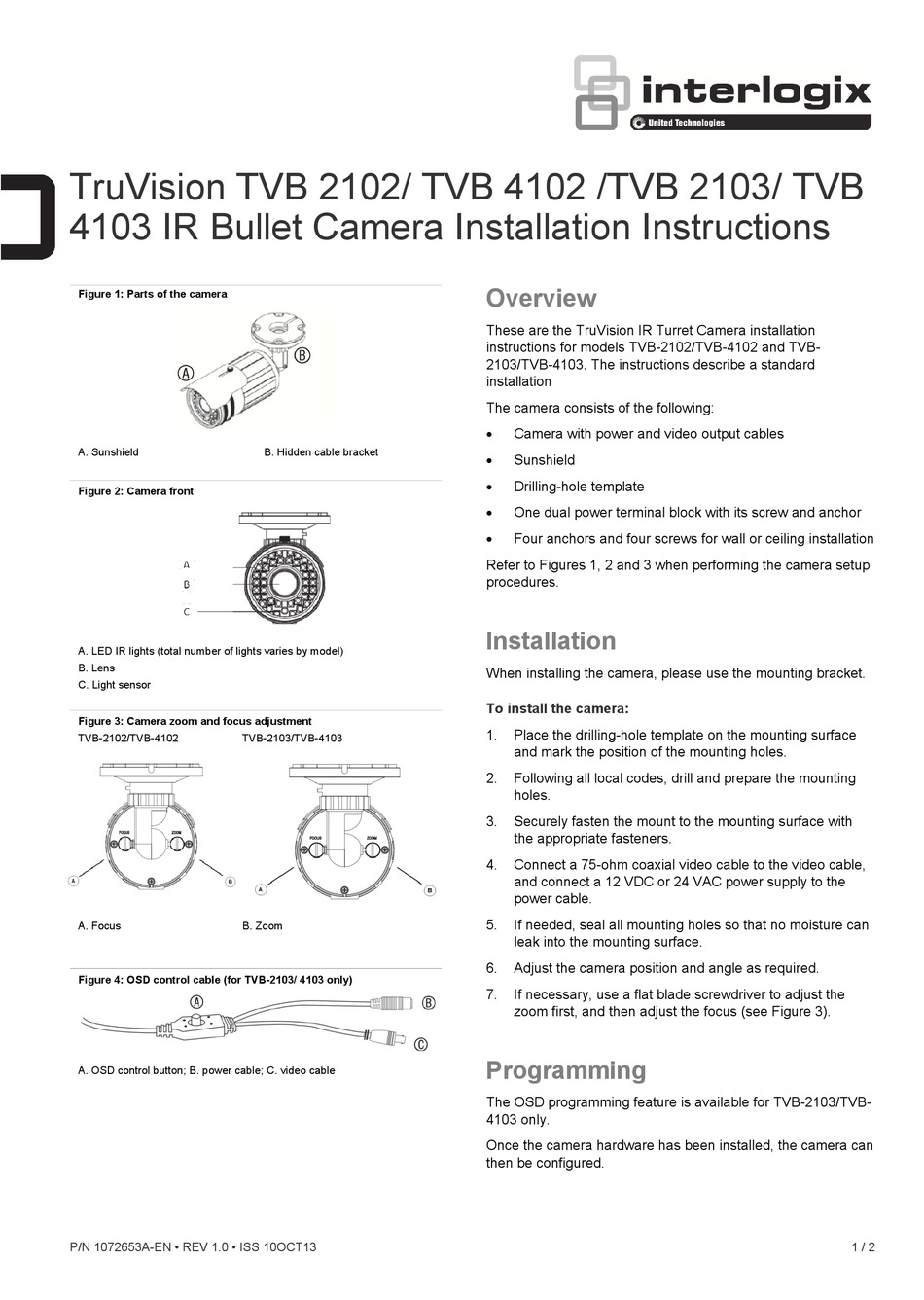

TruVision TVB 2102/ TVB 4102 /TVB 2103/ TVB
4103 IR Bullet Camera Installation Instructions

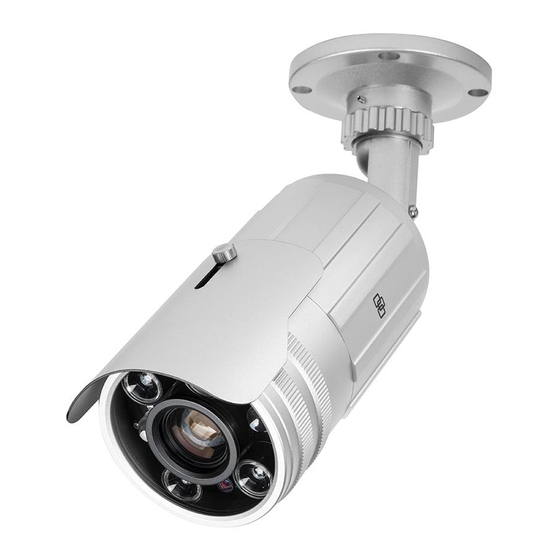

Figure 1: Parts of the camera
A. Sunshield
Figure 2: Camera front
A. LED IR lights (total number of lights varies by model)
B. Lens
C. Light sensor
Figure 3: Camera zoom and focus adjustment
TVB-2102/TVB-4102 TVB-2103/TVB-4103
A. Focus B. Zoom
Figure 4: OSD control cable (for TVB-2103/ 4103 only)
A. OSD control button; B. power cable; C. video cable
P/N 1072653A-EN • REV 1.0 • ISS 10OCT13
B. Hidden cable bracket
Overview
These are the TruVision IR Turret Camera installation
instructions for models TVB-2102/TVB-4102 and TVB-
2103/TVB-4103. The instructions describe a standard
installation
The camera consists of the following:

Camera with power and video output cables

Sunshield

Drilling-hole template

One dual power terminal block with its screw and anchor

Four anchors and four screws for wall or ceiling installation
Refer to Figures 1, 2 and 3 when performing the camera setup
procedures.
Installation
When installing the camera, please use the mounting bracket.
To install the camera:
1. Place the drilling-hole template on the mounting surface
and mark the position of the mounting holes.
2. Following all local codes, drill and prepare the mounting
holes.
3. Securely fasten the mount to the mounting surface with
the appropriate fasteners.
4. Connect a 75-ohm coaxial video cable to the video cable,
and connect a 12 VDC or 24 VAC power supply to the
power cable.
5. If needed, seal all mounting holes so that no moisture can
leak into the mounting surface.
6. Adjust the camera position and angle as required.
7. If necessary, use a flat blade screwdriver to adjust the
zoom first, and then adjust the focus (see Figure 3).
Programming
The OSD programming feature is available for TVB-2103/TVB-
4103 only.
Once the camera hardware has been installed, the camera can
then be configured.
