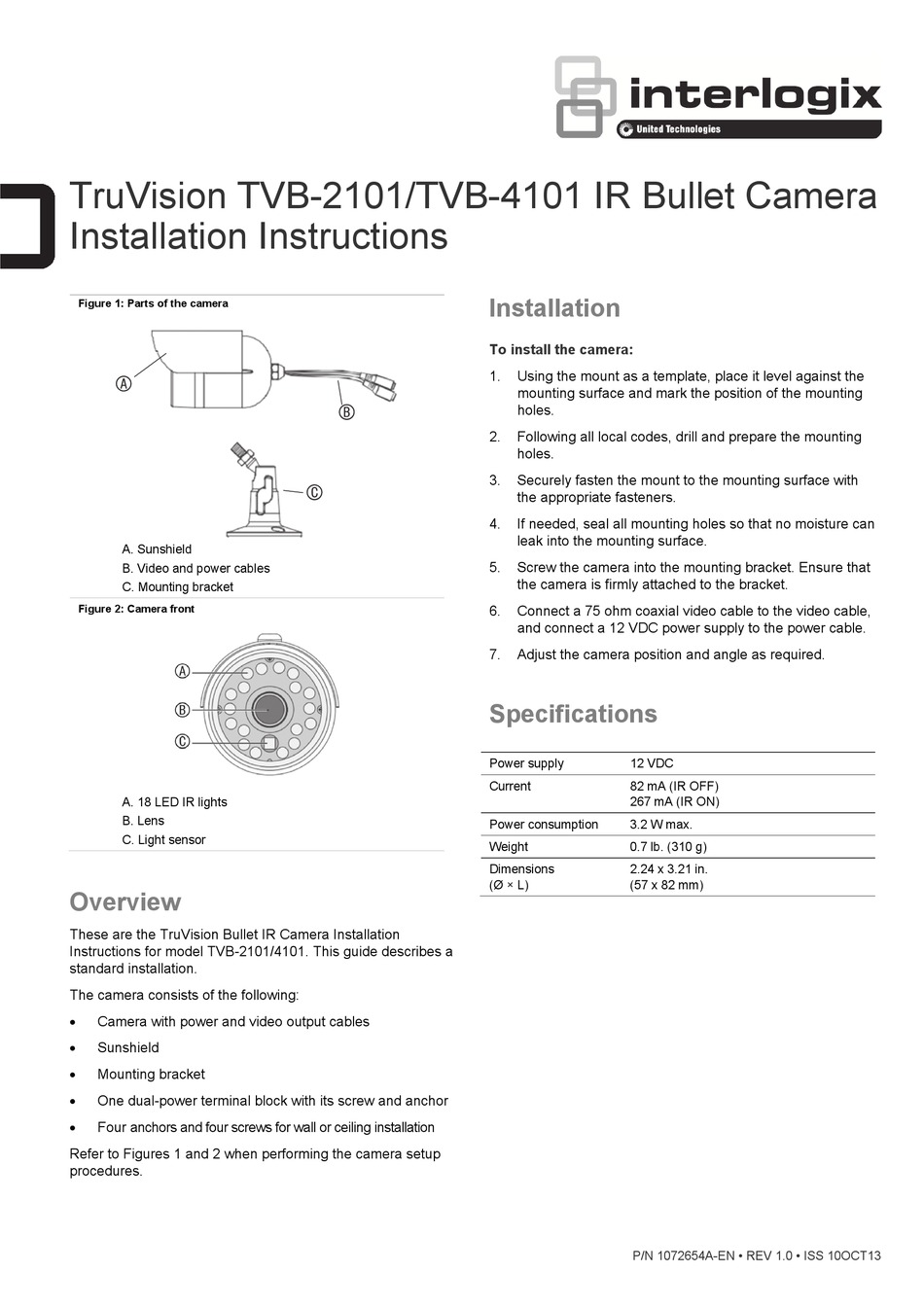

TruVision TVB-2101/TVB-4101 IR Bullet Camera

Installation Instructions

Figure 1: Parts of the camera
A. Sunshield
B. Video and power cables
C. Mounting bracket
Figure 2: Camera front
A. 18 LED IR lights
B. Lens
C. Light sensor
Overview
These are the TruVision Bullet IR Camera Installation
Instructions for model TVB-2101/4101. This guide describes a
standard installation.
The camera consists of the following:

Camera with power and video output cables

Sunshield

Mounting bracket

One dual-power terminal block with its screw and anchor

Four anchors and four screws for wall or ceiling installation
Refer to Figures 1 and 2 when performing the camera setup
procedures.
Installation
To install the camera:
1. Using the mount as a template, place it level against the
mounting surface and mark the position of the mounting
holes.
2. Following all local codes, drill and prepare the mounting
holes.
3. Securely fasten the mount to the mounting surface with
the appropriate fasteners.
4. If needed, seal all mounting holes so that no moisture can
leak into the mounting surface.
5. Screw the camera into the mounting bracket. Ensure that
the camera is firmly attached to the bracket.
6. Connect a 75 ohm coaxial video cable to the video cable,
and connect a 12 VDC power supply to the power cable.
7. Adjust the camera position and angle as required.

Specifications

Power supply 12 VDC
Current 82 mA (IR OFF)
267 mA (IR ON)
Power consumption 3.2 W max.
Weight 0.7 lb. (310 g)
Dimensions 2.24 x 3.21 in.
(Ø × L) (57 x 82 mm)
P/N 1072654A-EN • REV 1.0 • ISS 10OCT13
