NOTE:
Please read all
instructions carefully
before using this product
Table of Contents
MARCY CLASSIC
Safety Notice

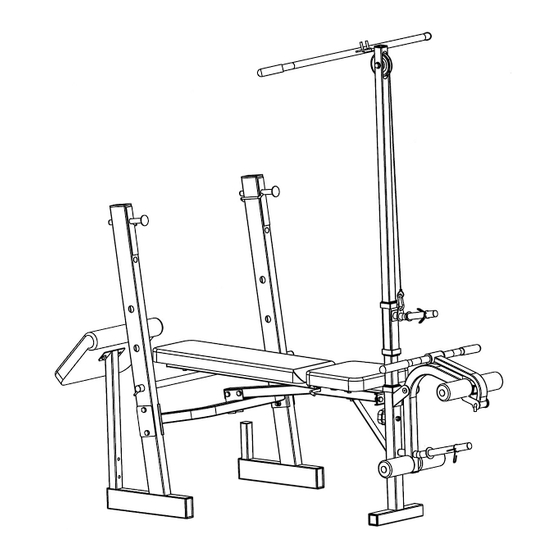

MCB-346 COMBO BENCH
Hardware Identifier
Assembly Instruction
Exploded Diagram
Parts List
Warranty
Ordering Parts
Model
MCB-346
Retain This
Manual for
Reference
06-29-06
OWNER'S
MANUAL
®
IMPEX
INC.
14777 Don Julian Rd., City of Industry, CA 91746
Tel: (800) 999-8899 Fax (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
Advertisement
Table of Contents
Related Manuals for Impex MARCY MCB-346
Summary of Contents for Impex MARCY MCB-346
- Page 1 NOTE: Please read all instructions carefully before using this product Table of Contents MARCY CLASSIC Safety Notice MCB-346 COMBO BENCH Hardware Identifier Assembly Instruction Exploded Diagram Parts List Warranty Ordering Parts Model MCB-346 Retain This Manual for Reference 06-29-06 OWNER'S MANUAL ®...
-
Page 2: Table Of Contents
EXPLODED DIAGRAM...10 PARTS LIST...….11 WARRANTY...….12 ORDERING PARTS...….12 BEFORE YOU BEGIN Thank you for selecting the MARCY CLASSIC MCB-346 COMBO BENCH ® by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. -
Page 3: Important Safety Notice
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. - Page 4 WARNING LABEL REPLACEMENT The Warning Label shown here has been placed on the Cross Brace. If the label is missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.
-
Page 5: Hardware Pack
HARDWARE PACK... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTION Tools required assembling the machine: Two Adjustable Wrenches and Allen Wrenches STEP 1 (SEE Diagram 1) A.) Connect the two Rear Upright Beams (#1) by a Cross Brace (#15) in the Mid-span. Secure them with two M10 x 2 3/8” Hex Bolts (#2), four Bracket (#7), and two M10 Aircraft Nuts (#4) on each end of the Cross Brace. - Page 7 STEP 2 (SEE DIAGRAM 2) A.) Connect the Front Stabilizer (#42) to the Main Seat Support (#52) and secure them with two M10 x ¾” Hex Bolts (#46), four DO NOT tighten the nuts and bolts yet. B.) Connect the Main Seat Support (#52) to the open bracket on the Cross Brace (#15). Secure it with two M10 x 2 3/8”...
- Page 8 STEP 3 (SEE DIAGRAM 3) A.) Attach the Leg Developer (#38) to the bracket on the Front Stabilizer (#42). Secure it with a Socket axle (#44) and Socket Screw (#45). Do not over tighten the Screw. Make sure the Leg Developer is able to swivel. B.) Insert two Foam Roll Tubes (#39) halfway through the holes on the Leg Developer.
- Page 9 STEP 4 (SEE DIAGRAM 4) A.) Attach the Backrest Supports (#16) onto both ends of the Pivot on the Main Seat Support (#52). Place the other end rest against the Backrest Adjustment Bar (#10). B.) Place the Backrest Board (#18) onto the Backrest Supports. Secure it with four M6 x 1 3/8”...
- Page 10 STEP 5 (SEE Diagram 5) A.) Attach the ball end of the Cable to the Pulley (#28). Place the Pulley in the open slot on the Lat Bar Frame (#31). Secure it with one M10 x 2 1/8” Hex Bolt (#32), two Bushings (#29), two ¾”...
-
Page 12: Parts List
PARTS LIST KEY NO. DESCRIPTION Rear Upright Beam M10 x 2 3/8” Hex Bolt M10 Aircraft Nut 1 5/8” x 3 1/8” End Cap 1 ¼” Square End Cap Bracket L-shaped Lock Pin Backrest Adjustment Bar Bar Catch Panel Right Bar Catch Left Bar Catch Cross Brace Backrest Support... -
Page 13: Warranty
No other warranty beyond that specifically set forth above is authorized by IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
