2
PANEL DESCRIPTION

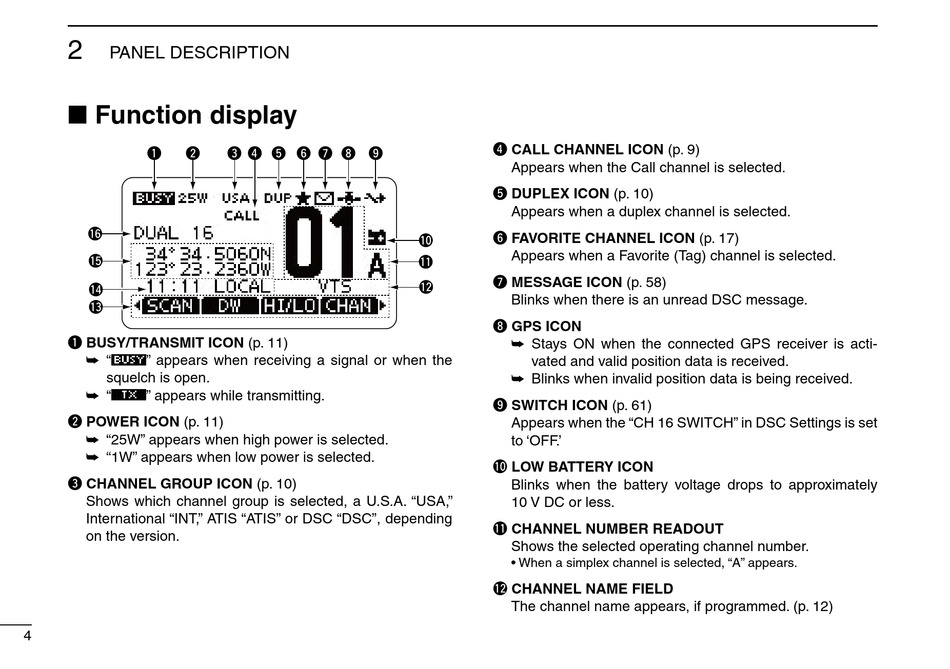

Function display

■
q w
!6
!5
!4
!3
q BUSY/TRANSMIT ICON (p. 11)
" " appears when receiving a signal or when the
➥
squelch is open.
" " appears while transmitting.
➥
w POWER ICON (p. 11)
"25W" appears when high power is selected.
➥
"1W" appears when low power is selected.
➥
e CHANNEL GROUP ICON (p. 10)
Shows which channel group is selected, a U.S.A. "USA,"
International "INT," ATIS "ATIS" or DSC "DSC", depending
on the version.
4
e r t y u i o
r CALL CHANNEL ICON (p. 9)
Appears when the Call channel is selected.
t DUPLEX ICON (p. 10)
Appears when a duplex channel is selected.
y FAVORITE CHANNEL ICON (p. 17)
!0
Appears when a Favorite (Tag) channel is selected.
!1
u MESSAGE ICON (p. 58)
!2
Blinks when there is an unread DSC message.
i GPS ICON
Stays ON when the connected GPS receiver is acti-
➥
vated and valid position data is received.
Blinks when invalid position data is being received.
➥
o SWITCH ICON (p. 61)
Appears when the "CH 16 SWITCH" in DSC Settings is set
to 'OFF.'
!0 LOW BATTERY ICON
Blinks when the battery voltage drops to approximately
10 V DC or less.
!1 CHANNEL NUMBER READOUT
Shows the selected operating channel number.
• When a simplex channel is selected, "A" appears.
!2 CHANNEL NAME FIELD
The channel name appears, if programmed. (p. 12)
