en | RADION receiver OP

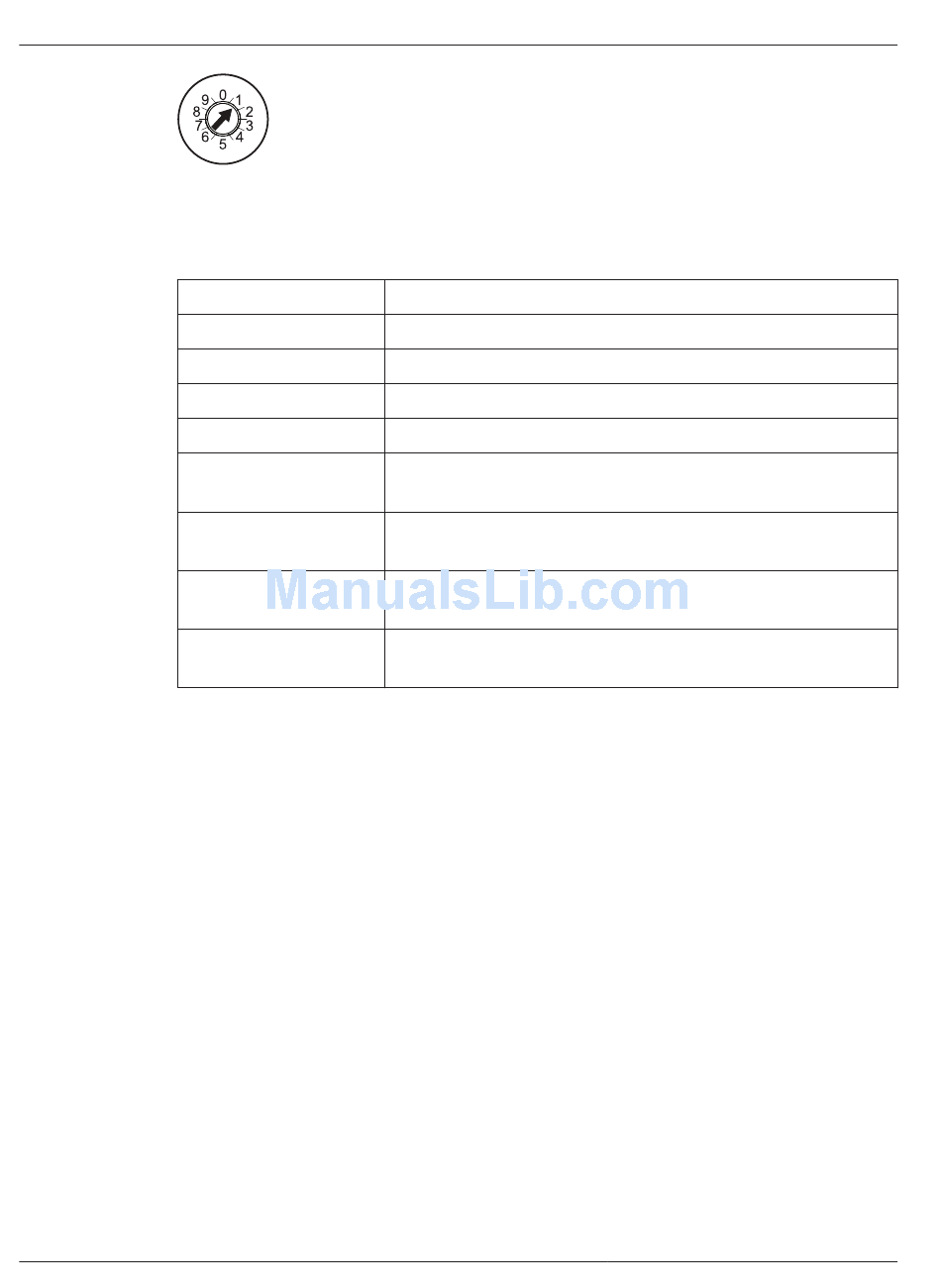

Figure 3.1: Address switch set to 1
Option Bus address settings
Depending on the supporting control panel, use the following table as a reference when
selecting the address setting switch for the compatible control panel.
Address switch setting
1
2
3
4
5
6
7
8
Table 3.2: Option Bus address settings
The receiver and control panel establish communication between each other when the
appropriate address switch is selected.
3.2.2
Base mounting installation
Some consideration and planning are required when locating a position to mount the base of
the receiver onto the desired surface. The base must be mounted in such a way that provides
plenty of accessible space to insert a flat-headed screwdriver, and remove the receiver cover
when maintenance and troubleshooting scenarios occur.
Because of the location of the opening mechanism on the side of the device, you will need
approximately 254 mm (10 in) of clearance on one side of the base to provide easy access to
the opening mechanism, and approximately 15 mm (0.6 in) of clearance on the opposite side
to compensate for the physical dimensions of the device cover. This should allow for adequate
space in which the device cover can be opened, and the cover removed, should the need
arise.
Other mounting considerations include;
–
–
3.2.3
Wiring considerations
02.2014 | 01 | F.01U.261.835
Function
RADION receiver 1
RADION receiver 2
Legacy Mode receiver 1
Legacy Mode receiver 2
Maintenance Mode, EN50131 Grade 2 (6dB attenuation), for
RADION receiver 1
Maintenance Mode, EN50131 Grade 2 (6dB attenuation), for
RADION receiver 2
Maintenance Mode, EN50131 Grade 2 (6dB attenuation), for
legacy receiver 1
Maintenance Mode, EN50131 Grade 2 (6dB attenuation), for
legacy receiver 2
Minimum clearance above the location to compensate for the vertical sliding movement
to attach or remove the device from the base is: >30 mm (1.2 in).
Minimum clearance below the location where the base is mounted: >23 mm (0.9 in).
Reference Guide
RADION receiver OP
Bosch Security Systems, Inc
