Note: The button functions are fixed and cannot be changed as per the
diagram below.
Panic Function: The fob can generate a panic on the Solution panel. Holding
down buttons 1 and 2 for a period of 2 seconds will cause a panic alarm.
AWAY Arm/Disarm
Output 1 Relay
Specifications
Receiver
Operating Voltage
Current Consumption
Relay Rating
Reverse Polarity protection
Operating Frequency
Receiver Type
Bandwidth
Antenna
Fob Storage
Transmitter (Fob)
Operating Voltage
Operating Frequency
Bandwidth
Tuning
Channels
Weight
Visual Indicator
STAY Arm/Disarm
Output 2 Relay
9 - 15VDC
9mA Standby
43mA Both relays operating
SPDT 1Amp Maximum carry @ 12VDC
Yes. Diode
433.92mhz
Superheterodyne AM ASK
250khz
165mm solid core insulated wire
EEPROM Maximum 21 Fobs
3V Lithium Battery CR2032
433.92mhz
260khz
SAW resonator locked
4
33g including battery
Blue LED
RE005EV2
RF Arming Kit for Solution
N2127
16
TM
Advertisement
Related Manuals for Bosch RE005EV2
Summary of Contents for Bosch RE005EV2

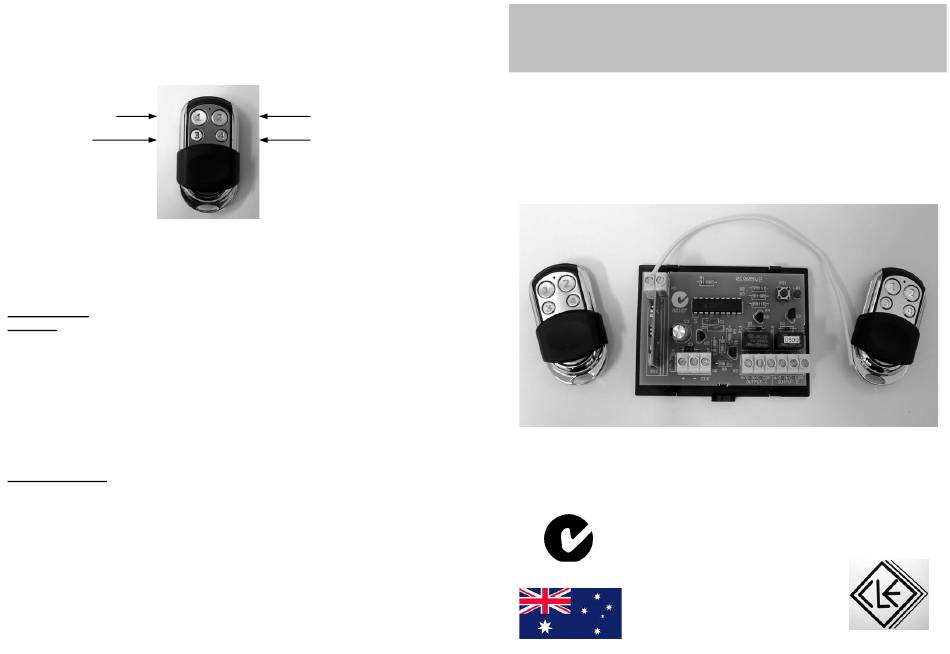

- Page 1 Note: The button functions are fixed and cannot be changed as per the RE005EV2 diagram below. RF Arming Kit for Solution Panic Function: The fob can generate a panic on the Solution panel. Holding down buttons 1 and 2 for a period of 2 seconds will cause a panic alarm.
- Page 2 Overview Installation and Set up The RE005EV2 RF Arming Kit is designed to provide a convenient ON/OFF Select a location to install the ABS bulkhead case of the receiver which Control for the Solution16 alarm panels. Provision is also made for the control of is non metallic.
