CYBEX 12231-999-4 C Owner's And Service Manual page 33

Cybex VR3 12231 Dip/Chin Assist Owner's Manual
F
G
B
(Both Sides)
E
B
B

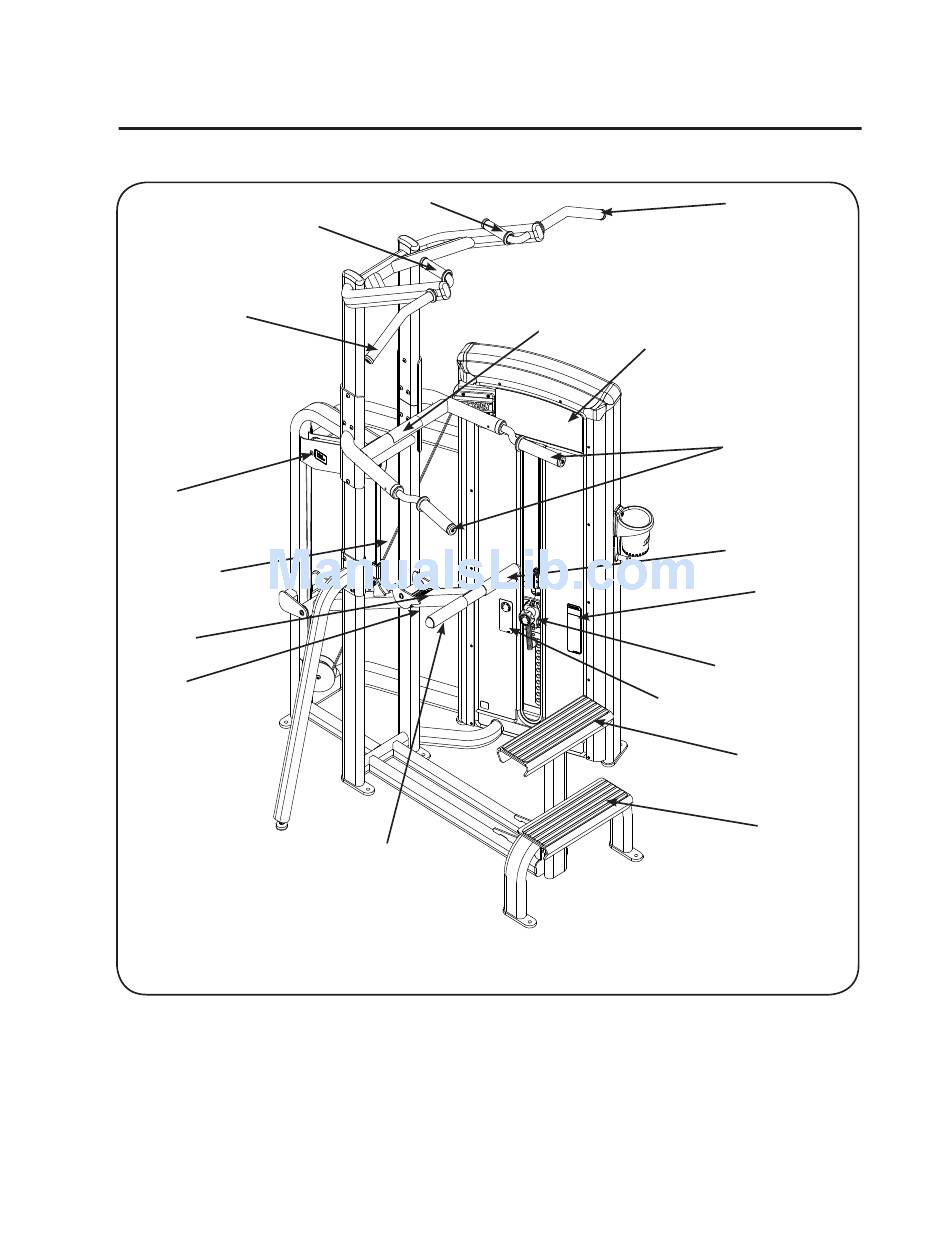

NOTE: See exploded-veiw of step assembly for location of J (serial number decal).
DESCRIPTION
A. Placard Decal .................... 12231-598
B. Caution Decal .................... 4000Y316
C. Warning Decal .................... 12230-352
D. Warning Label ................... 4605-381
E. Weight Stack Belt .............. GB000202
F. Grip ................................... 12230-355
Dip/Chin Assist
PRODUCT NO. 12231
F
C
I
DESCRIPTION
PART NO.
G. Grip.................................... 4605-528
H. Grip.................................... . 12230-353
I. Grip..................................... 11190-350
J. Serial Number Decal
K. Weight Selector Pin............ BH030207
L. Non Slip............................... 12230-337
M. Increment Weight Decal.......11000-407
G
A
H
I
D
K
M
L
L
PART NO.
Service
Page 6-3
