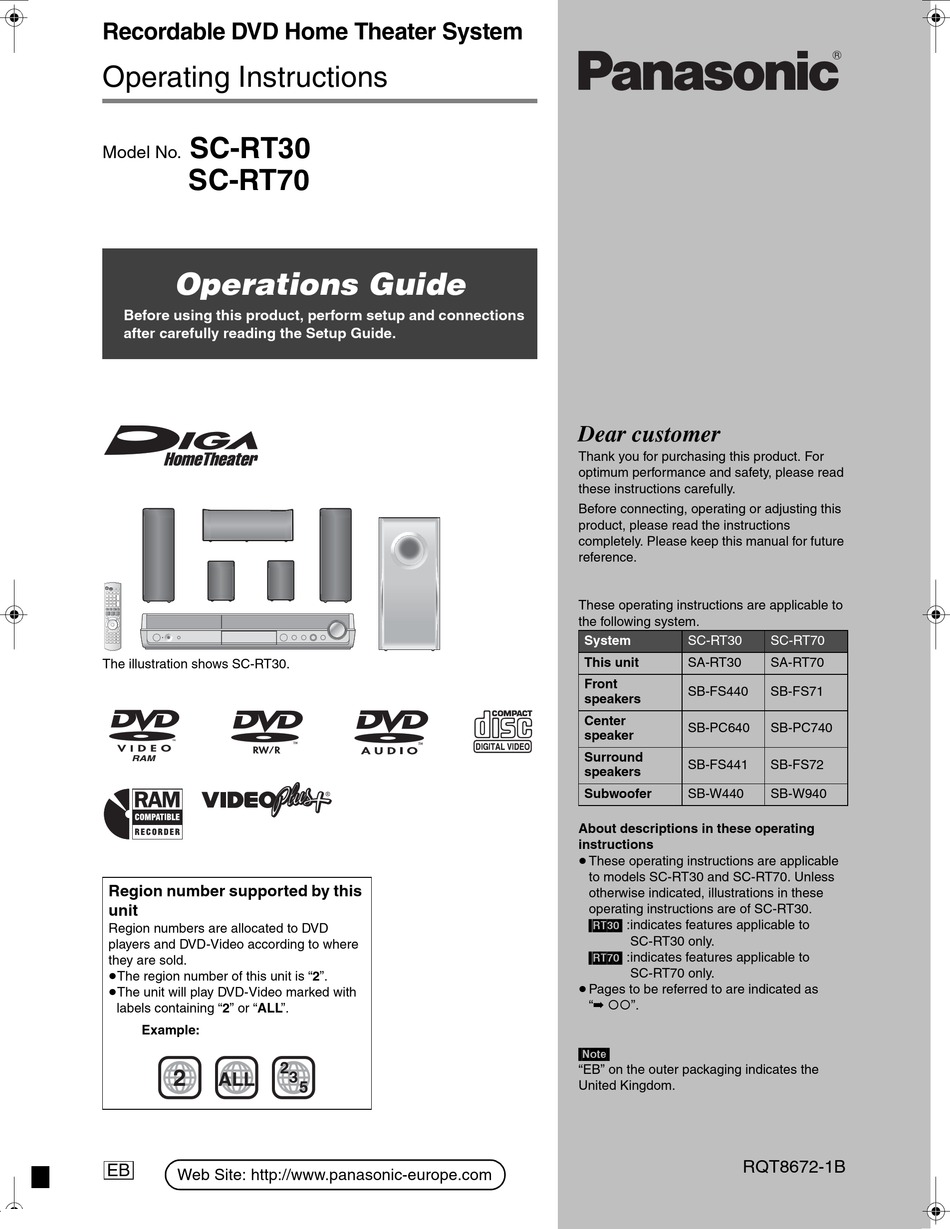

Recordable DVD Home Theater System
Operating Instructions
SC-RT30
Model No.
SC-RT70
Operations Guide
Before using this product, perform setup and connections
after carefully reading the Setup Guide.
The illustration shows SC-RT30.
Region number supported by this
unit
Region numbers are allocated to DVD
players and DVD-Video according to where
they are sold.
≥The region number of this unit is "2".
≥The unit will play DVD-Video marked with
labels containing "2" or "ALL".
Example:
2
ALL
EB
Web Site: http://www.panasonic-europe.com
2
3
5
Dear customer
Thank you for purchasing this product. For
optimum performance and safety, please read
these instructions carefully.
Before connecting, operating or adjusting this
product, please read the instructions
completely. Please keep this manual for future
reference.
These operating instructions are applicable to
the following system.
System
SC-RT30
This unit
SA-RT30
Front
SB-FS440
speakers
Center
SB-PC640
speaker
Surround
SB-FS441
speakers
Subwoofer
SB-W440
About descriptions in these operating
instructions
≥ These operating instructions are applicable
to models SC-RT30 and SC-RT70. Unless
otherwise indicated, illustrations in these
operating instructions are of SC-RT30.
[RT30] :indicates features applicable to
SC-RT30 only.
[RT70] :indicates features applicable to
SC-RT70 only.
≥ Pages to be referred to are indicated as
"➡
".
]Note]
"EB" on the outer packaging indicates the
United Kingdom.
RQT8672-1B
SC-RT70
SA-RT70
SB-FS71
SB-PC740
SB-FS72
SB-W940
