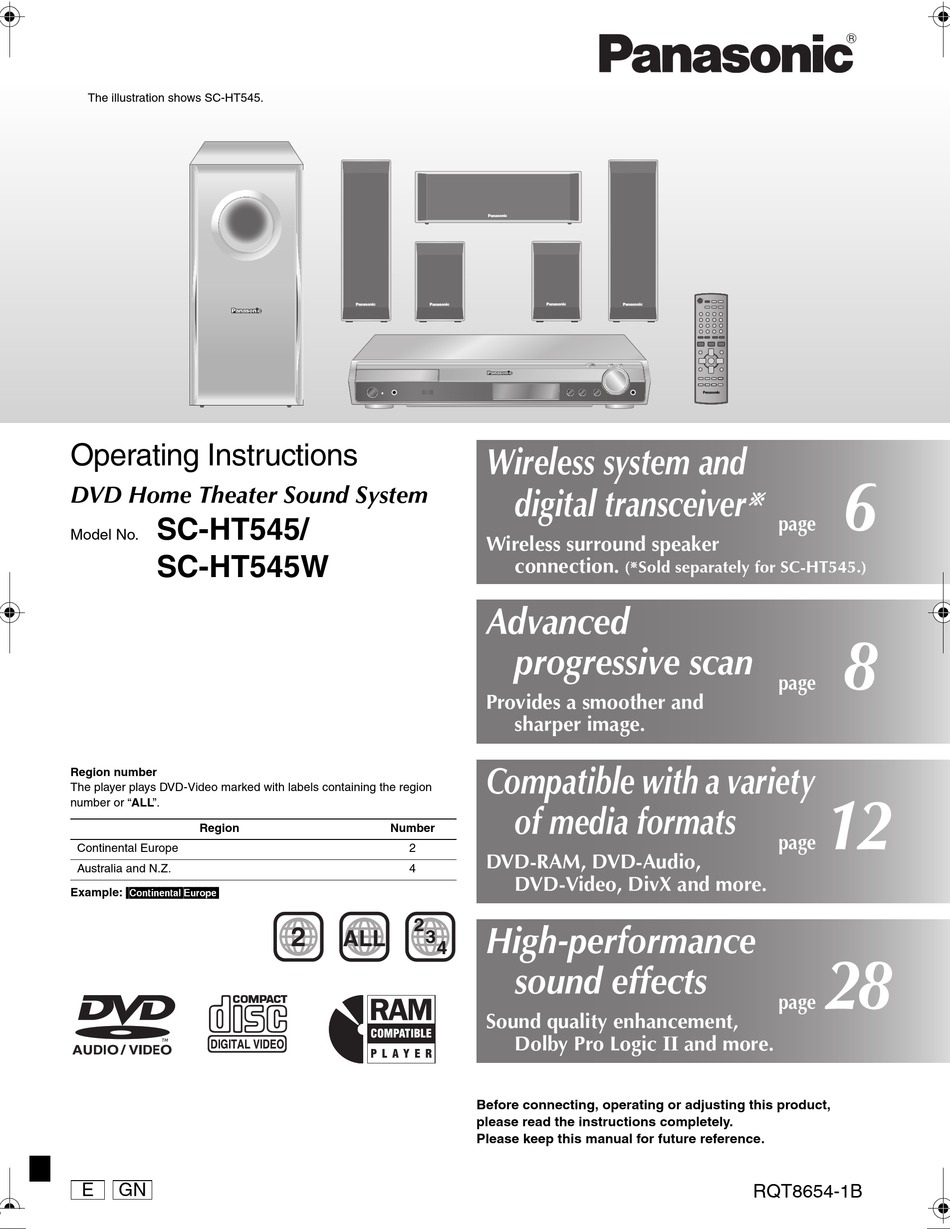

The illustration shows SC-HT545. Operating Instructions DVD Home Theater Sound System SC-HT545/ Model No. SC-HT545W Region number The player plays DVD-Video marked with labels containing the region number or “ALL”. Region Continental Europe Australia and N.Z. Example: [Continental[Europe] Wireless system and...
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. ≥ These operating instructions are applicable to models SC-HT545 and SC-HT545W for a variety of regions. ≥ Unless otherwise indicated, illustrations in these operating instructions are of SC-HT545.
Positioning the speakers STEP How you set up your speakers can affect the bass and the sound field. Note the following points: ≥ Place speakers on flat secure bases. ≥ Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick curtains. ≥...
(“ [W] ”) flashes on the main unit, and there is a brief interruption in audio coming from the surround speakers. This is the normal operation of the product working to assure the best possible performance of your Home Theater System.
Speaker connections STEP Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the speakers. 6 SUBWOOFER [HT545W] Connecting the surround speaker cables to the wireless system Wireless system 1 sheet of speaker cable stickers ≥...
Set your surround sound free! Optional Panasonic wireless accessory (e.g. SH-FX60) You can enjoy surround speaker sound wirelessly when you use the optional Panasonic wireless accessory (e.g. SH-FX60). For details, please refer to the operating instructions for the optional Panasonic wireless accessory.
≥ Set “Video Output Mode” to “480p” or “576p”, and then follow the instructions on the menu screen (➜ page 21, Picture Menu). [Continental]Europe] ≥ Panasonic televisions with 625 (576)/50i·50p, 525 (480)/60i·60p input terminals are progressive compatible. Consult the manufacturer if you have another brand of television.
Select “S-Video/YPbPr” or “RGB/No Output” from QUICK SETUP (➜ page 10). This connection will also enable you to play audio from your television through your home theater system. Refer to “Operating other equipment” (➜ page 31). Television...
Preparing the remote control STEP Remote control Insert so the poles (i and j) match those in the remote control. R6/LR6, AA Performing QUICK SETUP STEP The QUICK SETUP screen assists you to make necessary settings. To display the picture from the main unit, turn on your television and change its video input mode (e.g. VIDEO 1, AV 1, etc.). ≥...
This indicator lights when the unit is connected to the AC mains supply. [HT545W] The illustration shows the wireless system for SC-HT545W. AC supply indicator [AC IN] This indicator lights when the unit is connected to the AC mains supply.
≥ [DVD-VR] Recorded with devices using Version 1.1 of the Video Recording Format (a unified video recording standard), such as DVD video recorders, DVD video cameras, personal computers, etc. ≥ [JPEG] Recorded with Panasonic SD multi cameras or DVD video recorders using the DCF (Design rule for Camera File system) Standard Version 1.0.
Glossary Decoder A decoder restores the coded audio signals on DVDs to normal. This is called decoding. DivX DivX is a popular media technology created by DivX, Inc. DivX media files contain highly compressed video with high visual quality that maintains a relatively small file size.
Basic play To display the picture from the main unit, turn on your television and change its video input mode (e.g. VIDEO 1, AV 1, etc.). ≥ To change your television’s video input mode, refer to its operating instructions. Using the main unit Turn the unit on.
If you are experiencing problems, refer to troubleshooting (➜ page 33 to 35). Using the remote control Numbered buttons CANCEL SKIP STOP PAUSE TOP MENU, DIRECT NAVIGATOR ENTER The position is memorized while “RESUME” is on the display. Stop ≥ Press [1 PLAY] to resume. ≥...
Convenient functions Numbered buttons CANCEL FUNCTIONS Displaying current playback condition Press [FUNCTIONS]. Each time you press the button: Main menu (➜ page 20) --------------------> Basics -------------------->Details ^---------------------- off (No on-screen display) ,------------------b ∫ Basics e.g. [DVD-V] Current playback number Title Playback condition Program Playback...
Playing data discs using navigation menus Numbered buttons STOP TOP MENU, DIRECT NAVIGATOR FUNCTIONS Playing data discs [WMA] [MP3] [JPEG] [MPEG4] [DivX] Selecting “Play as Data Disc” in Other Menu (➜ page 22) will be effective if the following functions are not available to play WMA, MP3, JPEG, MPEG4 or DivX video contents.
Playing data discs using navigation menus Selecting a track using CD text [CD] Titles appear with CD Text disc playback. Press [TOP MENU] or [MENU]. ≥ To exit the screen, press [TOP MENU] or [MENU]. e.g. CD text Press [3, 4] to select the track and press [ENTER]. ≥...
Page 19
≥ You can play MPEG4 data [conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system] recorded with Panasonic SD multi cameras or DVD video recorders with this unit. ≥ The recording date may differ from that of the actual date.
≥ On iR/iRW, a subtitle number may be shown for subtitles that are not displayed. ≥ [DVD-VR] “On” or “Off” appears only with discs that contain subtitle on/off information (Subtitle on/off information cannot be recorded using Panasonic DVD Recorders). [DVD-VR] To recall a marker recorded on DVD-Video recorders Press [3, 4] ➜...
Other Settings [DVD-A] (Motion picture part) [DVD-VR] [DVD-V] To change play speed – from “k0.6” to “k1.4” ≥ Press [1 PLAY] to return to normal play. ≥ After you change the speed – Dolby Pro Logic II and Sound Enhancement have Play Speed no effect.
Using on-screen menus Other Settings ∫ Audio Menu ➜ page 28, Enhancing the stereo sound: Dolby Pro Logic II Dolby Pro Logic II) To make the dialogue in movies easier to hear [DVD-V] (Dolby Digital, DTS, MPEG, 3-channel or higher, with the dialogue recorded in the Dialogue Enhancer center channel) [DivX] (Dolby Digital, 3-channel or higher, with...
Changing the player settings Numbered buttons SETUP Setup Disc Audio English Video Subtitle Automatic Audio Menus Display Advanced Disc Review Intro Mode Others Ratings Level 8 to select and press ENTER RETURN ≥ The settings remain intact even if you switch the unit to standby. ≥...
Page 24
Changing the player settings QUICK SETUP enables successive settings of the items in the shaded area. ∫ “Video” tab TV Aspect Choose the setting to suit your television and preference. TV Type Select to suit the type of television. Time Delay When connected with a Plasma display, adjust if you notice the audio is out of sync with the video.
Changing the delay time of the speakers (Effective when playing multi-channel audio) (Center and surround speakers only) For optimum listening with 5.1-channel sound, all the speakers, except for the subwoofer, should be the same distance from the seating position. If you have to place the center or surround speakers closer to the seating position, adjust the delay time to make up for the difference.
Using the radio Numbered buttons FUNCTIONS -TUNE MODE / -FM MODE Presetting stations automatically ain unit only Up to 15 stations can be set in each band, FM and AM. Press [SELECTOR] to select “FM” or “AM”. Press [-TUNE MODE] to select “MANUAL”. Each time you press the button: MANUAL()PRESET Press [X TUNING W] to tune to the lowest frequency (FM: 87.50, AM: 522).
RDS broadcasting [Continental]Europe\ The unit can display the text data transmitted by the radio data system (RDS) available in some areas. If the station you are listening to is transmitting RDS signals, “RDS” will light up on the display. When “FM” is selected Press [FUNCTIONS] to display the text data.
Using sound effects SUBWOOFER LEVEL CH SELECT, TEST [Note] ≥ The following sound effects may not be available or have no effect depending on the type of source, or when headphones are used. ≥ You may experience a reduction in sound quality when these sound effects are used with some sources.
[HT545] Enhancing the bass sound: H.BASS You can enhance low-frequency sound so that heavy bass sound can be heard clearly, even if the acoustics of your room are not optimal. The unit automatically selects the most suitable setting according to the type of playing source.
To prevent hearing damage, avoid listening for prolonged periods of time. Using the Music Port The Music Port allows you to connect and enjoy music from an external device (e.g. MP3 player) through your home theater system. Preparation To avoid distorted sound, make sure that any equalizer function of your...
Operating other equipment TV/AV Operating the television You can use the remote control to operate a Panasonic television. Connect your equipment referring to “Cable TV box or video cassette recorder connection” (➜ page 9). [Note] The remote control may not work properly with some models.
Safety precautions Placement Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life. Do not place heavy items on the unit. Voltage Do not use high voltage power sources.
Troubleshooting guide Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the table do not solve the problem, consult your dealer for instructions. Power ≥ Insert the AC mains lead securely. No power.
Page 34
Troubleshooting guide Marker Cannot add markers. A-B repeat Point B is automatically set. Sound abnormal or improper Sound is distorted. Effects do not work. Humming is heard during play. No sound. Menus The Setup menu cannot be accessed. Picture abnormal or unviewable The picture on the television is not displayed correctly or disappears.
Page 35
Listening to the radio ≥ Adjust the position of the FM or AM antenna. Distorted sound or noise is heard. ≥ Use an outdoor antenna. “ST” flickers or does not light. ≥ Turn the television off or move it away from the unit. A beat sound is heard.
Picture resolution: between 160k120 and 6144k4096 pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4). Extremely long and narrow pictures may not be displayed. MPEG4 data recorded with Panasonic SD multi cameras or DVD video recorders Conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system...
SPEAKER SECTION [HT545] [Front\speakers\SB-FS440] Type 1 way, 1 speaker system (Bass reflex) Speaker unit(s) Full range Input power (IEC) Output sound pressure Frequency range Dimensions (WtHtD) Mass [HT545] [Surround\speakers\SB-FS441] Type 1 way, 1 speaker system (Bass reflex) Speaker unit(s) Full range Input power (IEC) Output sound pressure Frequency range...
Page 38
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. “DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Page 39
[Continental[Europe] DIGITAL TRANSCEIVER SH-FX80T WIRELESS SYSTEM SE-FX60 1177 OPERATING AT 2403MHz TO 2425MHz...
Page 40
Laite tulee asettaa lähelle verkkopistorasiaa ja pistokkeen täytyy olla sellaisessa asennossa, että siihen on helppo tarttua ongelman sattuessa. Matsushita Electric Industrial Co., Ltd. Web Site: http://panasonic.net -If you see this symbol- Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)
