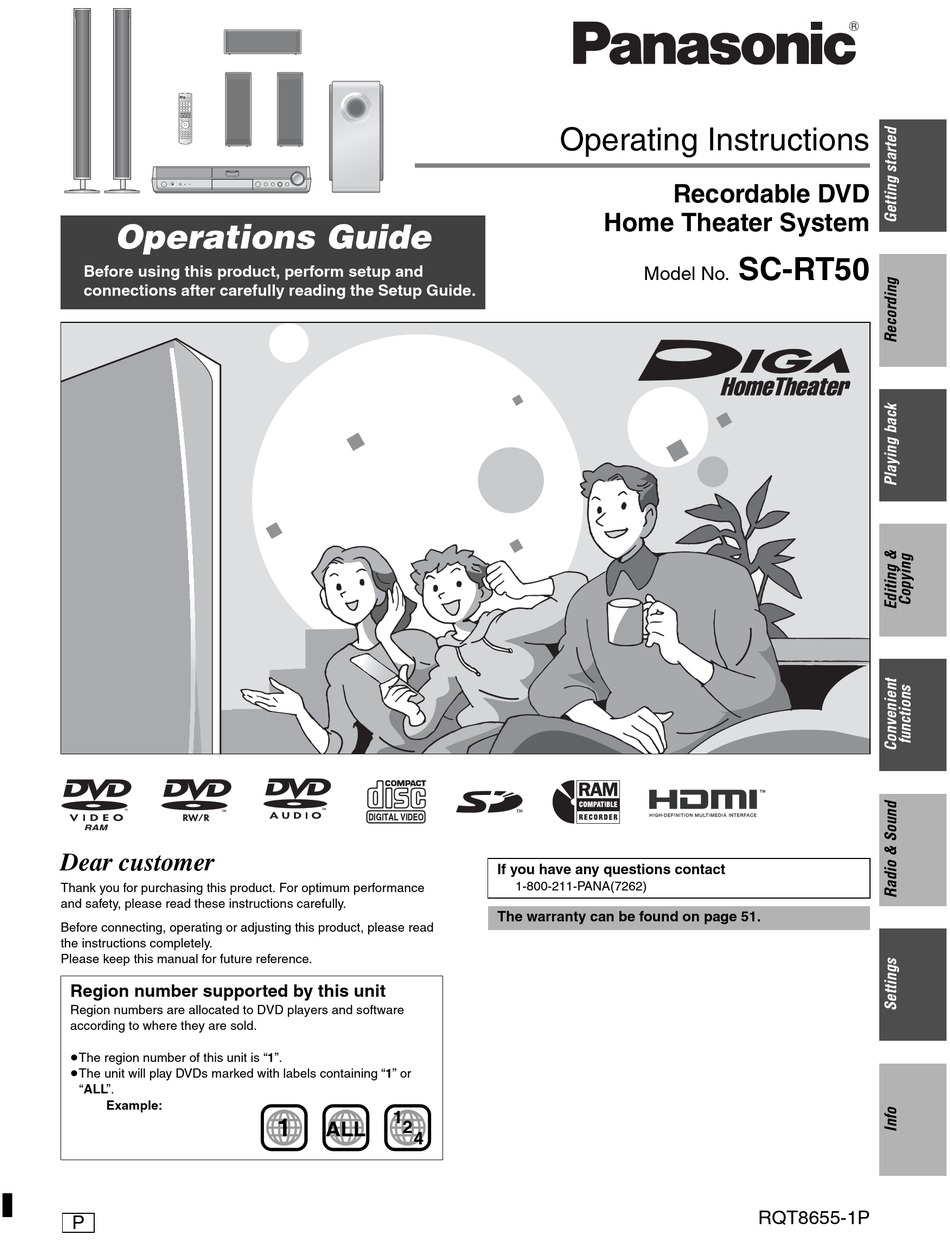

Operations Guide
Before using this product, perform setup and
connections after carefully reading the Setup Guide.
Dear customer
Thank you for purchasing this product. For optimum performance
and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read
the instructions completely.
Please keep this manual for future reference.
Region number supported by this unit
Region numbers are allocated to DVD players and software
according to where they are sold.
The region number of this unit is "1".
The unit will play DVDs marked with labels containing "1" or
"ALL".
Example:
P
1
1
2
ALL
4
Operating Instructions
Recordable DVD
Home Theater System
Model No.
If you have any questions contact
1-800-211-PANA(7262)
The warranty can be found on page 51.
SC-RT50
RQT8655-1P
Advertisement
Table of Contents
Related Manuals for Panasonic SC-RT50
Summary of Contents for Panasonic SC-RT50
-
Page 1: Operating Instructions
The region number of this unit is “1”. The unit will play DVDs marked with labels containing “1” or “ALL”. Example: Operating Instructions If you have any questions contact 1-800-211-PANA(7262) The warranty can be found on page 51. Recordable DVD Home Theater System SC-RT50 Model No. RQT8655-1P... -
Page 2: Important Safety Instructions
(2) this device must accept any interference received, including interference that may cause undesired operation. Responsible Party: Panasonic Corporation of North America One Panasonic Way Secaucus, NJ 07094 Telephone No.: 1-800-211-7262 The socket outlet shall be installed near the equipment and easily accessible. -
Page 3: Table Of Contents
Table of contents Getting started IMPORTANT SAFETY INSTRUCTIONS ....2 Accessories/The remote control information ..4 Control reference guide ......5 Disc and card information . -
Page 4: Accessories/The Remote Control Information
Store in a cool, dark place. Remote control signal sensor CENTER FRONT SURROUND FRONT SURROUND CENTER WOOFER FRONT SURROUND FRONT SURROUND WOOFER 7 m (23 feet) directly in front of the unit SC-RT50 SA-RT50 SB-FS940 SB-PC940 SB-FS941 SB-W940 R6/LR6, AA... -
Page 5: Control Reference Guide
This indicator lights up when a card is inserted. Scheduled recording indicator (➡ page 14) DTS indicator (➡ page 36) This lights up when optional Panasonic wireless accessories are plugged in (➡ page 41). H.BASS indicator (➡ page 35) MIX2CH indicator (➡ page 36) Dolby Digital indicator (➡... -
Page 6: Disc And Card Information
You may not be able to use +R recorded on this unit in another Panasonic DVD recorder and vice versa. Once the disc is finalized, however, it can be played in the other unit. -
Page 7: Discs That Cannot Be Played
This unit supports SD Memory Cards formatted in FAT 12 system and FAT 16 system based on SD Memory Card Specifications. We recommend using a Panasonic SD card. * Folders can be created on other equipment. However, these folders cannot be selected as a copying destination. -
Page 8: Inserting/Removing Sd Card
Inserting/Removing SD card When the card indicator (“SD”) on the unit’s display is flashing, the card is being read from or written to. Do not turn off the unit or remove the card. Such action may result in malfunction or loss of the card’s contents. Inserting foreign objects can cause a malfunction. -
Page 9: Control With Hdmi (Hdavi Control)
What is HDAVI Control? HDAVI Control is a convenient function that offers linked operation of this unit and Panasonic TV (VIERA) under HDAVI Control. You can use this function by connecting the equipment with the HDMI cable. See the operating instructions for connected equipment for operational details. -
Page 10: Recording
Important notes for recording [RAM] Both main and secondary audio can be recorded You can change the audio during playback. (➡ page 17, Changing audio) Recording of MTS broadcasting If you record from external equipment –Select both “Main” and “SAP” on the external [RAM] Recorded in 16:9 aspect (Widescreen) Recording of... -
Page 11: Recording Modes And Approximate Recording Times
Recording modes and approximate recording times Depending on the content being recorded, the recording times may become shorter than indicated. DVD-RAM 9.4 GB Recording Mode 4.7 GB (Double- sided* XP (High picture 1 h. 2 h. quality) SP (Standard) 2 h. 4 h. -
Page 12: Recording Television Programs
Recording television programs Numbered buttons ■ DIRECT NAVIGATOR ENTER AUDIO SRD MUSIC [RAM] [-R] [-R]DL] [-RW‹V›] You can record up to 99 titles on one disc. [+R] [+R]DL] [+RW] You can record up to 49 titles on one disc. [SD] It is not possible to record onto a card. -
Page 13: To Specify A Time To Stop Recording-One Touch Recording
To specify a time to stop recording –One Touch Recording [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] During recording Press [ REC] to select the recording time. The unit’s display changes as shown below. OFF 0: 30 OFF 1: 00 OFF 1: 30 Counter (cancel) OFF 4: 00... -
Page 14: Scheduled Recording
Scheduled recording DRIVE SELECT Numbered buttons CANCEL ■ ENTER SUB MENU REC MODE SRD MUSIC [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] See also the notes “Important notes for recording” (➡ page 10). You can enter up to 16 programs up to a month in advance. (Each daily or weekly program is counted as one program.) Preparation Turn on the television and select the appropriate video input to suit... -
Page 15: Cancel Scheduled Recording That Has Already Begun
Cancel scheduled recording that has already begun When the unit is on Press [ ]. The confirmation screen appears. Press [ , ] to select “Stop recording” and press [ENTER]. Recording stops and the scheduled recording is cancelled. (Daily and weekly schedules remain and scheduled recording will start as programmed.) Release program from recording standby... -
Page 16: Playing Discs
Playing discs Numbered buttons ■ TIME SLIP DIRECT NAVIGATOR SUB MENU AUDIO SRD MUSIC If the recorded title is stretched vertically If recorded to a DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL or +RW disc, 16:9 aspect images will record as 4:3 images. -
Page 17: Operations During Play
Operations during play Press [ ]. The stopped position is memorized. Resume play function Press [ ] (PLAY) to restart from this position. Stop [VCD] Depending on the disc, resume play function may not be effective. The stopped position is cleared when: –You press [ ] several times. -
Page 18: Using Menus To Play Still Pictures (Jpeg/Tiff)
Using menus to play still pictures (JPEG/TIFF) DRIVE SELECT Numbered buttons ■ DIRECT NAVIGATOR SUB MENU SRD MUSIC [RAM] [SD] You can use SD Memory Cards with capacities from 8 MB to 2 GB (➡ page 7). [CD] You can play CD-R, CD-RW discs which contain still pictures (JPEG/TIFF) that have been recorded on a computer. -
Page 19: Useful Functions During Still Picture Play
Useful functions during still picture play You can display still pictures one by one with constant interval. [RAM] [SD] While the Album View screen is displayed Press [ , ] to select the album and press [ ] (PLAY). You can also start slideshow with the following steps. -
Page 20: Using Menus To Play Mp3
Using menus to play MP3 DRIVE SELECT Numbered buttons ■ DIRECT NAVIGATOR DISPLAY Regarding MP3 Compatible formats: ISO9660 level 1 or 2 (except for extended formats) and Joliet File format: MP3 Files must have the extension “.mp3” or “.MP3”. Maximum number of files (tracks) and folders (groups) recognizable: 999* files (tracks) and 99 folders (groups) (including the root folder) * Total number for all the MP3, JPEG and other type of files... -
Page 21: Using On-Screen Menus
Using on-screen menus Refer to control reference on page 20. Common procedures 1 Press [DISPLAY]. Disc Soundtrack Digital 2/0 ch Play Subtitle Video Audio channel Audio Other Menu Item Setting Depending on the condition of the unit (playing, stopped, etc.) and disc contents, there are some items that you cannot select or change. -
Page 22: Editing Titles/Chapters
Editing titles/chapters DRIVE SELECT DIRECT NAVIGATOR SUB MENU [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [-RW‹VR›] Title/Chapter Programs are recorded as a single title consisting of one chapter. Title Chapter Start [RAM] You can divide a title into multiple chapters. Each section between the division points becomes a chapter. -
Page 23: Title Operations
Title operations After performing steps 1–3 (➔ page 22) Press [ , Delete Title* Once deleted, the recorded contents are lost and cannot be restored. Make certain before proceeding. [RAM] [-R] [-R]DL] [-RW‹V›] [-R] [-R]DL] [+R] [+R]DL] The available recording space does not increase when you delete titles. [+R] [+R]DL] [+RW] [-RW‹V›] [+RW] Available recording space increases only when the last recorded title is deleted. -
Page 24: Creating, Editing And Playing Playlists
Creating, editing and playing playlists DRIVE SELECT SUB MENU You can arrange the chapters (➡ page 22) to create a playlist. Title Chapter Chapter Chapter Chapter Playlist Chapter Chapter Editing playlists doesn’t modify the recorded data. Playlists are not recorded separately so this doesn’t use much capacity. You cannot create or edit a playlist while recording. -
Page 25: Editing And Playing Playlists/Chapters
Editing and playing playlists/chapters [RAM] [-RW‹VR›] (Play only) While stopped Press [FUNCTIONS]. Press [ , ] to select “Other Functions” and press [ENTER]. Press [ , ] to select “Playlists” and press [ENTER]. Press [ , ] to select the playlist. -
Page 26: Editing Still Pictures
Editing still pictures DRIVE SELECT DIRECT NAVIGATOR SUB MENU SRD MUSIC [RAM] [SD] You can edit still pictures or albums. You can use SD Memory Cards with capacities from 8 MB to 2 GB (➡ page 7). You cannot edit still pictures recorded on CD-R/CD-RW. Preparation Press [THEATER] to switch the remote control to operate this unit. -
Page 27: Album And Picture Operations
Album and picture operations After performing steps 1–4 (➡ page 26) Press [ , Delete Album* Once deleted, the recorded contents are lost and cannot be restored. Make certain before proceeding. Delete Picture* When deleting an album, files other than still picture files inside the album will also be deleted. (This does [RAM] [SD] not apply to albums under the album concerned.) Album Name... -
Page 28: Copying Still Pictures
Copying still pictures DRIVE SELECT Numbered buttons SUB MENU SRD MUSIC [RAM] [SD] You can use SD Memory Cards with capacities from 8 MB to 2 GB (➡ page 7). You cannot copy still pictures recorded on CD-R/CD-RW. [SD] While stopped and SD card has been inserted, “SD Card Operations”... -
Page 29: Copying Settings
Copying settings After performing steps 1–3 (➡ page 28, “Copying using the copying list”) Press [ , Press [ , Press [ , Copying Direction [ENTER]. Press [ , The same drive as the copying source can be selected. Press [ ] to confirm. To register individual still pictures Press [ , [ENTER]. -
Page 30: Copying From A Video Cassette Recorder
Copying from a video cassette recorder DRIVE SELECT Numbered buttons CANCEL ■ SUB MENU e.g.: Connecting other video equipment to the IN2 or DV IN terminals You can also connect to the IN1 input terminals on the rear. Turn off the unit and other video equipment before connecting. This unit DV cable (IEEE 1394,... -
Page 31: Entering Text
Entering text Refer to the control reference on page 30. [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [SD] You can give names to recorded titles, etc. The maximum number of characters: [RAM] Title Playlist Album of still pictures Disc * Scheduled recording [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] Title Disc... -
Page 32: Dvd And Card Management
DVD and Card Management DRIVE SELECT ENTER Preparation Press [THEATER] to switch the remote control to operate this unit. Press [DRIVE SELECT] to select the DVD or SD drive. Insert a disc (➡ page 12) or card (➡ page 8). [RAM] [SD] Release protection. -
Page 33: Selecting Whether To Show The Top Menu First-Playback Will Start With
Selecting whether to show the Top Menu first–Playback will start with: [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] You can select whether to show the top menu after finalizing. Make selections before finalizing the disc. After performing steps 1–3 (➡ page 32) Press [ , ] to select “Playback will start with:”... -
Page 34: The Radio
The radio SURROUND MUSIC FM/AM Numbered buttons ENTER SRD ENH SFC/EQ C. FOCUS, SRD MUSIC FM MODE SRD MUSIC Preparation Turn off TV while using radio since noise may occur. Press [THEATER] to switch the remote control to operate this unit. Manual tuning Press [FM/AM] to select the “FM”... -
Page 35: Sound Effect
Sound effect Refer to control reference on page 34. The factory settings for the “H. Bass” (➡ below) and Subwoofer levels (➡ page 36) are optimized for 5.1 channel movie playback. If the bass seems too heavy during 2-channel disc playback, etc. change the settings. Changing the sound quality Using the built-in sound quality settings, you can create a 5.1 channel effect while using 2-channel audio. -
Page 36: Dolby Digital And Dts
Sound effect DRIVE SELECT ENTER SRD MUSIC CH SELECT Dolby Digital and DTS Dolby Digital and DTS are digital encoding systems used on DVD to carry surround sound. Both were originally developed for use in cinemas. This unit automatically recognizes and decodes these systems. Software encoded with Dolby Software encoded with DTS can Digital can be identified with... -
Page 37: Changing The Unit's Settings
Changing the unit’s settings THEATER DRIVE SELECT Numbered buttons ENTER SRD MUSIC Summary of settings The settings remain intact even if you switch the unit to standby. Tabs Menus Signal Source (RF IN) (Setup Guide ➡ page 13) Channel Set Channels Automatically (Setup Guide ➡ page 13) (Setup Guide ➡... - Page 38 Changing the unit’s settings Refer to control reference on page 37. Tabs Disc Settings for Playback Press [ENTER] to show the following settings. Ratings Set a ratings level to limit DVD-Video play. Follow the on-screen instructions. Enter a 4-digit password with the numbered buttons when the password screen is shown.
- Page 39 Tabs Menus Dynamic Range Compression [DVD-V] (Dolby Digital only) Audio Change the dynamic range for late night viewing. Multi-channel TV Sound ( MTS ) [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] Select whether to record the main or secondary audio program (SAP) when recording to a disc.
-
Page 40: Speaker Setting
Changing the unit’s settings Refer to control reference on page 37. Speaker Setting This setting is only reflected when playing multi-channel audio. There is no effect with two-channel audio. Changing the delay time (Center and surround speakers only) For optimum listening with 5.1-channel sound, all the speakers, except for the subwoofer, should be the same distance from the seating position. -
Page 41: Using Other Useful Functions
(not included) Press [MUSIC P.] to select “F MUSICP”. F MUSICP * Select “R MUSICP” if the optional Panasonic wireless accessory (e.g. SH-FX60) is set up with your home theater system. For details, please refer to its operating instructions. Adjust the external device volume to a... -
Page 42: Messages
Messages On the television Cannot finish recording The program was copy-protected. completely. The disc may be full. The maximum number of times you can record the program is exceeded. Cannot play. You inserted an incompatible disc (Discs recorded in PAL video, etc.). Cannot record on the disc. -
Page 43: Frequently Asked Questions
HDMI IN terminal. However it will take longer to startup when it is connected with the Which terminal should I connect with? HDMI IN terminal. Is my television progressive output All Panasonic televisions that have 480p input terminals are compatible. Consult the compatible? manufacturer if you have another brand of television. Disc... -
Page 44: Troubleshooting Guide
Ensure that the digital transceiver is fully inserted into the slot of the main unit. accessory) Operations do not work due to a poor-quality disc. (Try again using a Panasonic disc.) The unit freezes due to one of its safety devices being activated. (Press and hold [POWER /I] on the main unit to switch the unit to standby. - Page 45 Radio Noise is heard. This is being caused by weak signal reception. Sound is distorted. When listening to FM radio, try the following operations. “TUNED” is flashing or doesn’t –Adjust the position of the FM antenna. light. –Use an FM outdoor antenna. “ST”...
- Page 46 DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL and +RW recorded on this unit may not be recordable on other Panasonic DVD recorders. Audio from FM/AM broadcasts cannot be recorded.
- Page 47 Play Play fails to start even when Insert the disc correctly with the label facing up. [ ] (PLAY) is pressed. The disc is dirty. Play starts but then stops You tried to play a blank disc or unplayable disc on this unit. immediately.
-
Page 48: Product Service
The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference. MODEL NUMBER SC-RT50 SERIAL NUMBER RQT8655 User memo: DATE OF PURCHASE _________________________________... -
Page 49: Glossary
Glossary CPPM (Content Protection for Prerecorded Media) A copy protection system used for DVD-Audio files. This unit supports CPPM. CPRM (Content Protection for Recordable Media) CPRM is technology used to protect broadcasts that are allowed to be recorded only once. Such broadcasts can be recorded only with CPRM compatible recorders and discs. -
Page 50: Specifications
Specifications AMPLIFIER SECTION RMS Output Power: Dolby Digital Mode 1 kHz, 10 % total harmonic distortion Front: Center: Surround: 100 Hz, 10 % total harmonic distortion Subwoofer: Total RMS Dolby Digital mode power: FTC Output Power: Dolby Digital Mode 120 Hz–20 kHz, 1.0 % total harmonic distortion Front: Center: Surround:... -
Page 51: Limited Warranty
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST. For hearing or speech impaired TTY users, TTY : 1-877-833-8855 Accessory Purchases Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://www.pasc.panasonic.com or, send your request by E-mail to: npcparts@us.panasonic.com... -
Page 52: Index
