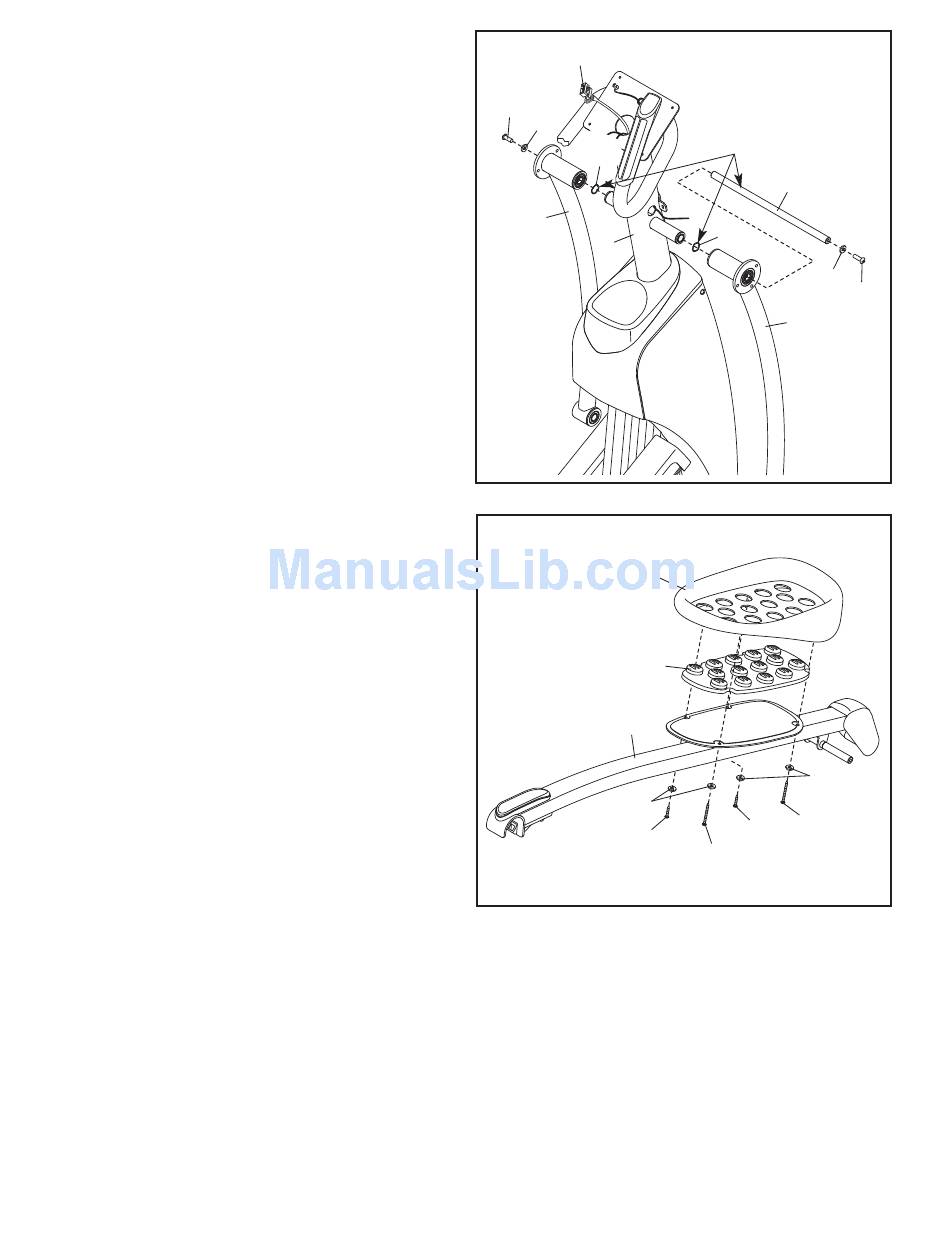

4. Apply a generous amount of the included
grease to the Upright Axle (48) and to two
Wave Washers (118).
Tip: Avoid damaging the Wire Harness (60).
Insert the Upright Axle (48) through the Upright
(5) and center it. Slide a Wave Washer (118)
onto each side of the Upright Axle.
Next, identify the Right and Left Upper Body
Legs (6, 7), which are marked with "Right" and
"Left" stickers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto the right and left sides of the Upright Axle
(48).
Tighten an M8 x 16mm Screw (102) and an M8
Washer (95) into each end of the Upright Axle
(48).
5. Identify the Right Pedal (14), the Right Gel Pad

(55), and the Right Pedal Arm (12), which are

marked with "Right" stickers, and orient them as

shown.
Set the Right Gel Pad (55) on the Right Pedal
Arm (12). Then, set the Right Pedal (14) on the
Right Gel Pad.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with two M6 x 50mm Screws (62), two
M6 x 12mm Screws (111), and four M6
Washers (112).
Attach the Left Pedal (not shown) and the
Left Gel Pad (not shown) to the Left Pedal
Arm (not shown) in the same way.
4
60
102
95
118
7
5
5
14
55
12
112
111
8
Avoid damaging the
Wire Harness (60)
Grease
48
118
95
102
6
112
62
111
62
