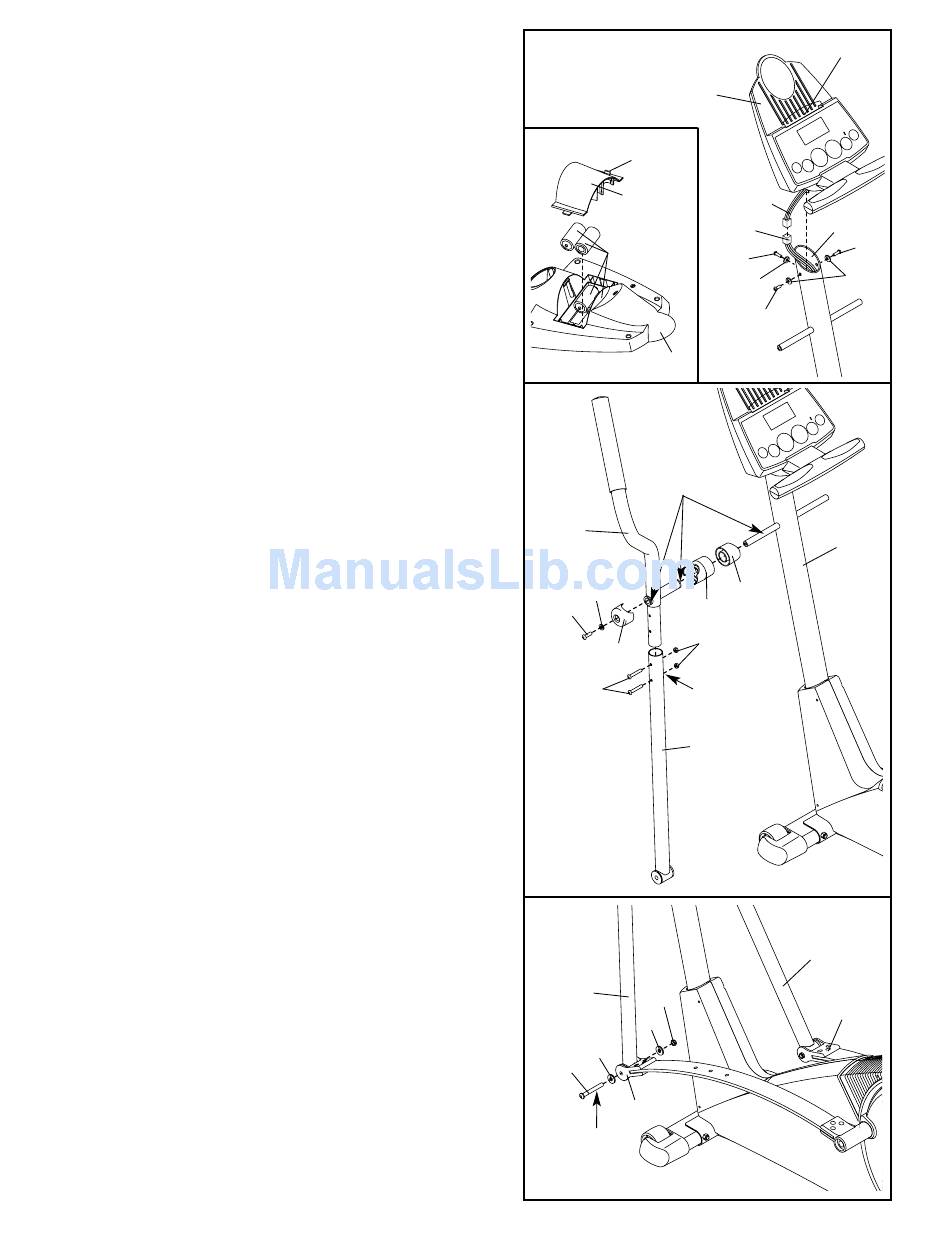

5. The Console (5) requires four 1.5V "D" batteries; alka-
line batteries are recommended. Refer to the inset
drawing. Press the tab on the battery cover, and lift off
the battery cover. Insert four batteries into the battery
compartment. Make sure that the batteries are
turned as shown by the diagram in the battery
compartment. Reattach the battery cover.
While another person holds the Console (5) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (86). Insert the
excess wire harness into the Upright (2). Next, attach
the Console to the Upright with three M10 x 27mm
Screws (71) and three M10 Split Washers (70). Be
careful to avoid pinching the wire harnesses.
Snap the bookrack onto the Console (5) in the indicated

location.

6. Identify the Left Handlebar (9), which is marked with a

sticker. Insert the Left Handlebar into one of the

Handlebar Legs (79); make sure that the Handlebar

Leg is turned so the hexagonal holes are on the

indicated side. Attach the Left Handlebar to the
Handlebar Leg with two M8 x 45mm Button Bolts (50)
and two M8 Nylon Locknuts (46). Make sure that the
Nylon Locknuts are inside of the hexagonal holes.
Do not fully tighten the Button Bolts yet.
Apply a generous amount of the included grease to the
left axle on the Upright (2) and inside of the two
Handlebar Bushings (24) in the Left Handlebar (9).
Carefully slide an Upright Spacer (26), a Handlebar
Spacer (25), the Left Handlebar (9), and a Handlebar
Cap (23) onto the left axle on the Upright (2) as shown.
Slide an M10.3 Black Washer (53) onto an M8 x 19mm
Button Screw (22), and tighten the Button Screw into the
axle.
Attach the Right Handlebar and the other Handlebar Leg
(not shown) in the same way.
7. Hold the lower end of the left Handlebar Leg (79) inside
of the left Front Spring Bracket (17). Apply a generous
amount of grease to an M10 x 78mm Button Bolt (27).
Attach the left Handlebar Leg to the left Front Spring
Bracket (17) with the Button Bolt, two M10 Washers
(38), and an M10 Nylon Locknut (29). Do not over-
tighten the Nylon Locknut; the left Handlebar Leg
must be able to pivot freely.
Attach the right Handlebar Leg (79) to the right Front
Spring Bracket (17) in the same way.
Refer to step 6. Tighten the M8 x 45mm Button Bolts
(50) in the Handlebar Legs (79). Refer to step 3.
Tighten the M10 x 88mm Button Bolt (63).
5
Tab
Battery
Cover
Batteries
6
9
53
22
23
50
7
79
38
38
27
17
Grease
6
Bookrack
5
Wire
Harness
86
71
70
71
5
Grease
26
25
46
Hexagonal
Holes
79
79
29
2
71
70
2
17
