Heat Exchanger Removal

1. Shut water, gas and electricity off, close valves
and relieve pressure, then remove relief valve.
Remove side inspection panels.
2. Remove the (8) top jacket holding screws.
Remove the jacket top.
3. Remove the screws holding down the flue collec-
tor. Remove the flue collector.
4. Remove upper in/out access panel.
5. Disconnect all electrical wiring from in/out header.
6. Remove temperature sensor from in/out header.
7. Disconnect flange nuts on In/Out header.
8. Lift heat exchanger straight up using caution not to
damage refractory.
9. Reverse above procedure to reinstall.

Tube Cleaning Procedure

Establish a regular inspection schedule, the frequency
depending on the local water conditions and the sever-
ity of service. Do not let the tubes clog up solidly.
NOTE: Please remove heat exchanger from heater
prior to reaming or removing debris.
Clean out deposits over 1/16" (0.16cm) in thickness.
Use the Tube Cleaning Kit #052871F to ream the
tubes as necessary. After reaming, mount the wire
brush in place of the auger and clean out debris
remaining in the tubes.
Another method is to remove the heat exchanger,
ream tubes and immerse heat exchanger in non-inhib-
ited de-scale solvent for severe scale build-up.
Extension Pieces (2)

De-sooting Procedure

CAUTION: Soot may be combustible. Wet sooted
surfaces completely prior to cleaning. Do not use
steel wire brush.
Soot will clog areas between fins and cause eventual
tube failure. Any sign of soot at the base of the burn-
ers or around the outer jacket indicates a need for
cleaning.
1. Remove top and flue collector from cabinet.
2. Remove burner tray.
3. Remove heat exchanger from the heater and
wash with a garden hose, making sure soot is
removed from spaces between fins.
4. Reverse above procedure to reinstall.
NOTE: In extreme cases it may be necessary to do
high-pressure cleaning at a local car wash. DO NOT
WIRE BRUSH.
Auger with Carbide Tip

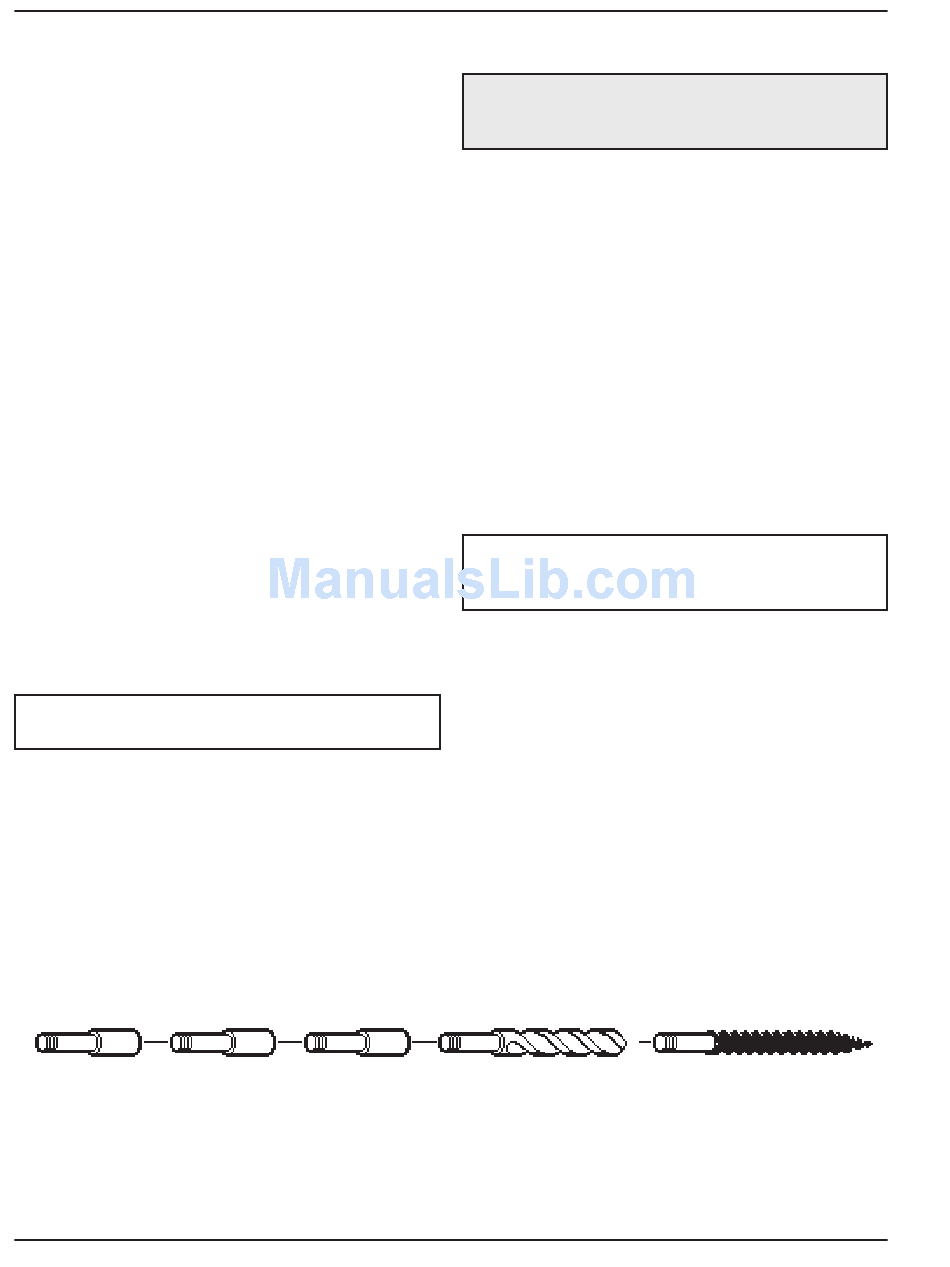

Fig. 30: Tube Cleaning Kit
30
Wire Brush
