ASSEMBLY

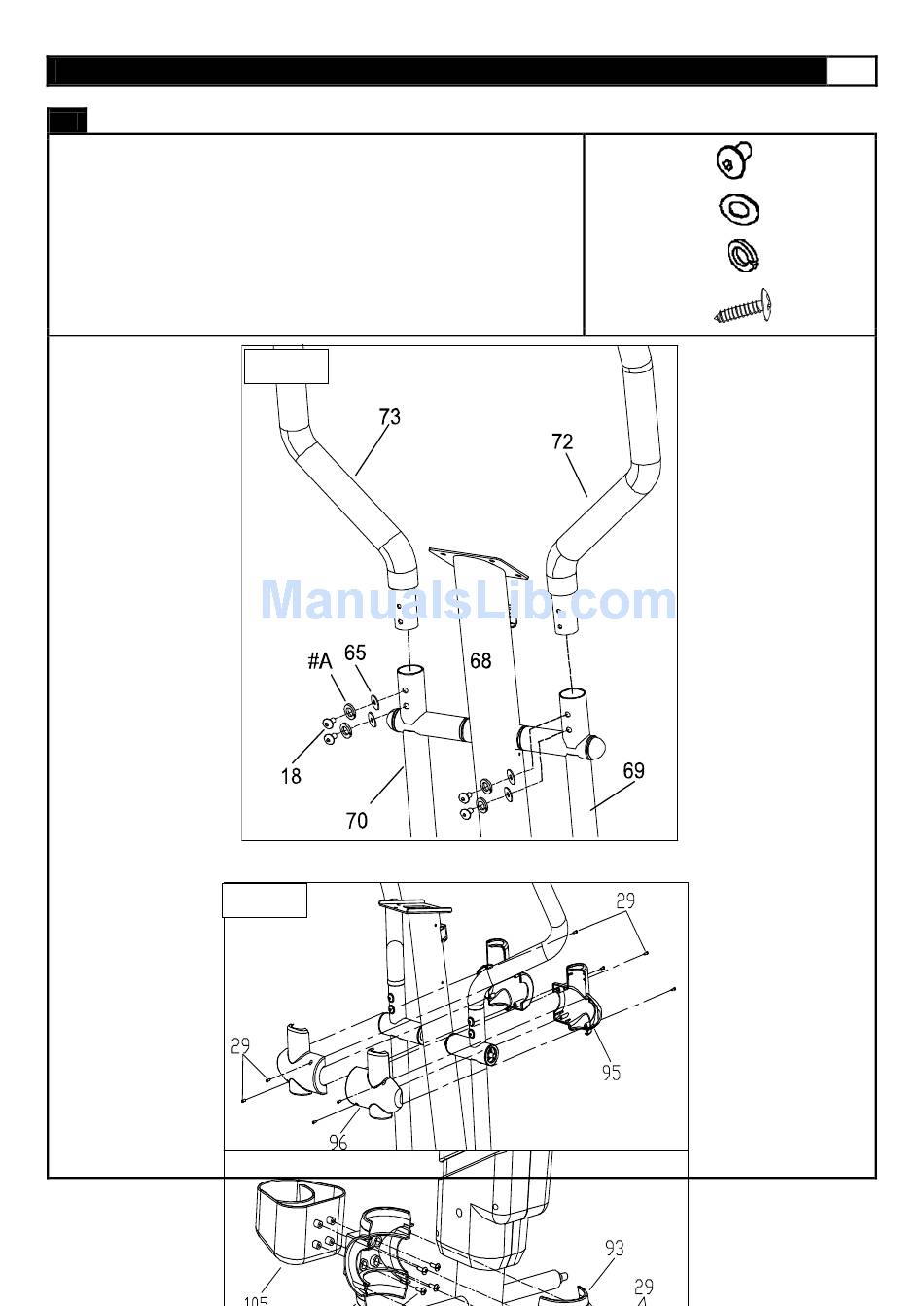

STEP 8: Attach the Upper Swing Arm Assembly and Covers
(A) Place the upper swing arms left and right #72/#73 in to the lower swing
arms #69/#70
(B) Secure the upper and lower swing arms together by using 4 x #18
Allen bolts, 4 x #A spring washer and 4 x #65 washers.
(C) Tighten all bolts now
(D) Place the Place the front and rear swing arm covers #96/#95 around
the swing arms.
(E) Secure the covers together by using 8 x #29 screws.
(F) Tighten all screws now
Fig. 8A
Fig. 8B
www.smoothfitness.com
#18
#65
#A
#29
17
4
4
4
8
