2. Clear Password (3-pin CLPWD)
This jumper allows you to clear the password in CMOS. To erase the Password
move the jumper cap from pins 2-3 (Default) to pins 1-2 (Clear Password).
Keep the cap on pins 1-2 for about 5~10 seconds, then move the cap back to
pins 2-3. Plug the power cord and turn ON the computer. Hold down the <Del>
key during the boot process and enter BIOS setup to re-enter data.
K8N8X-LA

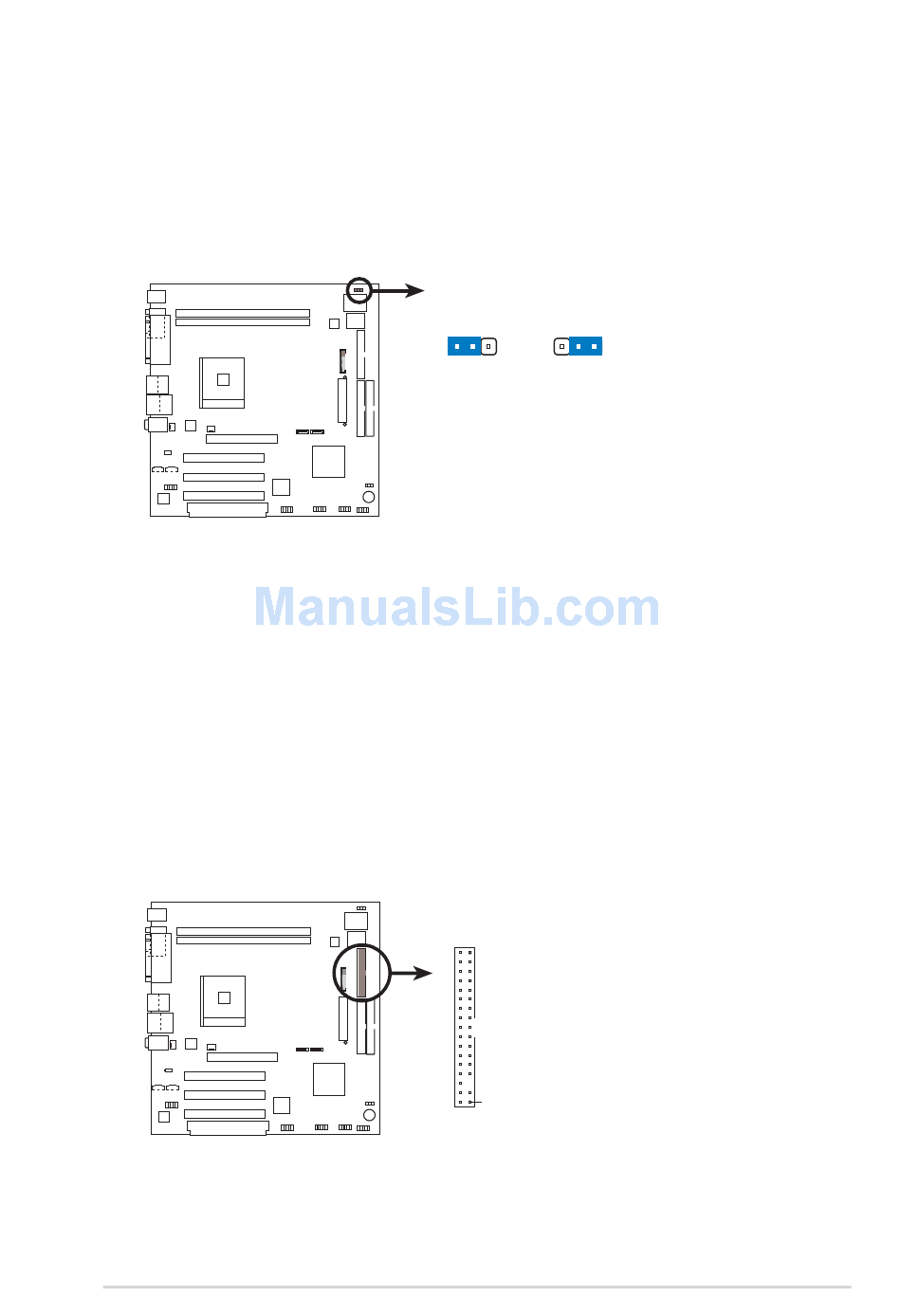

K8N8X-LA Clear Password Setting

6. Connectors

This section describes and illustrates the internal connectors on the motherboard.
1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector supports the provided floppy drive ribbon cable. After
connecting one end to the motherboard, connect the other end to the floppy
drive. (Pin 5 is removed to prevent incorrect insertion when using ribbon cables
with pin 5 plug).
K8N8X-LA
K8N8X-LA Floppy Disk Drive Connector
ASUS K8N8X-LA (Dom) Motherboard
CLPWD
3 2 2 1
Normal
Clear Password
(Default)
FLOPPY
NOTE: Orient the red markings on
the floppy ribbon cable to
PIN 1
PIN 1
7
