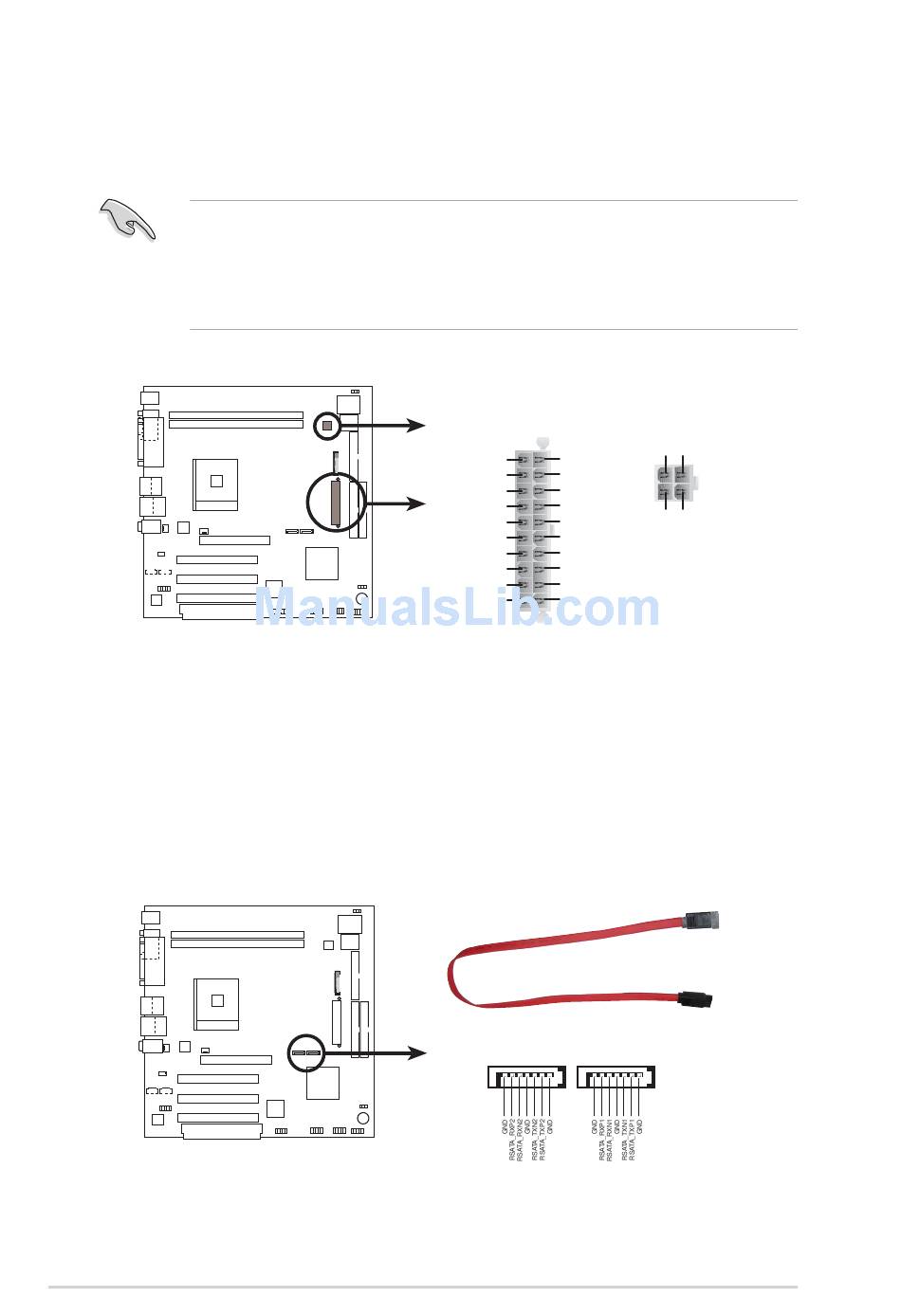

2. ATX power connectors (20-pin ATXPWR, 4-pin ATX12V)
These connectors connect to an ATX 12V power supply. The plugs from the
power supply are designed to fit these connectors in only one orientation. Find
the proper orientation and push down firmly until the connectors completely fit.
Make sure that your ATX 12V power supply can provide 8A on the +12V lead
and at least 1A on the +5-volt standby lead (+5VSB). The minimum
recommended wattage is 230W, or 300W for a fully configured system. The
system may become unstable and may experience difficulty powering up if the
power supply is inadequate.
K8N8X-LA
K8N8X-LA ATX Power Connector
3. Serial ATA connectors (7-pin SATA1, SATA0, )
These next generation connectors support the thin Serial ATA cables
for primary internal storage devices. The current Serial ATA interface
allows up to 150 MB/s data transfer rate, faster than the standard
parallel ATA with 133 MB/s (UltraDMA133).
K8N8X-LA
K8N8X-LA SATA Connectors
8 ASUS K8N8X-LA (Dom) Motherboard
ATXPWR
+12.0VDC
+5.0VDC
+5VSB
+5.0VDC
PWR_OK
-5.0VDC
COM
COM
+5.0VDC
COM
COM
COM
+5.0VDC PS_ON#
COM
COM
+3.3VDC -12.0VDC
+3.3VDC +3.3VDC
SATA1 SATA0
ATX12V
GND +12V DC
GND +12V DC
