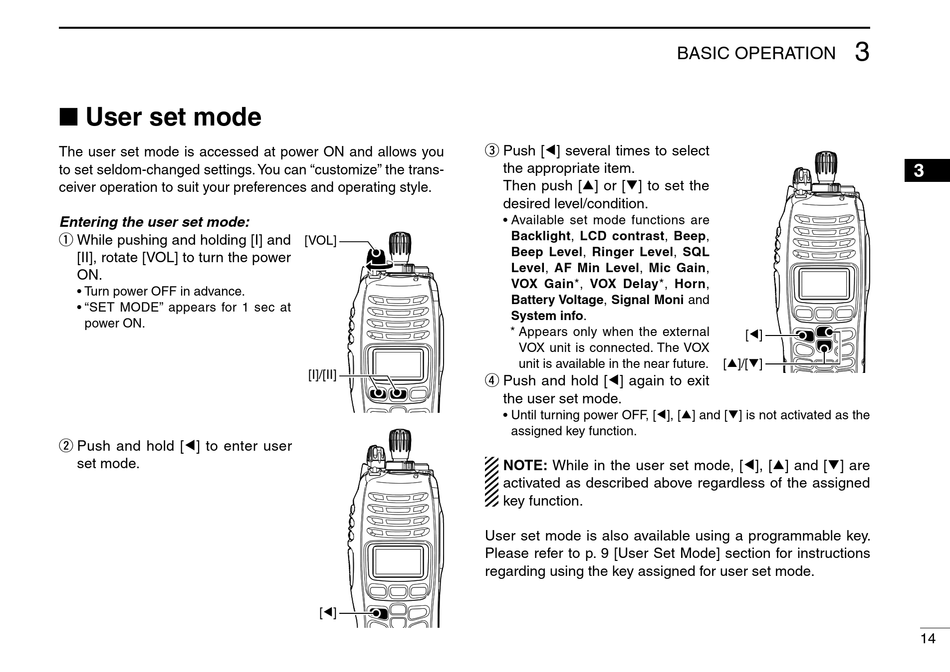

■ User set mode

The user set mode is accessed at power ON and allows you
to set seldom-changed settings. You can "customize" the trans-
ceiver operation to suit your preferences and operating style.
Entering the user set mode:
q While pushing and holding [I] and
[II], rotate [VOL] to turn the power
ON.
• Turn power OFF in advance.
• "SET MODE" appears for 1 sec at
power ON.
w Push and hold [Ω] to enter user
set mode.
[VOL]
[I]/[II]
[Ω]
e Push [Ω] several times to select
the appropriate item.
Then push [∫] or [√] to set the
desired level/condition.
• Available set mode functions are
Backlight, LCD contrast, Beep,
Beep Level, Ringer Level, SQL
Level, AF Min Level, Mic Gain,
VOX Gain*, VOX Delay*, Horn,
Battery Voltage, Signal Moni and
System info.
* Appears only when the external
VOX unit is connected. The VOX
unit is available in the near future.
r Push and hold [Ω] again to exit
the user set mode.
• Until turning power OFF, [Ω], [∫] and [√] is not activated as the
assigned key function.
NOTE: While in the user set mode, [Ω], [∫] and [√] are
activated as described above regardless of the assigned
key function.
User set mode is also available using a programmable key.
Please refer to p. 9 [User Set Mode] section for instructions
regarding using the key assigned for user set mode.
