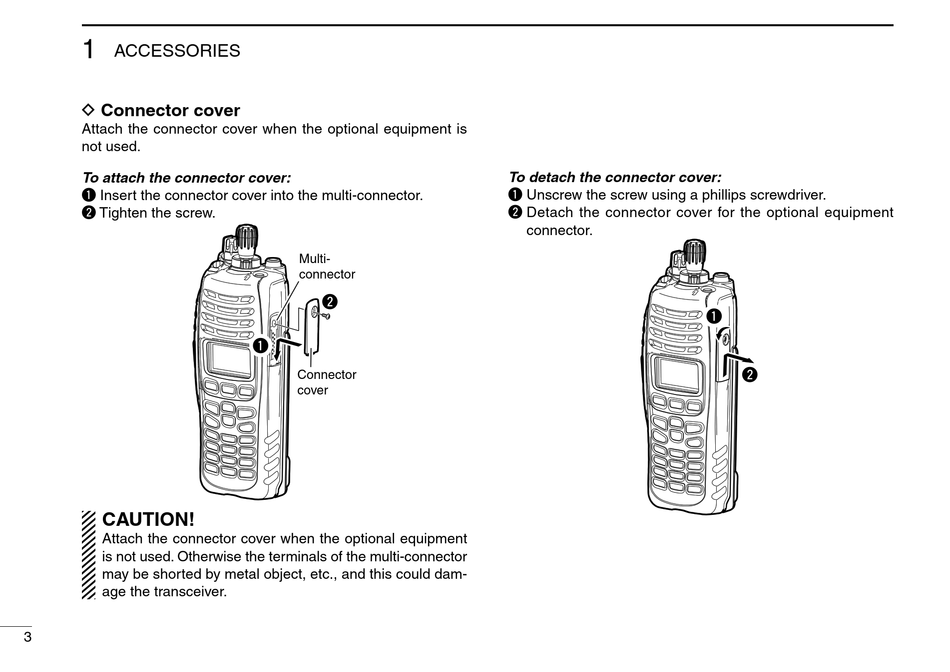

1

ACCESSORIES

D Connector cover
Attach the connector cover when the optional equipment is
not used.
To attach the connector cover:
q Insert the connector cover into the multi-connector.
w Tighten the screw.
CAUTION!
Attach the connector cover when the optional equipment
is not used. Otherwise the terminals of the multi-connector
may be shorted by metal object, etc., and this could dam-
age the transceiver.
3
Multi-
connector
w
q
Connector
cover
To detach the connector cover:
q Unscrew the screw using a phillips screwdriver.
w Detach the connector cover for the optional equipment
connector.
q
w
