SINK DESCRIPTION
• Manufactured of 20 gauge, type 301
nickel-bearing stainless steel
• The large bowl is a minimum of 12" x 190" x 5-1/2"
• The sink ledge has two fixture mounting holes,
1-11/32" in diameter and 4" on center
• Includes 4901 bar faucet with a 2.2 GPM flow rate
• Has one 2" diameter SEALTITE recessed drain
• Soundshield undercoating maximizes sound
deadening and inhibits condensation
• The exposed surfaces are polished to a lustrous satin
tone finish
• Includes all necessary mounting hardware
CUT OUT DIMENSIONS
• Cut out dimensions are 12-1/2" x 16-5/8", with a
3/4" corner radius. A tolerance of plus or minus
1/16" is acceptable
STANDARDS
• Third party certified by IAPMO to meet ASME A112.19.3
and all applicable specifications referenced therein.
Also meets applicable requirements of ANSI A117.1
WARRANTY
• Warranted for ten years against material or
manufacturing defects
3/4" R.
LENGTH
TYP.
5"
(127mm)
2-5/8" R.
TYP.
1-1/2"
12"
(38mm)
(304mm)
SEALTITE DRAIN
ASSEMBLY WITH
DROP IN BASKET
Rev. 4/05
17-1/8"
(435mm)
10"(254mm)
2"SEALTITE
DRAIN
2"
1-11/32" DIA. TYP.
(51mm)
6"
(152mm)
3-5/8"
(92mm)
5-1/2"
(165mm)

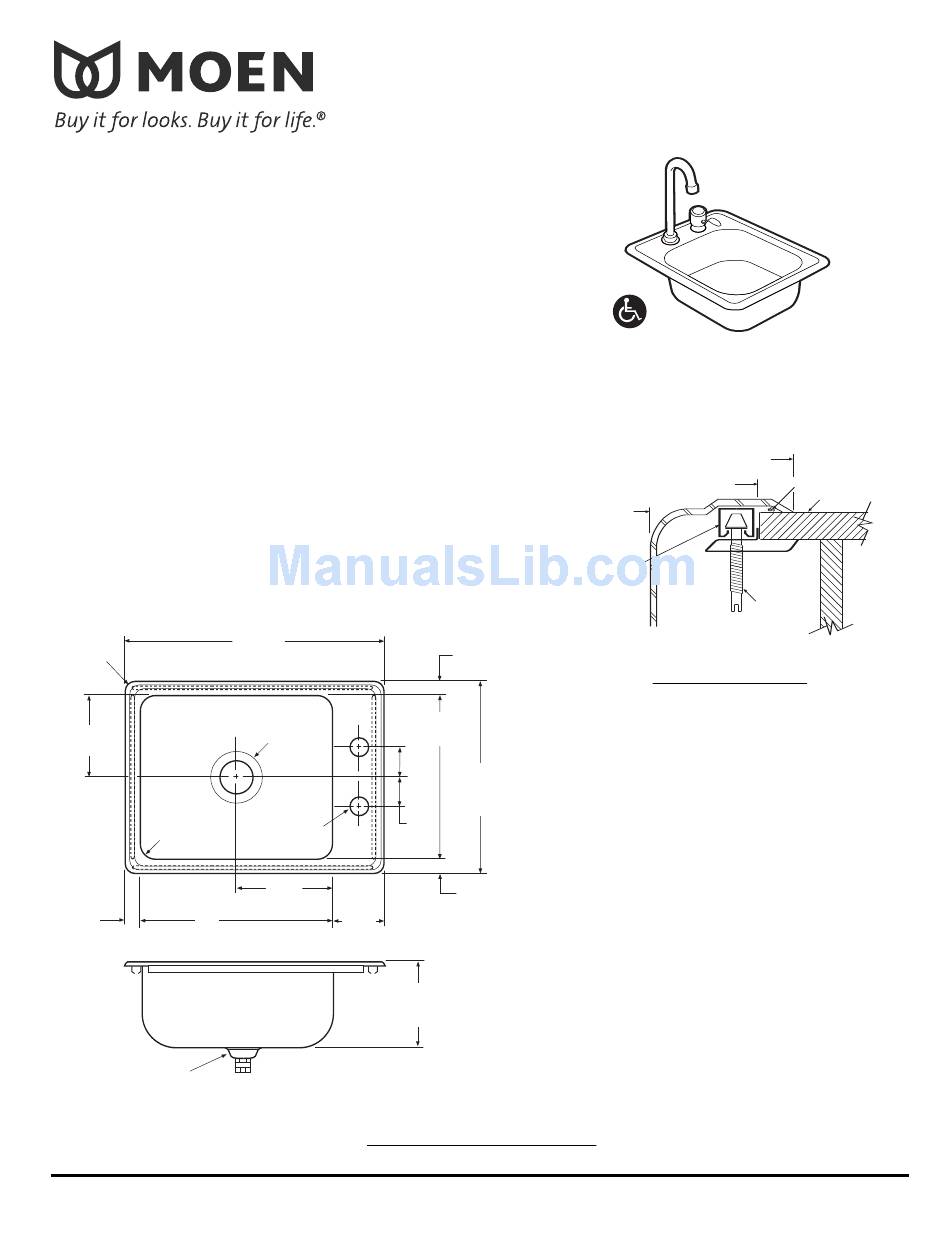

CRITICAL DIMENSIONS
S p e c i f i c a t i o n s
ADA
BOWL
DIMENSION
CONTINUOUS
"U" CHANNEL
1-1/2"
(38mm)
BOWL
13"
(330mm)
WIDTH
1-1/2"
(38mm)
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
®
Camelot
Single Bowl Bar Sink
Model: 22245
(K-1317-2-WF)
SINK OVERALL DIMENSION
SEALANT MATERIAL
COUNTERTOP CUT-OUT
SINK
CLAMP
Installation Detail
www.moen.com
COUNTERTOP
