Page 1

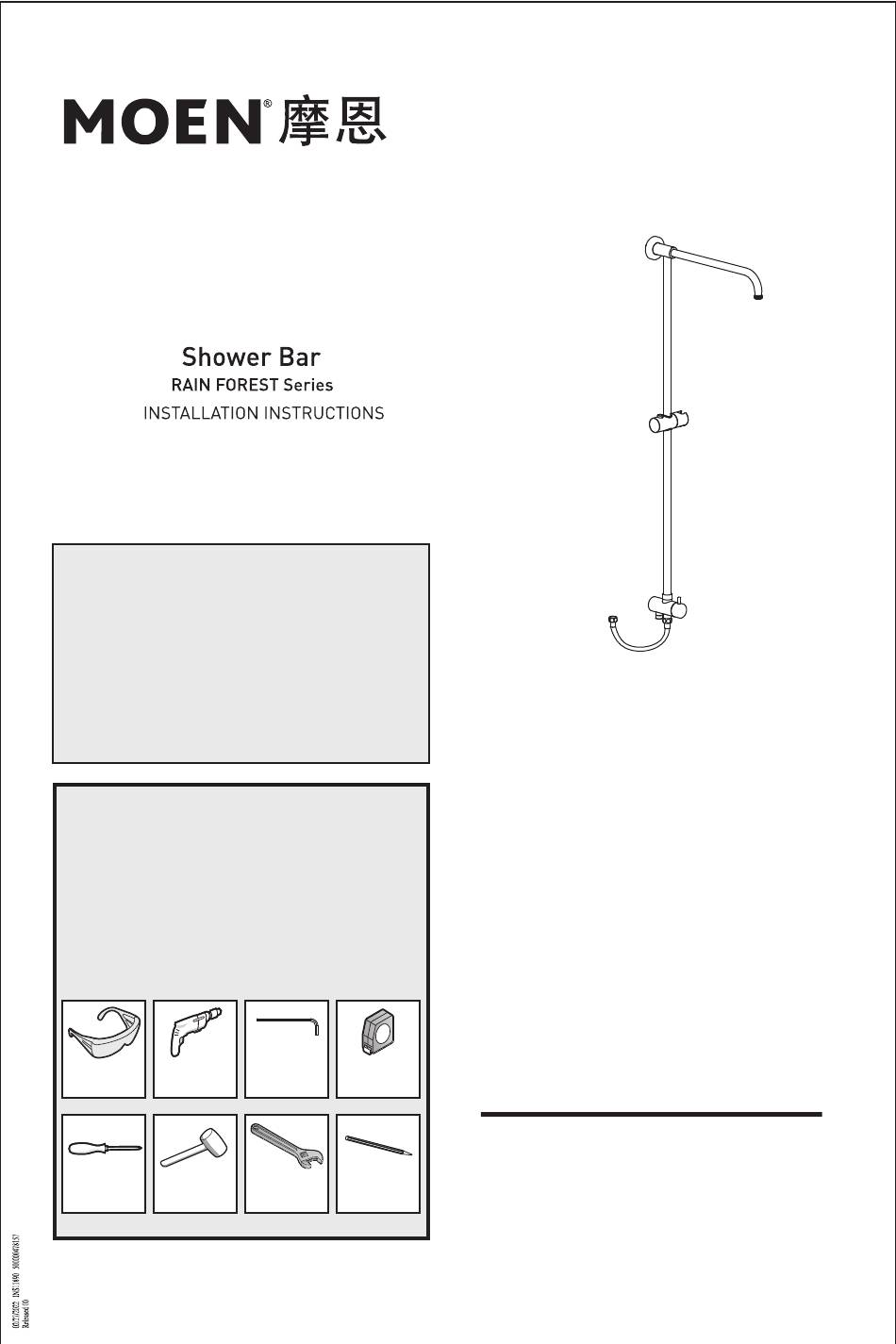

为了安全和让安装和替换变得容易,Moen建议 Image is for reference only 您使用以下工具: (Style varies by model) HELPFUL TOOLS For safety and ease of replacement, Moen rec- ommends the use of these helpful tools. 记录购买的型号: (保存安装说明书以备将来参考) Record Purchased Model Number: (Save instruction sheet for future reference) 护目镜...
零件清单 A. 支 臂 B. 法兰盖 C. 自攻螺钉 D. 固定座Ⅰ E. 膨胀管 F. 直 管 滑 座 固定座Ⅱ 切换阀 金属软管 扳 手 Parts List A. Bended Tube B. Flange Cover C. Tapping Screw D. Fixing Ring Ⅰ E. Wall Plug F.
Page 3
2-Φ6mm 孔深 Depth:35mm ① ① ② ② ① ② ③ 安装固定座: 组装管件: 1. 用Φ6mm的钻头在墙上钻两个深度35mm的孔。 1. 支臂尾部套入法兰盖。 2. 在上述孔内打入膨胀管,用自攻螺钉将固 定座锁紧在墙面上。 2. 下直管与支臂旋紧。 注意:固定座凹面朝外,平面贴墙。 3. 将直管套入切换阀,旋紧。 Install the fixing ring: Assemble the tubes: 1. As left drawing, draw the fixing ring holes on the wall. Drill two 1.
Page 4
接头部花洒 ① 先退螺钉 Connect Screw shower head back first ② 放手持花洒 Lay hand shower 接花洒软管 Connect 头部花洒 shower hose Shower head 此框配件供参考 手持花洒 须用户自备 Hand shower 花洒软管 Shower hose Reference only ① ① 先退螺钉 Screw 此框配件供参考 back first ② 须用户自备 接金属软管...
Usage Instructions and Caution 产品使用说明和注意事项 Clockwise rotation, the hand shower spray. ·切换阀把手顺时针旋转,手持花洒出水。 · Counterclockwise, the shower head spray. ·切换阀把手逆时针旋转,头部花洒出水。 · The hand shower spray The shower head spray 手持花洒出水 头部花洒出水 Press the slider button, you can adjust the height of ·按下滑座的按钮,可调整滑座高度。...
