SINK DESCRIPTION
• Manufactured of 20 gauge, type 301 nickel-bearing
stainless steel
• The bowls are a minimum of 14" x 16" x 7-1/4"
• The sink ledge has three fixture mounting holes,
1-1/2" in diameter and 4" on center
• Has two 3-1/2" diameter recessed drain opening
• Soundshield undercoating maximizes sound deadening
and inhibits condensation
• The exposed surfaces are polished to a lustrous satin
tone finish
• Includes all necessary mounting hardware
CUT OUT DIMENSIONS
• Cut out dimensions are 32-3/8" x 21-3/8", with a 3/8"
corner radius. A tolerance of plus or minus 1/16"
is acceptable
STANDARDS
• Third party certified by IAPMO to meet ASME A112.19.3
and all applicable specifications referenced therein.
WARRANTY
• Warranted for ten years against material or
manufacturing defects
2-1/2"
(64mm)
17"
(432mm)
9-7/8"
(251mm)
2" R. TYP.
8-7/8"
(225mm)
Rev. 4/05
28"
(711mm)
4"
4"
1-1/2" DIA. TYP.
(51mm)
(51mm)
3-1/2"
DIA. TYP.
1-1/4"
7"
(178mm)
(356mm)
33"
(838mm) LENGTH

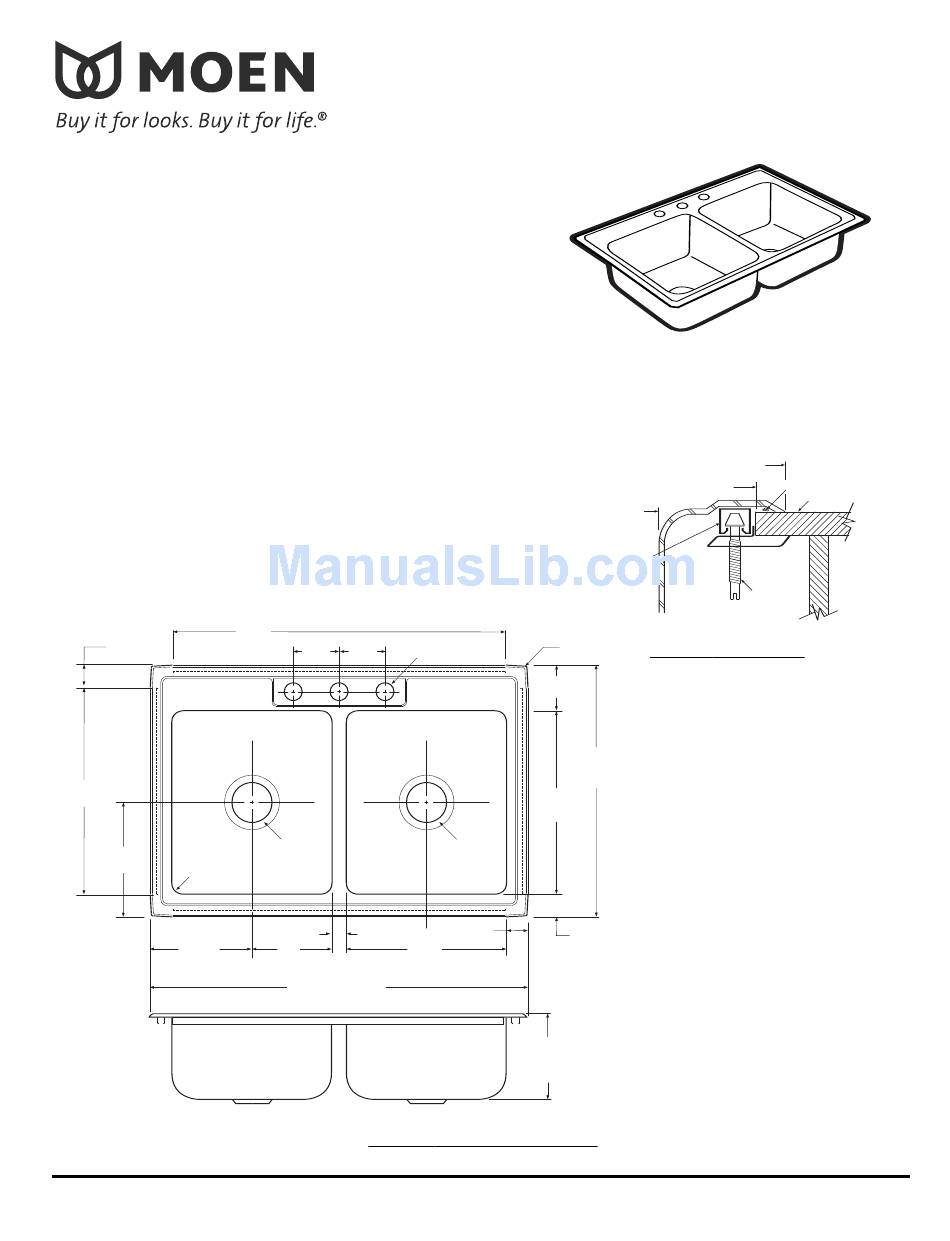

CRITICAL DIMENSIONS
S p e c i f i c a t i o n s
CONTINUOUS
"U" CHANNEL
3/8"
R. TYP.
4-1/8"
(105mm)
22"
(559mm)
WIDTH
16"
(406mm)
BOWL
3-1/2"
DIA. TYP.
1-7/8"
1-7/8"
(48mm)
(48mm)
14"
7-1/4"
(184mm)
BOWL
DEPTH
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
®
Camelot
Double Bowl Kitchen Sink
Model: 22217
(KDE-3322-3-7.25)
SINK OVERALL DIMENSION
SEALANT MATERIAL
COUNTERTOP CUT-OUT
BOWL
DIMENSION
SINK
CLAMP
Installation Detail
COUNTERTOP
www.moen.com
