Swann Advanced series Easy Setup Manual page 3

Technical Specifi cations
Video Compression H.264
Video System NTSC / PAL
Operating System Linux
BNC: 16-ch inputs / BNC: 2 outputs / VGA: 1 output / HDMI: 1
Video
ouput
Input/Output
BNC :4-ch inputs/ BNC via adapter: 12-ch inputs / RCA: 2-ch
Audio
outputs
NTSC: 704 x 480 / PAL: 704 x 576
Resolution
VGA: 800 x 600, 1024 x 768, 1280 x 1024,1440 x 900
Display
Frame Rate NTSC: 480fps / PAL: 400fps (shared by 16 channels)
Aspect Ratio 4:3 (PAL, NTSC, VGA) ,16:10 (VGA), 16:9 (HDMI)
NTSC: CIF(352x240) / HD1(704x240) / D1(704x480)
Resolution
PAL: CIF(352x288) / HD1(704x288) / D1(704x576)
Record
NTSC: 120fps-D1 / 240fps-HD1 / 48fps-CIF (shared by 4 cameras)
Frame Rate
PAL: 100fps-D1 / 200fps-HD1 / 400fps-CIF (shared by 4 cameras)
Display Single / 2 x 2 (Quad) / 3 x 3 / 4 x 4 / SEQ
Feature
Recording Best / Good / Normal
Record Modes Manual / Motion Detection / Schedule
Interface 2* SATA Fixed HDD (optional)
HDD
Capability SATA up to 2000GB (2TB)
Playback Search Time & Date / Event Lists
USB Interface USB 2.0 for Mouse and File Backup / Upgrade
PTZ Control Built-in RS-485 / support PELCO-P & PELCO-D
LAN/Network Interface RJ45, 10M/100M
Network Protocol Support TCP/IP, DHCP, DDNS, PPPoE, Static, UPnP
Supports live viewing with (Internet Explorer) & selected
Network Function
smartphones
Backup via USB fl ash
Recording Pack Time 15 / 30 / 45 / 60 mins selectable
IR Remote Control Included
Mouse USB (Included)
Power Supply DC12V
15" x12.5" x 2" /
Dimensions
380mm x 320mm x 50mm
Weight 5 ~ 8lbs / 2.5 ~ 4Kg (varies by HDD(s) installed)
76
etup Guide
1
h@swannsecurity.com
H.264 DVR

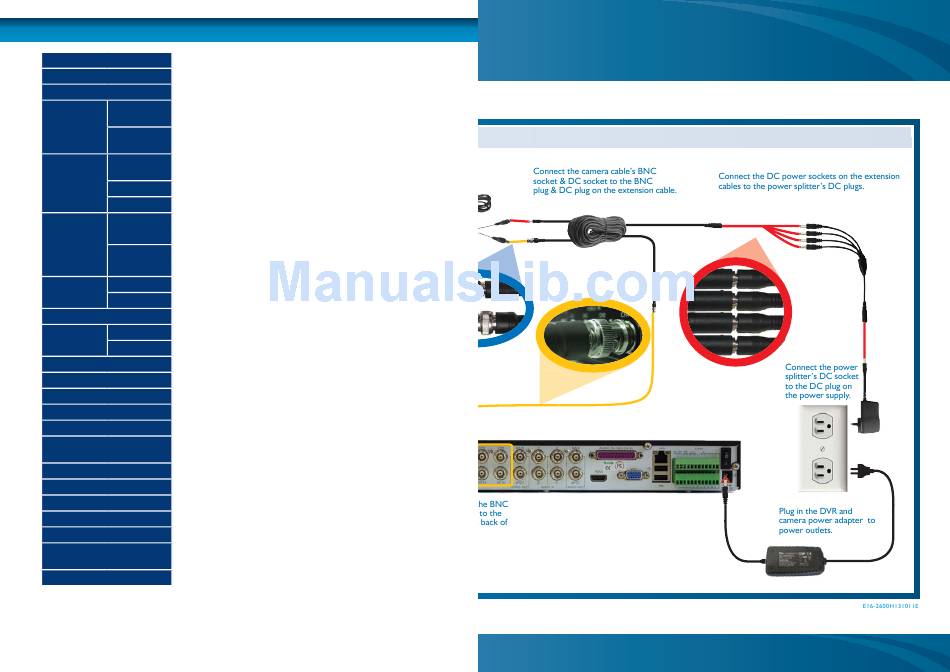

Camera Connections
3
4
5
