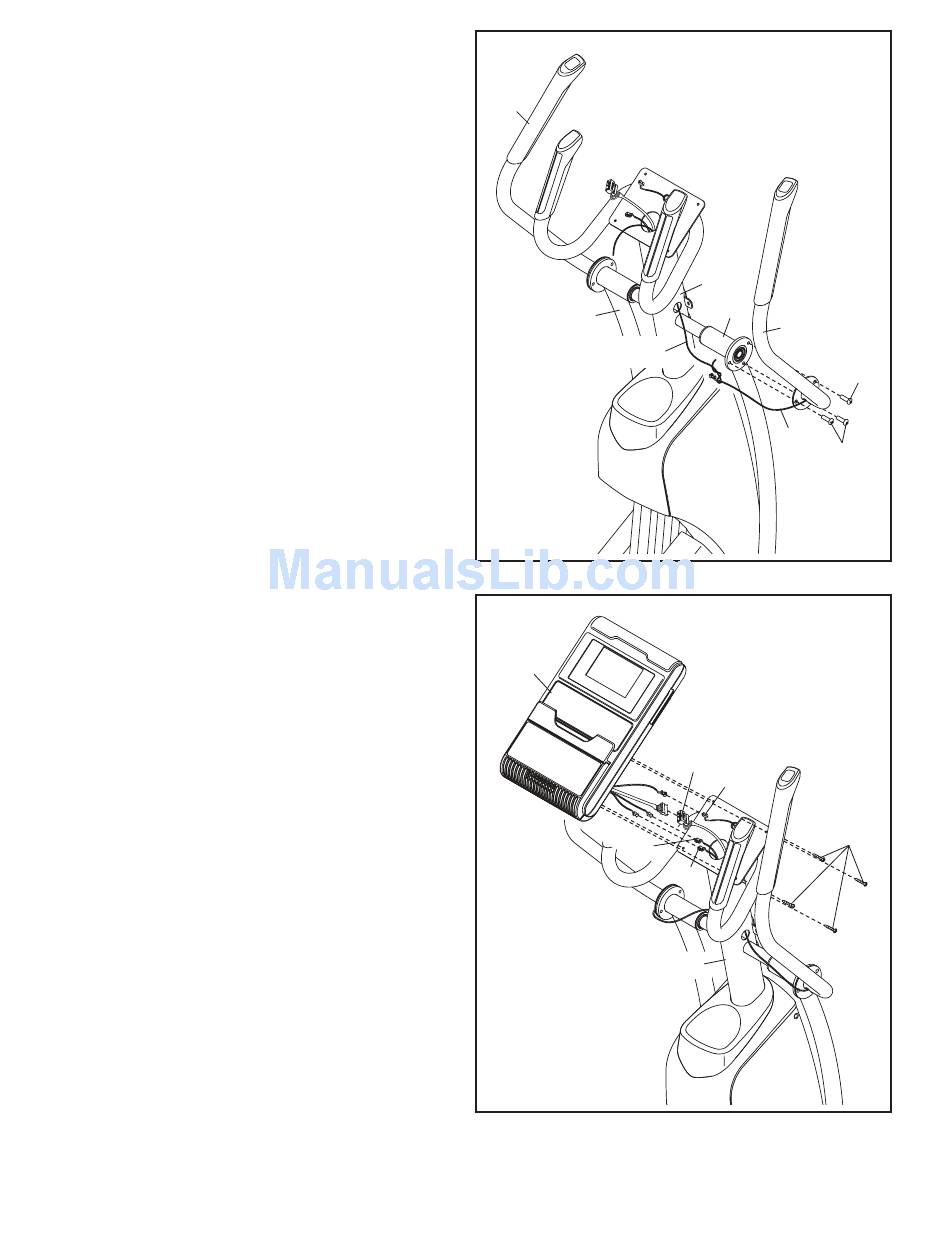

9. Identify the Right Upper Body Arm (8), which
is marked with a “"Right”" sticker, and orient it as
shown.
Have a second person hold the Right Upper
Body Arm (8) near the Right Upper Body Leg (6).
Locate the wire tie in the right side of the Upright
(5). Tie the wire tie to the Right Grip Wire (45).
Pull the upper end of the wire tie until the Right
Grip Wire is routed through the Upright.
Tip: To prevent the Right Grip Wire (45) from
falling into the Upright (5), secure the Right
Grip Wire with the wire tie.
Tip: Avoid pinching the Right Grip Wire (45).
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x 16mm
Screws (102).
Attach the Left Upper Body Arm (9) to the Left
Upper Body Leg (7) in the same way.
10. Untie and discard the wire ties on the wires in
the Upright (5).
Have a second person hold the Console (33)
near the Upright (5).
Connect the wires on the Console (33) to the
Pulse Wire (105), the Wire Harness (60), and the
Grip Wires (45, 104). Make sure to connect the
console wire that has a tag to the Grip Wire
that has a tag.
Insert the Pulse Wire (105) upward into the
Console (33). Insert the other wires downward
into the Upright (5).
Tip: Avoid pinching the wires. Attach the
Console (33) to the Upright (5) with four M4 x
16mm Screws (106).
See step 3. Tighten the four M8 x 16mm Screws
(102). Then, slide the Top Cover (27) downward
and press it onto the Frame Covers (21, 22).
