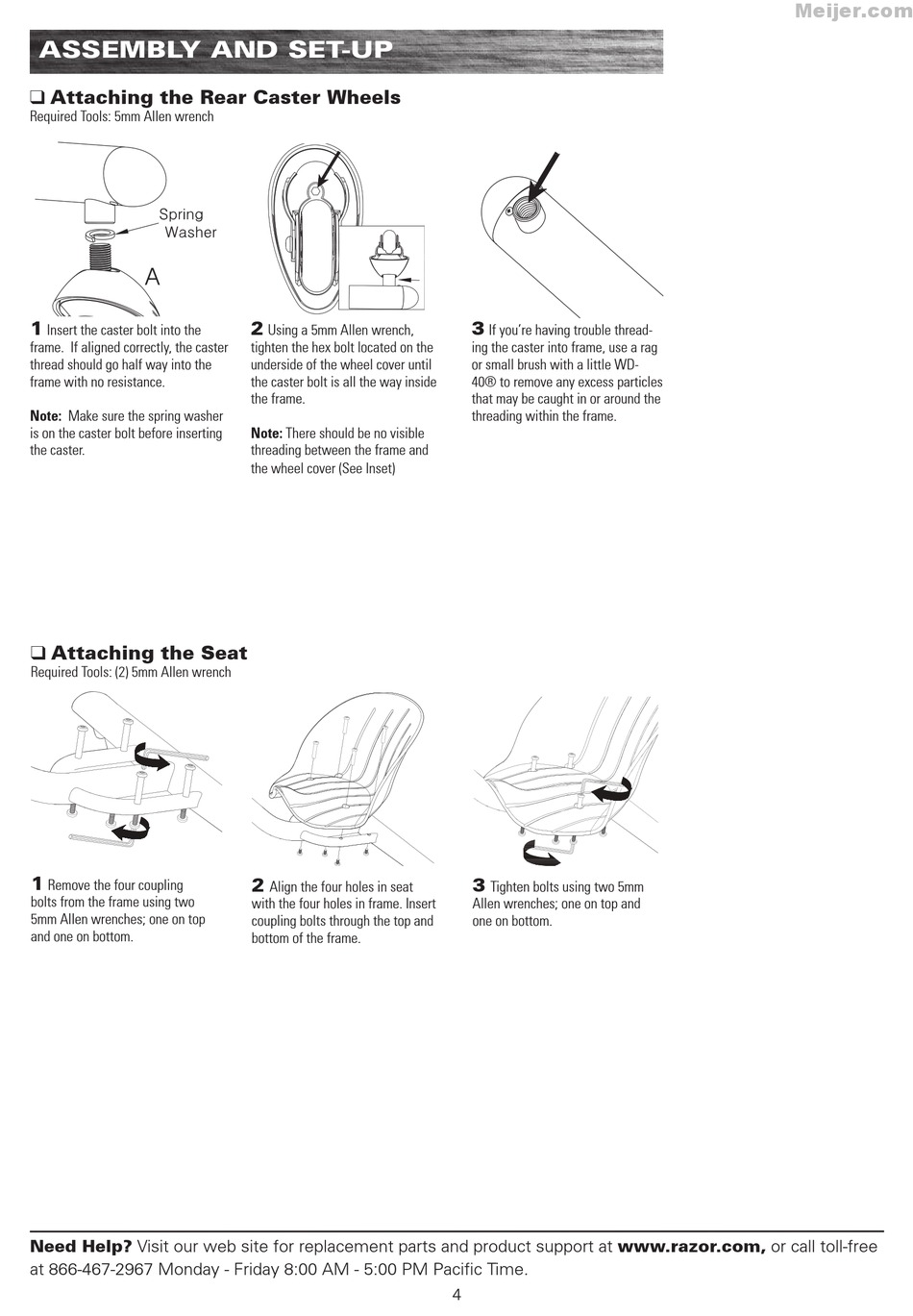

ASSEMBLy AND SET-UP

q Attaching the Rear Caster Wheels
Required Tools: 5mm Allen wrench
1
Insert the caster bolt into the
frame. If aligned correctly, the caster
thread should go half way into the
frame with no resistance.
Note: Make sure the spring washer
is on the caster bolt before inserting
the caster.
q Attaching the Seat
Required Tools: (2) 5mm Allen wrench
1
Remove the four coupling
bolts from the frame using two
5mm Allen wrenches; one on top
and one on bottom.
Need Help? Visit our web site for replacement parts and product support at www.razor.com, or call toll-free
at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
2
Using a 5mm Allen wrench,
tighten the hex bolt located on the
underside of the wheel cover until
the caster bolt is all the way inside
the frame.
Note: There should be no visible
threading between the frame and
the wheel cover (See Inset)
2
Align the four holes in seat
with the four holes in frame. Insert
coupling bolts through the top and
bottom of the frame.
3
If you're having trouble thread-
ing the caster into frame, use a rag
or small brush with a little WD-
40® to remove any excess particles
that may be caught in or around the
threading within the frame.
3
Tighten bolts using two 5mm
Allen wrenches; one on top and
one on bottom.
4
