Adding a Remote to the STDMA Group

Entering the item number for the Remote demodulator/router brings up the
dialog shown in figure 3-21. A prompt to enter the Name to assign to the
Remote unit appears, followed by a prompt to enter the IP Address for this unit.
Once a Remote has been added to the group, its Status in the group is displayed
by the use of the following letters:
• U = Used – This Remote is being used in the burstmap.
• B = Burstmap – This Remote is currently in the burstmap.
3-20
Figure 3-20
Figure 3-21
Once a remote has been added to the STDMA group, this status will
always be displayed.
This status will be displayed unless the remote has been removed (R),
disabled (D), or switched (S) out of the STDMA burstmap.

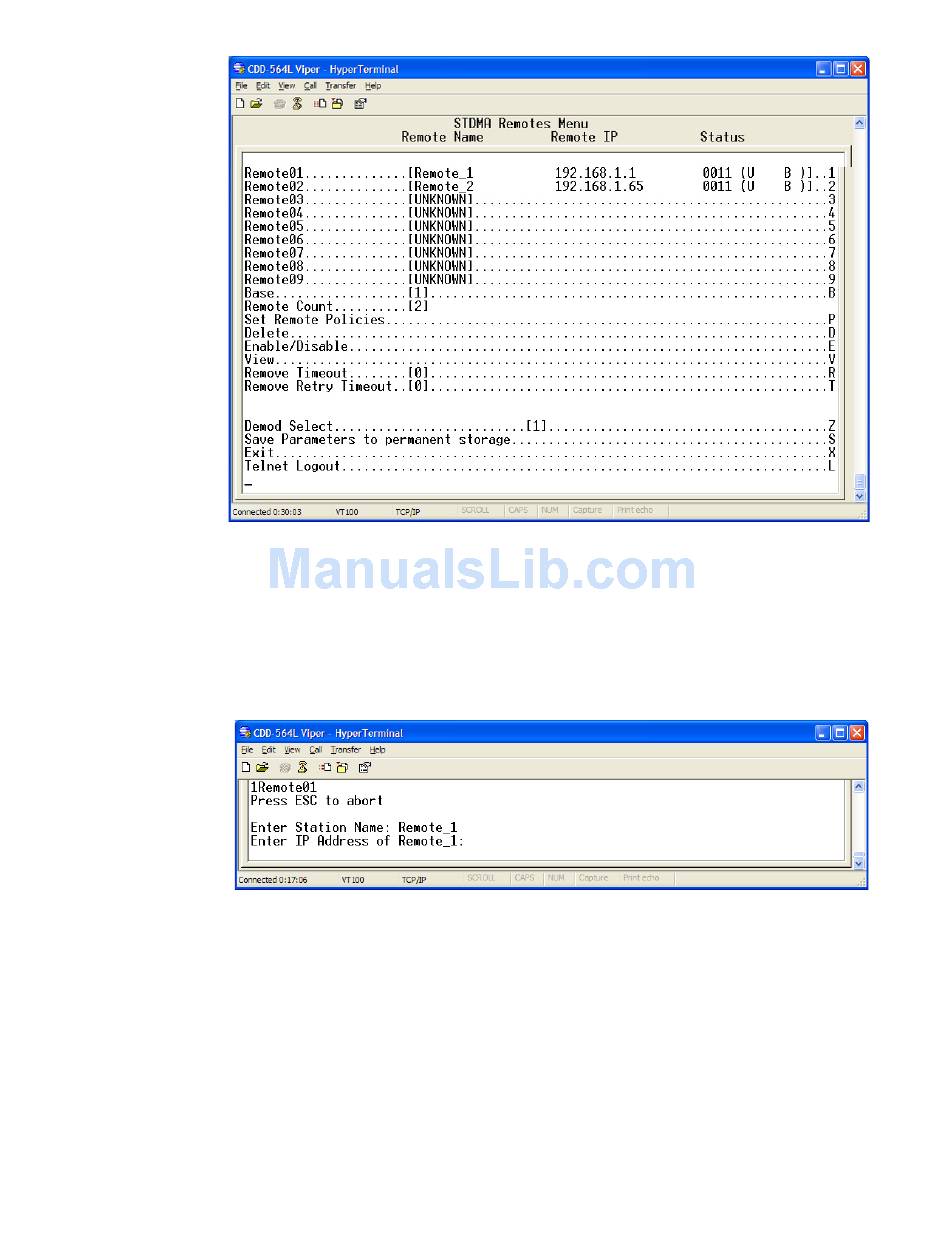

STDMA Remotes Menu screen
Remote Name and IP Address prompt
