In a Hub configuration, the default gateway will typically point to a router on
the same LAN as the CDD-56X Hub unit.
In a Remote configuration, the default route will typically point to the satellite
modem used for communications back to the Hub.
3.
4.

Set the Satellite Demod Configuration

1.
C h ap t e r Q u i c k S t a r t C o n f i g u r a t i o n
2 -

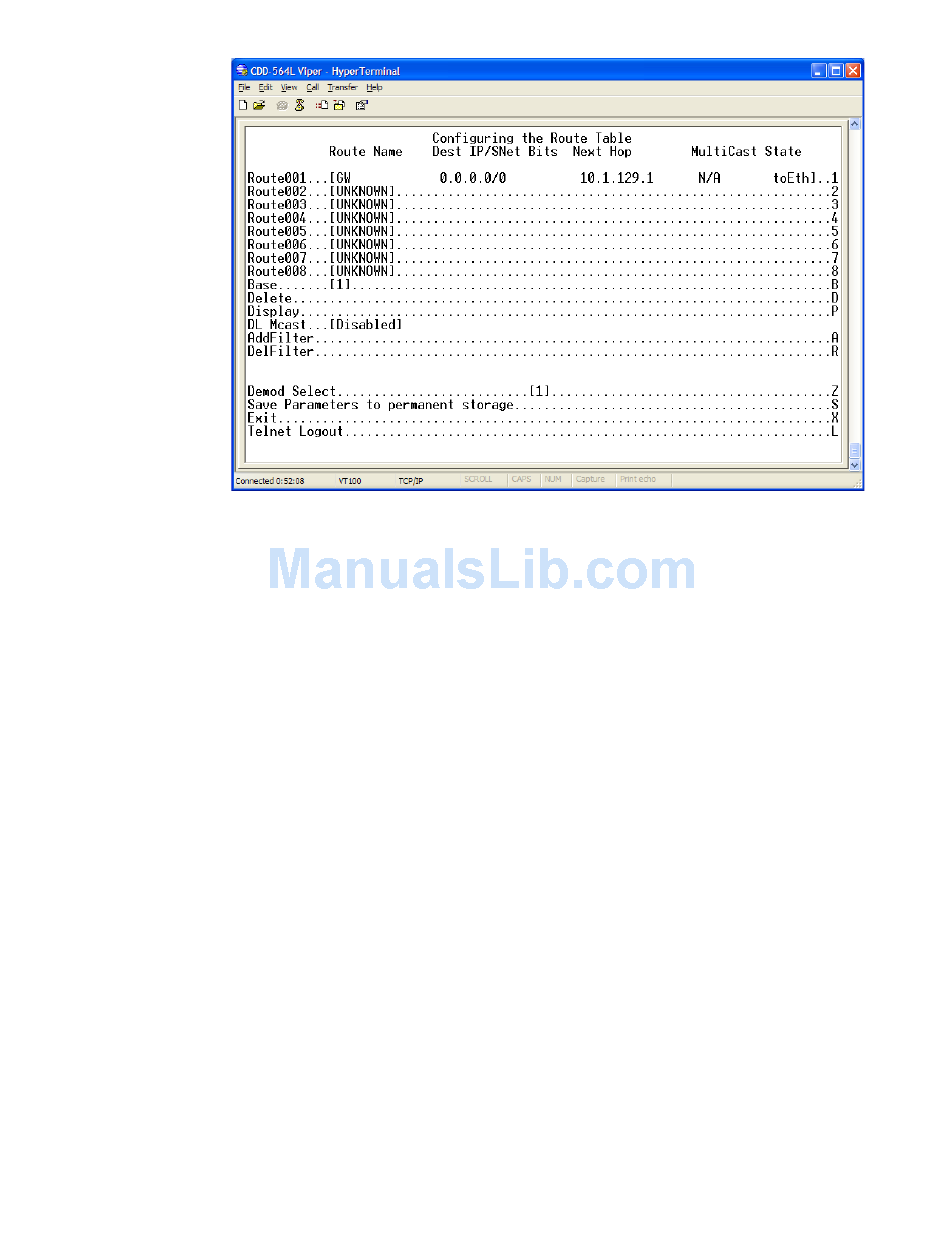

Figure 2-7
When prompted, enter the Route Name (GW), the IP Address, the
Number of Bits in the subnet mask, the Route Interface (Ethernet or Sat-
ellite), and the Next Hop address. The system administrator can supply
this information, if necessary.
In a Hub role, for example, enter the name of the route (e.g., GW), enter
0.0.0.0 for the destination IP address and 0 for the mask, enter E for
Ethernet interface, then enter the IP address of the appropriate router or
modem for the next hop.
Enter S at the command prompt in figure 2-7 to save the settings to flash.
Enter M from the Main Menu, then enter C from the Satellite
Demodulator menu to access the Configuration screen.
Configuring the Route Table screen
I n i t i a l C o n f i g u r a t io n
2-9
