Chapter 3 — Covers and Doors

3.3 Left-Hand Cover

#T10 Torx screws (x4)
28
The left-hand cover gives access to:
• The electronics incl. CPU board, AC connection, power supply, driver
board, and any optional interface boards.
• The motors, belts and pulleys of the media feed, ribbon feed, and the
optional liner/batch takeup unit.

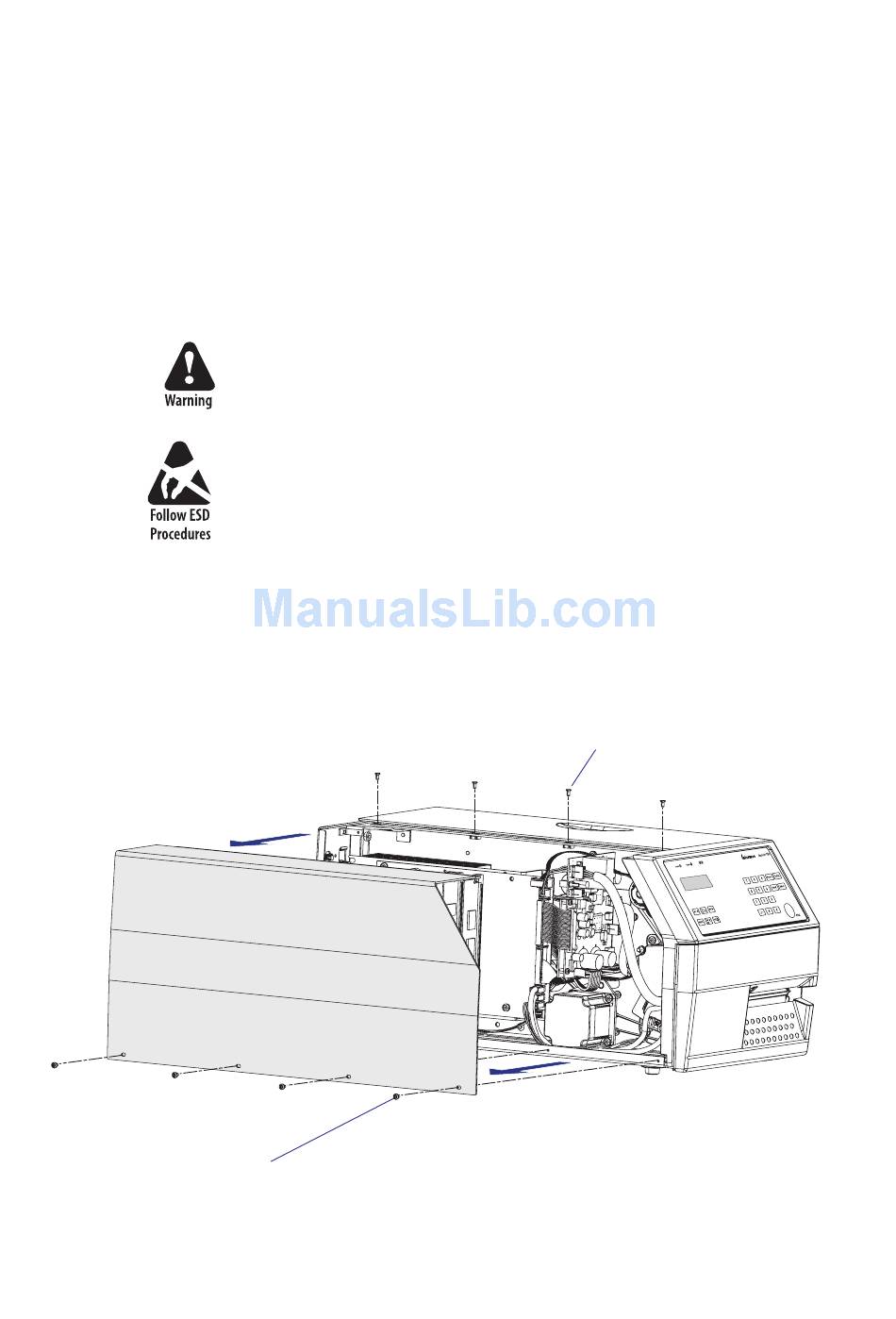

The left-hand cover plate is fi tted to the printer's frame using a total of
eight #T10 Torx screws; four along the lower edge and another four along
the top.
The electronic compartment contains wires and components with
dangerous voltage (up to 380V). Make sure that the printer is switched
off and the power cord is disconnected, before the left-hand cover is
removed.
Before removing the left-hand cover, take standard precautions to avoid
causing any electrostatic discharges.
After having disconnected the power cord, open the right-hand door.
Using a #T10 Torx screwdriver, remove the four screws along the lower
edge fi rst, then remove the four upper screws. Put the cover plate aside on
a soft cloth or similar material to avoid scratches.
Fit back the left-hand cover in reverse order. Before fi nally tightening the
screws, check that the cover is aligned with the front moulding and the
rear plate and that it does not interfere with the right-hand door.
#T10 Torx screws (x4)
