Chapter 9 — Liner Takeup Kit

9.1 Description

106
The liner takeup kit is an optional factory-installed device that makes
it possible to auto-dispense self-adhesive labels from the liner (peel-off/
self-strip operation), and—in case of EasyCoder PX4i—also to wind up
printed labels, tickets, or continuous stock internally (batch takeup opera-
tion.) The kit consists of two or three main parts:
• A stepper motor that drives the liner drive roller in the print unit and
the liner/batch takeup unit. The liner drive roller is fi tted as standard
even when the kit is not installed.
• A liner/batch takeup unit that takes up the spent liner or the printed
media to be rewound for later use.
• A guide plate (EasyCoder PX4i only) that replaces the tear bar when
labels or other types of printed media are wound up internally (see
below). When not used, the guide plate is fi tted using one #T20 Torx
screw at the rear of the media compartment.
When no rewind unit is fi tted, the hole through the center section is cov-
ered by a plate held by two #T20 screws.

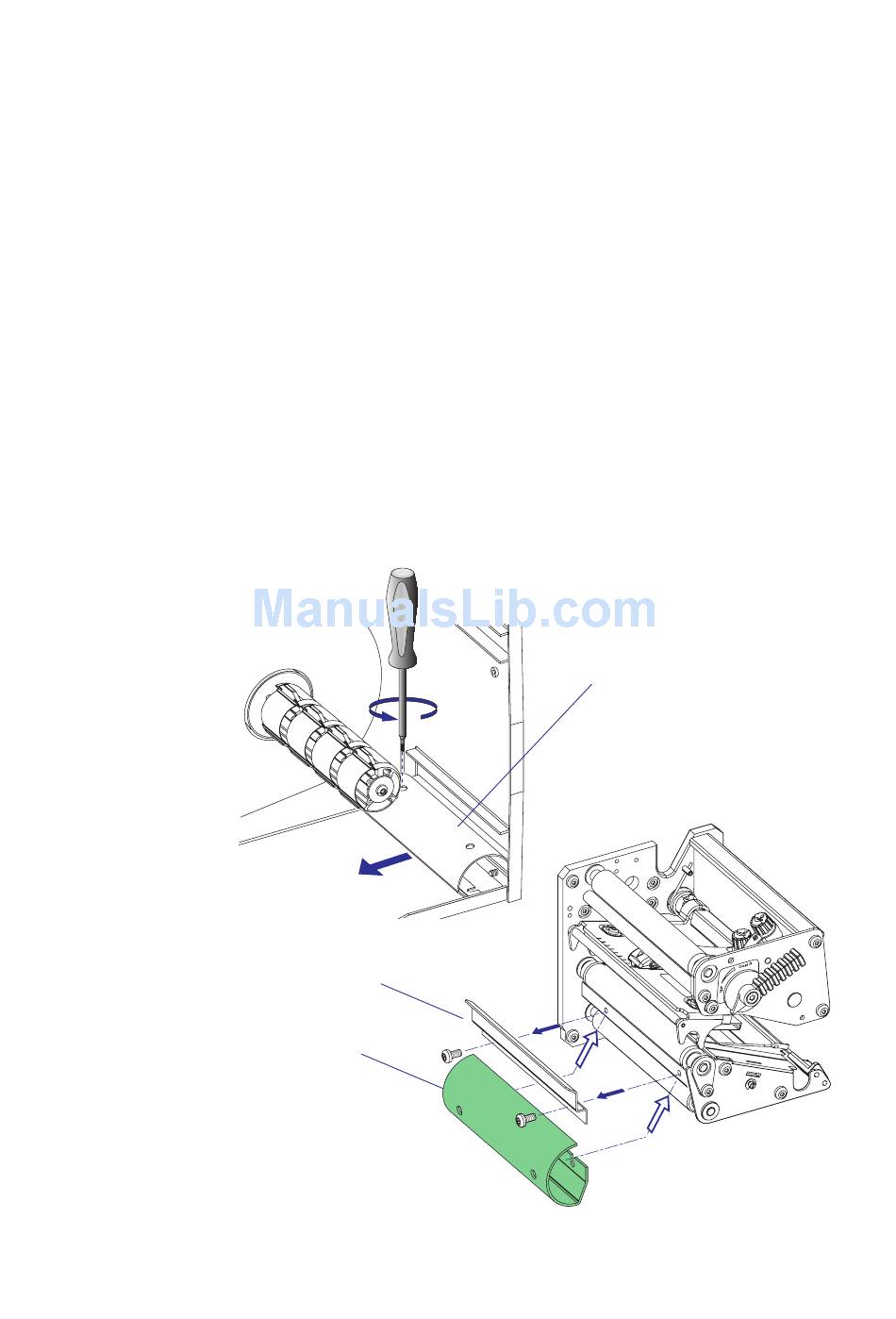

Tear bar
Rewind guide
The batch takeup guide plate is only used in EasyCoder PX4i.
Rewind guide
(position when not fi tted)
