Chapter 3 — Covers and Doors

3.2 Front Door

The front door gives access to:
• The front part of the print mechanism
• The paper cutter connector
• The optional label taken sensor
The front hatch is fi tted to the bottom plate using two hinges of the same
type as those of the right-hand door. The front hatch is kept shut by a
snap-lock and can be swung down almost to a vertical position. The hatch
can be removed from its hinges by pushing it to the left until the snap-lock
on the right-hand hinge disengages.
The front hatch can be replaced by an optional paper cutter unit, see
Chapter 11.
Alignment is performed in the same way as the right-hand door, see the
previous page.

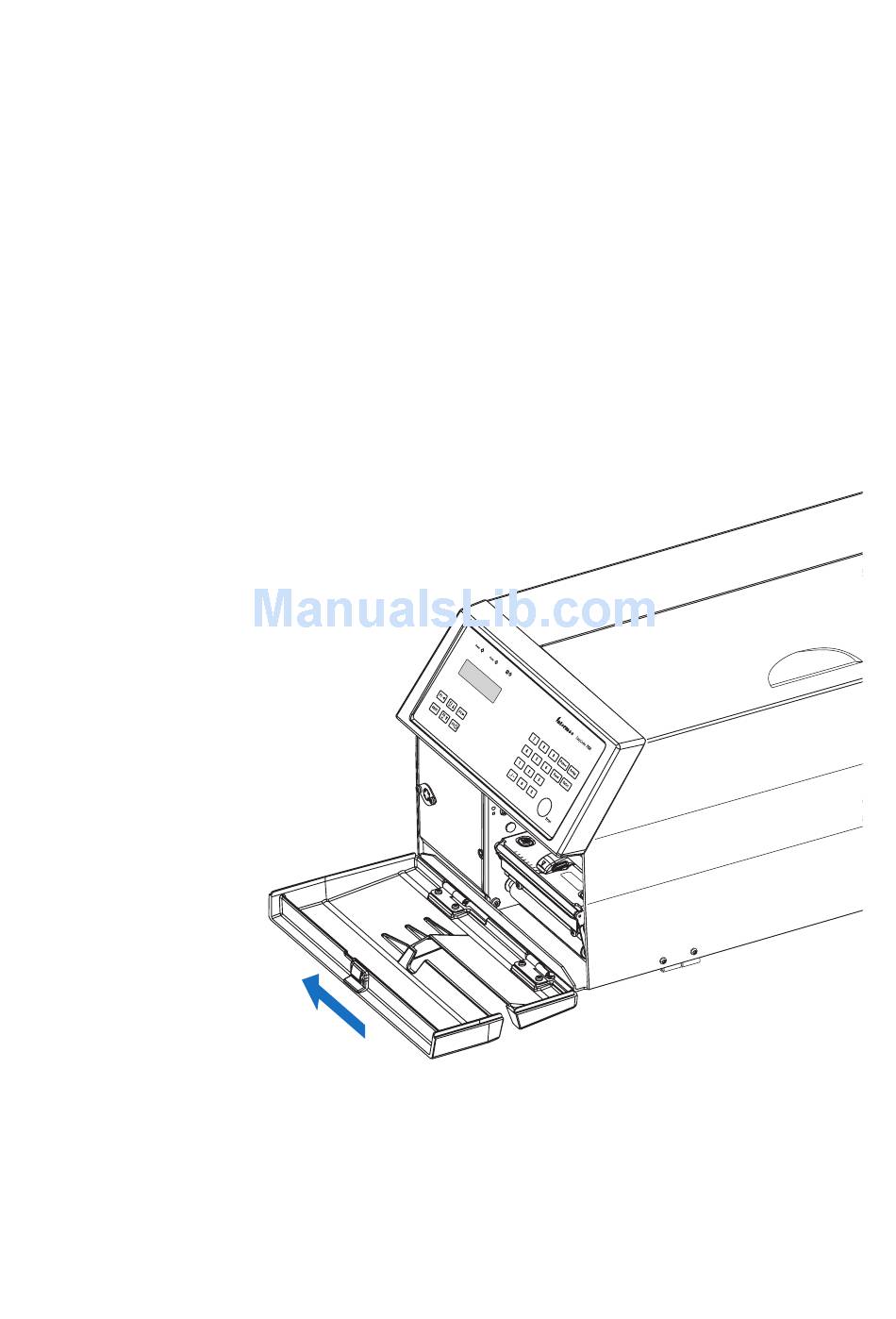

The front hatch can be removed by pushing it to the left when open
(illustration shows an EasyCoder PX4i).
EasyCoder PX4i and PX6i Service Manual 27
