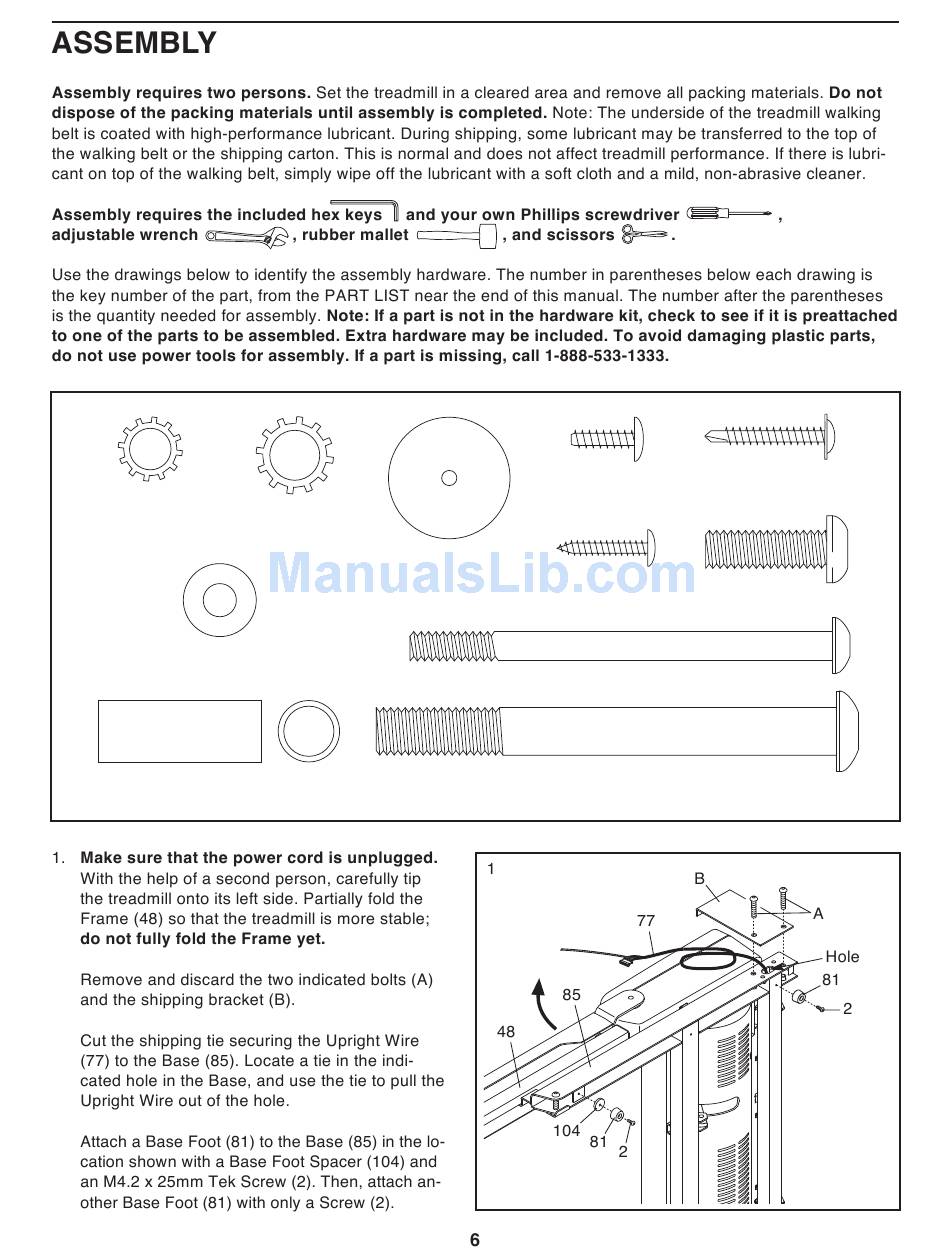

Assembly; Fasteners Diagram - Pro-Form CROSSWALK 390 User Manual

#8 x 1/2" Screw
M4.2 x 25mm Tek
(22)–1
Screw (2)–4
M8 Star
M10 Star
Washer (10)–4
Washer (8)–8
Base Foot Spacer
(104)–2
M4.2 x 19mm
Screw (1)–6 M8 x 25mm Bolt (6)–4
1/4" Washer
(9)–4
1/4" x 3 1/2" Bolt (4)–4
M10 x 96mm Bolt (5)–4
Bolt Spacer (79)–4
