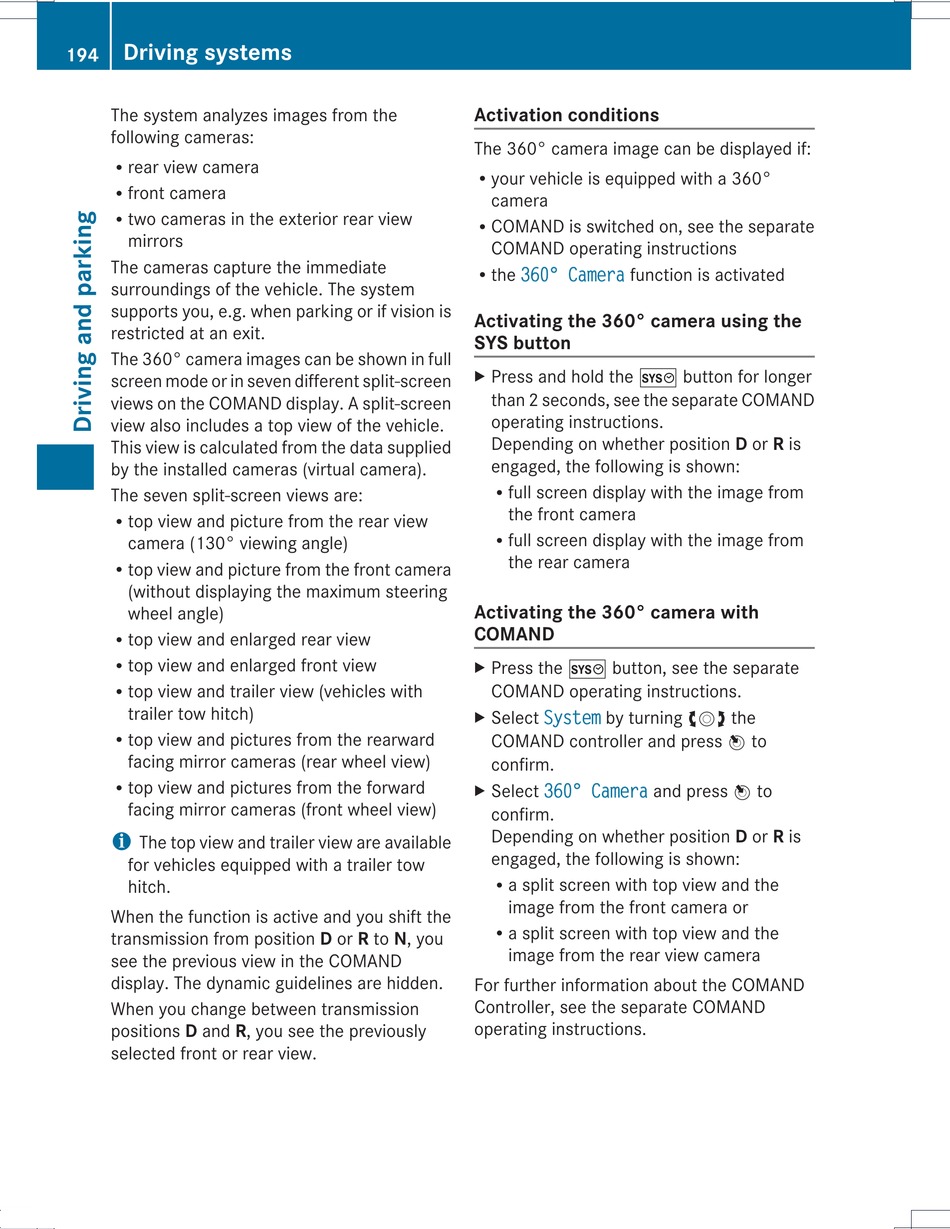

Driving systems
194
The system analyzes images from the
following cameras:
rear view camera
R
front camera
R
two cameras in the exterior rear view
R
mirrors
The cameras capture the immediate
surroundings of the vehicle. The system
supports you, e.g. when parking or if vision is
restricted at an exit.
The 360° camera images can be shown in full
screen mode or in seven different split-screen
views on the COMAND display. A split-screen
view also includes a top view of the vehicle.
This view is calculated from the data supplied
by the installed cameras (virtual camera).
The seven split-screen views are:
top view and picture from the rear view
R
camera (130° viewing angle)
top view and picture from the front camera
R
(without displaying the maximum steering
wheel angle)
top view and enlarged rear view
R
top view and enlarged front view
R
top view and trailer view (vehicles with
R
trailer tow hitch)
top view and pictures from the rearward
R
facing mirror cameras (rear wheel view)
top view and pictures from the forward
R
facing mirror cameras (front wheel view)
i
The top view and trailer view are available
for vehicles equipped with a trailer tow
hitch.
When the function is active and you shift the
transmission from position D or R to N, you
see the previous view in the COMAND
display. The dynamic guidelines are hidden.
When you change between transmission
positions D and R, you see the previously
selected front or rear view.

Activation conditions

The 360° camera image can be displayed if:
your vehicle is equipped with a 360°
R
camera
COMAND is switched on, see the separate
R
COMAND operating instructions
the 360° Camera function is activated
R
Activating the 360° camera using the
SYS button
Press and hold the W button for longer
X
than 2 seconds, see the separate COMAND
operating instructions.
Depending on whether position D or R is
engaged, the following is shown:
full screen display with the image from
R
the front camera
full screen display with the image from
R
the rear camera
Activating the 360° camera with
COMAND
Press the W button, see the separate
X
COMAND operating instructions.
Select System by turning cVd the
X
COMAND controller and press W to
confirm.
Select 360° Camera
X
confirm.
Depending on whether position D or R is
engaged, the following is shown:
a split screen with top view and the
R
image from the front camera or
a split screen with top view and the
R
image from the rear view camera
For further information about the COMAND
Controller, see the separate COMAND
operating instructions.
and press W to
