6

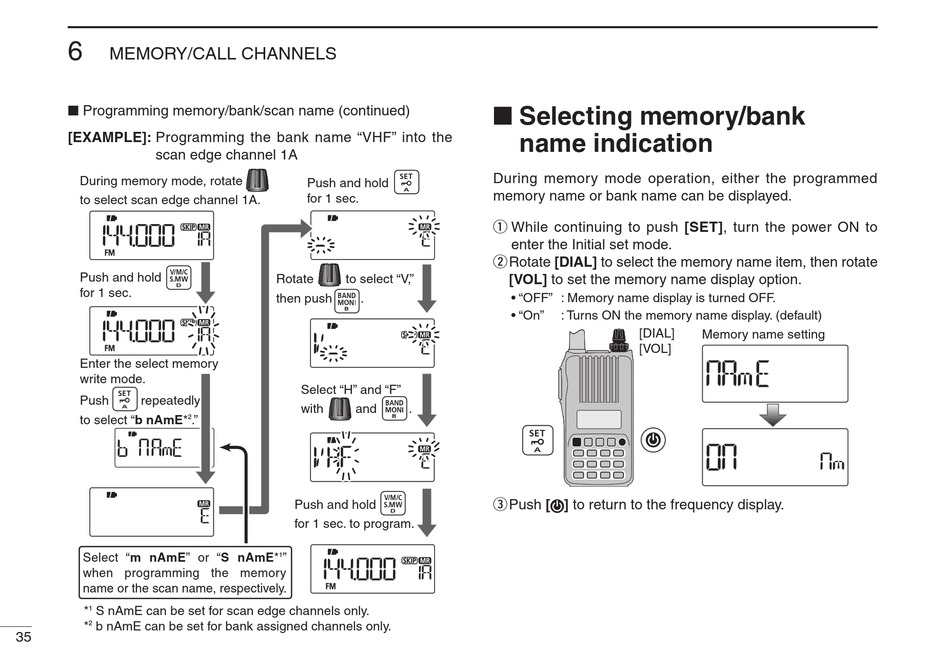

MEMORY/CALL CHANNELS
■ Programming memory/bank/scan name (continued)
[EXAMPLE]: Programming the bank name "VHF" into the
scan edge channel 1A
During memory mode, rotate
to select scan edge channel 1A.
Push and hold
for 1 sec.
Enter the select memory
write mode.
Push repeatedly
to select "b nAmE* ."
2
Select "m nAmE" or "S nAmE*
when programming the memory
name or the scan name, respectively.
* S nAmE can be set for scan edge channels only.
1
* b nAmE can be set for bank assigned channels only.
2
35
Push and hold
for 1 sec.
Rotate to select "V,"
then push .
Select "H" and "F"
with and .
Push and hold
for 1 sec. to program.
"
1
■ Selecting memory/bank
name indication
During memory mode operation, either the programmed
memory name or bank name can be displayed.
q While continuing to push [SET], turn the power ON to
enter the Initial set mode.
w Rotate [DIAL] to select the memory name item, then rotate
[VOL] to set the memory name display option.
• "OFF" : Memory name display is turned OFF.
• "On" : Turns ON the memory name display. (default)
[DIAL]
[VOL]
e Push [ ] to return to the frequency display.
Memory name setting
