Heath Zenith SL-5675 Installation Instructions

READ ALL INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTALLATION.
NOTE: All wiring must be run in accordance with the National Electrical Code (Canadian Electrical Code in Canada) through conduit
or another acceptable means. Contact a qualified electrician if there is any question as to the suitability of the system.
Lamp in Fixture Contains Mercury. Dispose Accord-
ing to Local, State, or Federal Laws.
WARNING: Turn off the circuit breaker or remove
the fuse protecting the lighting circuit.
1. Install light fixture to an approved outdoor weatherproof
junction box cover plate (not included).
2. Connect the fixture wires to the junction box wires
(black to black, white to white, and the fixture ground
wire to the junction box ground wire). Secure with the
wire connectors provided.
3. Secure the cover plate to the outdoor weatherproof
junction box (not included) with two screws (not in-
cluded).
4. Apply weatherproof silicone caulking around cover
plate to provide a watertight seal.
5. Adjust the fixture to aim in the general direction desired.
If possible, turn the light fixture so the photocontrol
does not point at another light or reflective surface near the fixture (*Photocontrol is only available on selected models).
6. When you have the floodlight aimed where you want it, tighten the lock nut on the mounting arm and the locking screw
at the fixture joint.
7. Release the clasp that holds the lens closed.
Model SL-5675 - Install ONLY a 100 watt mercury vapor type H38 lamp (provided).
Model SL-5677 - Install ONLY a 70 watt high pressure sodium type S62 lamp (provided).
8. Close the lens and lock it shut with the clasp.
To test operation during daylight, cover the photocontrol with black tape. Turn on the power. The light will take up to ten min-
utes to reach full brightness. Remove the tape from the photocontrol and your unit will operate automatically—on at dusk, off
at dawn.
If your floodlight does not turn on automatically or cycles on and off, it could be affected by other nearby lights or is seeing its
own light. In either case, loosen the plastic nut that secures the photocontrol. Slide the metal reflector under the nut so that
the reflector causes the photocontrol to look away from nearby lights or reflective surfaces and retighten the plastic nut.
WARNING: Risk of fire. Do not aim the bulbs at a combustible surface within 3 ft. (1 m).
This is a "Limited Warranty" which gives you specific legal rights. You may also have other rights which vary from state to state or province to province.
For a period of one year from the date of purchase, any malfunction caused by factory defective parts or workmanship will be corrected at no charge
to you.
Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs, batteries, and other expendable items are
not covered by this warranty. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This
warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, unauthorized service, or return shipping charges.
This warranty covers only HeathCo LLC assembled products and is not extended to other equipment and components that a customer uses in con-
junction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRE-
SENTATION OR CONDITION OF MERCHANT ABILITY OR THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND
SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE PART OF HEATHCO
LLC FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS
OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. Please keep your dated sales receipt, it is required for all warranty requests.
© 2008 HeathCo LLC
Models SL-5675
SL-5677

Installation Instructions

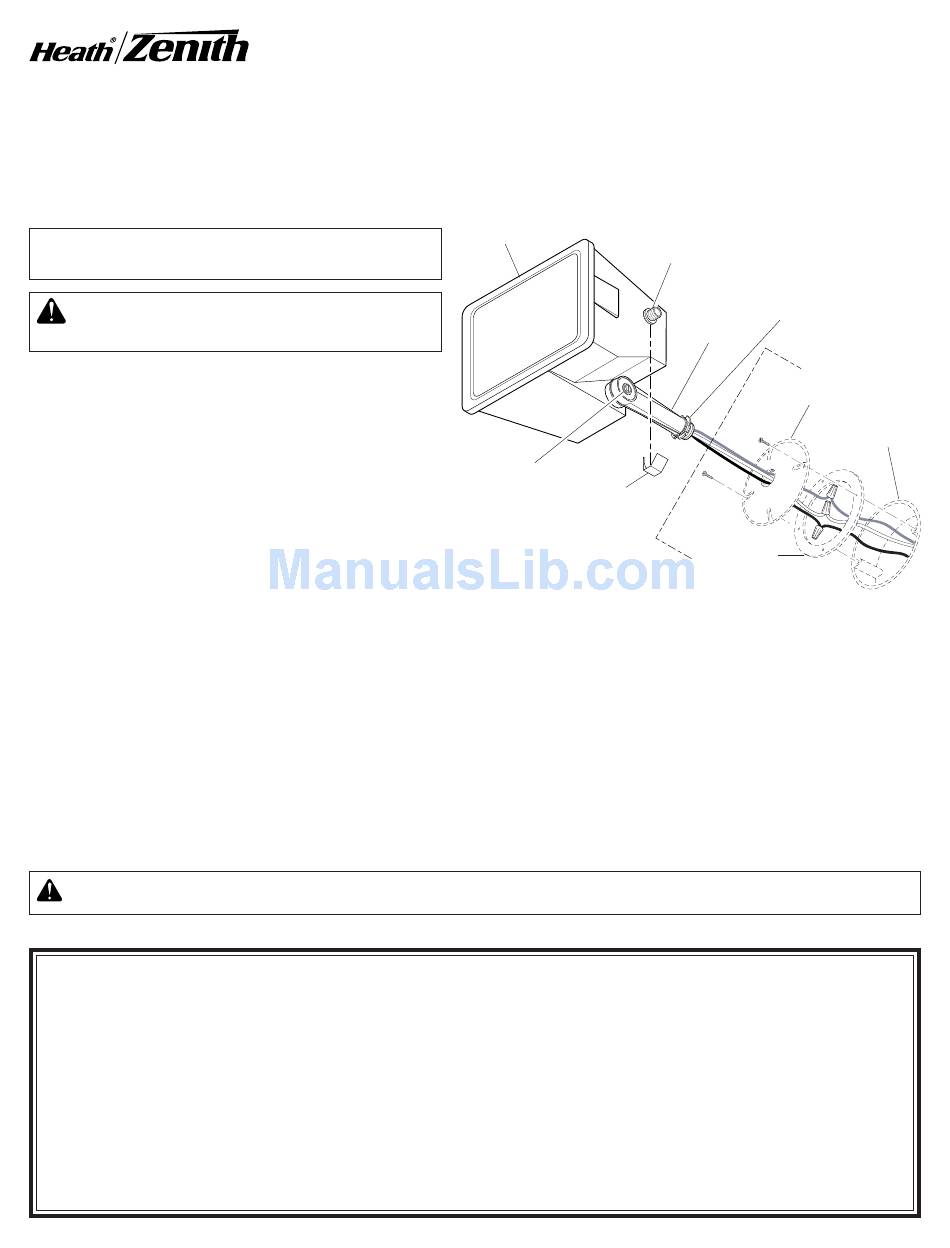

Fixture
Locking
Screw
In Case of Difficulty
ONE YEAR LIMITED WARRANTY
70 Watt High Pressure
Sodium Floodlight
Photocontrol (Location of photocontrol
may vary from that shown)
Mounting
Arm
Metal Reflector
Gasket
Lock Nut
Cover Plate
Junction
Box
598-1063-03
