Heath Zenith SL-5511 Owner's Manual

Heath zenith compact 150 watt motion sensing halogen owner's manual.

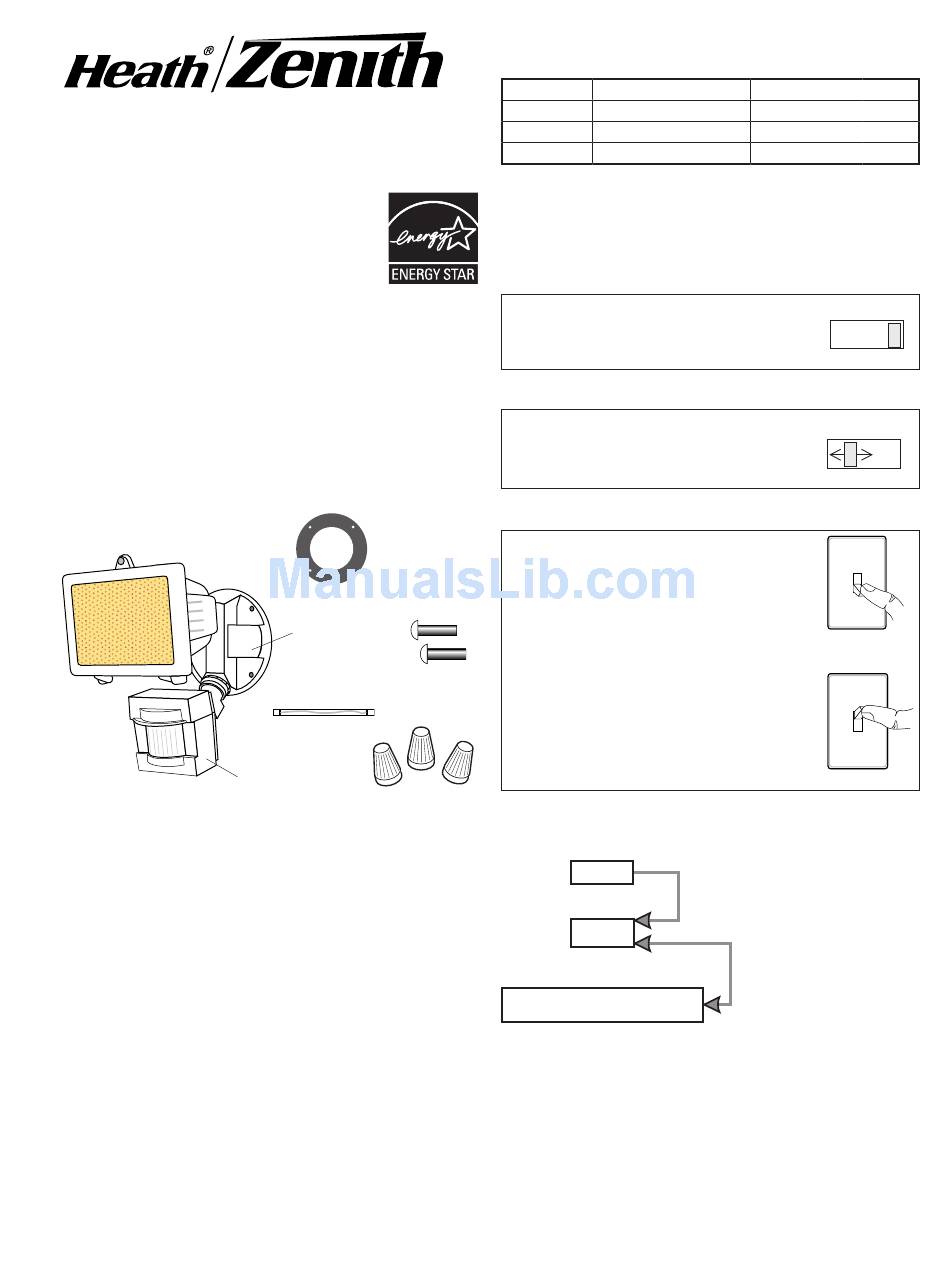

Compact 150 Watt
Motion Sensing Halogen
Model SL-5511
The Motion Sensor Quartz Security Light turns on 150
watts of quartz-halogen lighting when motion is detected
and then, after a selectable period of time, automati-
cally turns the lighting off. The built-in photocell keeps
the lighting off during daylight hours.
This package includes:
Sensor
Light Fixture
Requirements
• The light control requires 120-volts AC. Do not con-
nect through a dimmer or other electronic switch.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
• The backplate has knockouts so the sensor can be
mounted on most junction boxes.
• In some applications a universal adaptor plate may
be needed. Adaptors are available at Home Centers
and Electrical Supply Stores.
© 2007 HeathCo LLC
Cover Plate
Gasket
Cover
Plate
4 Screws
(2 sizes)
Halogen
Bulb
3 Wire
Connectors
OPERATION
Mode:
On-Time
Test
5 Seconds
Auto
1, 5, or 10 Min
Manual
Until Dawn*
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
the circuitry to calibrate.
Put the ON-TIME switch on the bottom
of the sensor in the TEST position.
Put the ON-TIME switch in the 1, 5,
or 10 minute position.
MANUAL MODE
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 10
position.
Mode Switching Summary
TEST
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the
calibration time (1
/
1
2
AUTO mode.
Works:
Day Night
x
/
minutes for
1
2
TEST
ON-TIME
10 5 1 TEST
AUTO
ON-TIME
10 5 1 TEST
1 Second OFF
then...
... back on.
Move ON-TIME Switch
to 1, 5, or 10 minutes
Flip switch off for
one second then
back on*
min.) the control will be in the
595-5574-06
x
x
x

   Related Manuals for Heath Zenith SL-5511

   Summary of Contents for Heath Zenith SL-5511

  • Page 1

    Compact 150 Watt Motion Sensing Halogen Model SL-5511 The Motion Sensor Quartz Security Light turns on 150 watts of quartz-halogen lighting when motion is detected and then, after a selectable period of time, automati- cally turns the lighting off. The built-in photocell keeps the lighting off during daylight hours.

  • Page 2

    INSTALLATION For easy installation, select an existing light with a wall switch for replacement. For best performance, locate the fixture about 8 ft. (2.4 m) above the ground. CAUTION: The sensor must be mounted below the lamp housing for wall installations. ❒ Drill out the holes if needed to mount the backplate to the junction box.

  • Page 3

    TEST AND ADJUSTMENT ❒ Turn on the circuit breaker and light switch. NOTE: Sensor requires about 1 before it will detect motion. When first turned on, wait about 1 minutes. ❒ Turn the SENSITIVITY (SENS) control to the mid position and the ON-TIME control to the TEST position.

  • Page 4

    TROUBLESHOOTING GUIDE SYMPTOM POSSIBLE CAUSE Light will not 1. Light switch is turned off. come on. 2. Halogen lamp is loose or burned out. 3. Fuse is blown or circuit breaker is turned off. 4. Daylight turn-off is in effect (Recheck after dark).

  • Page 5

    Luz Halógena Compacta Detectora de Movimiento de 150 Vatios Modelo SL-5511 El Detector de Movimiento y Control de Faro Reflex prende 150 vatios de luz halógeno de cuarzo cuando de- tecta movimiento y luego, después de 1, 5 ó 10 minutos, se apaga automáticamente.

  • Page 6

    INSTALACION Para una fácil instalación escoja una luz con un interruptor de pared. Para un mejor funcionamiento, instale el aparato a casi 2,4 m del suelo. CUIDADO: El detector debe ser instalado debajo de la caja de la lámpara para instalaciones sobre pared. ❒ Perfore los agujeros que se necesiten para montar la placa de atrás a la caja de empalmes.

  • Page 7

    PRUEBA Y AJUSTE ❒ Prenda el cortacircuitos y el interruptor de luz. NOTA: El detector tiene un período de cerca de 1 minutos de calentamiento antes de detectar movimiento. Cuando lo prenda por primera vez, espere 1 minutos. ❒ Gire el control de sensibilidad (SENS) a la mid, y el control de tiempo (ON-TIME) a la posición de prueba (TEST).

  • Page 8

    GUIA DE INVESTIGACION DE AVERIAS SINTOMA POSIBLE CAUSA La luz no se 1. El interruptor de luz está apagado. enciende. 2. La lámpara halógena está floja o fun- dida. 3. El fusible está quemado o el corta-cir- cuitos está apagado. 4.

  • Page 9

    Luminaire halogène com- pact de 150 W à détecteur de mouvement Modèle SL-5511 Le luminaire de sécurité au quartz à détecteur de mou- vement déclenche un éclairage quartz-halogène de 150 W dès qu’un mouvement est détecté, puis éteint l’éclairage automatiquement selon une période de temps préréglée.

  • Page 10

    INSTALLATION Pour une installation facile, remplacer un luminaire existant raccordé à un interrupteur. Pour une performance supérieure, placer le luminaire à environ 2,4 m au-dessus du sol. AVERTISSEMENT: Pour une installation au mur, le capteur doit être placé sous le boîtier du luminaire. ❒ Percez les trous nécessaires au montage de la plaque ar- rière à...

  • Page 11

    ESSAIS ET RÉGLAGES ❒ Mettre en circuit le disjoncteur et l’interrupteur d’éclairage. REMARQUE: Le capteur doit se réchauffer 1 avant de pouvoir détecter le mouvement. Lorsque l’appareil est mis en circuit ou changé de mode, attendre 1 minute. ❒ Tourner la commande de sensibilité (SENS) à la position intermédiaire et la commande de temps en circuit (ON-TIME) à...

  • Page 12

    GUIDE DE DÉPANNAGE SYMPTÔME CAUSE POSSIBLE Les lampes 1. L’interrupteur d’éclairage est en position ne s’allument hors circuit. pas. 2. Les projecteurs sont brûles ou desser- rés. 3. Le fusible du circuit a sauté ou le dis- joncteur est en position hors circuit. 4.
