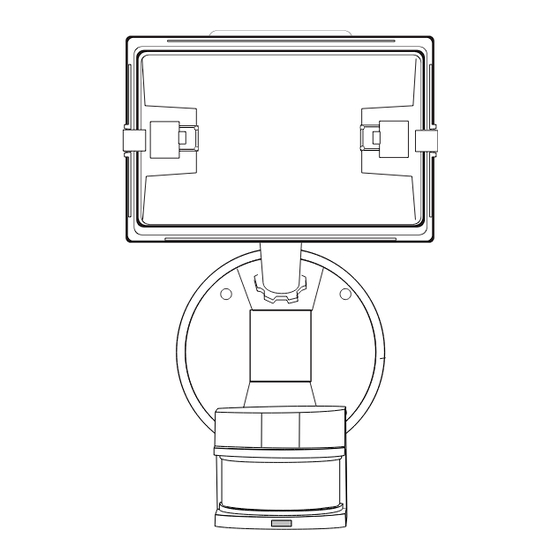

Heath Zenith SL-5311 Owner's Manual

Professional
Motion Sensor Quartz
Security Light
Model SL-5311
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• D B Timer.
®
ual rite
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).

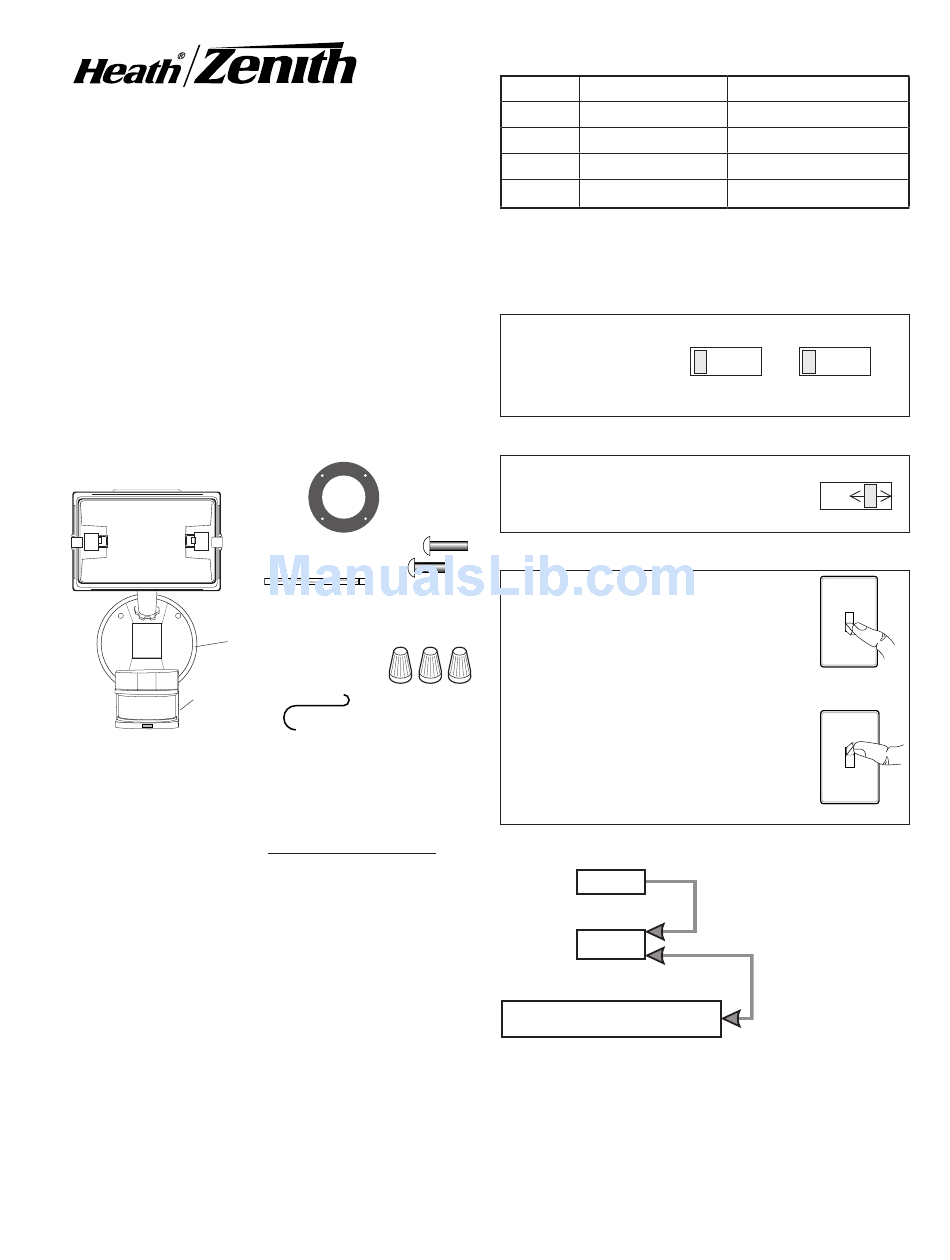

This package includes:
Cover
Plate
Sensor
Light Control
Requirements
• The light control requires 120-volts AC.
• This fixture is designed for wall mounting only.
• If you want to use Manual Override, the control must
be wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
• The backplate has knockouts so the sensor can be
mounted on most junction boxes.
• In some applications a universal adaptor plate may
be needed. Adaptors are available at Home Centers
and Electrical Supply Stores.
© 2007 HeathCo LLC
Cover Plate
Gasket
6 Screws
Halogen
(3 sizes)
Bulb
3 Wire Nuts
S-hook
OPERATION
Mode: On-Time:
Test
5 Sec
Normal 1, 5, 20 min.
Manual Until Dawn*
Accent
3, 6 Hr. to Dawn
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
the circuitry to calibrate.
Put ON-TIME switch
on the sensor bottom
to TEST and the D -
ual
B switch OFF.
®
rite
Put the ON-TIME switch in the 1, 5, or
20 minute position.
MANUAL MODE
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 20
position.
Mode Switching Summary
TEST
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the cali-
bration time the control will be in the AUTO mode.
D B
ual rite
Light comes on half bright for selected time after dusk
(Off, 3 hr., 6 hr., dusk to dawn). If motion is sensed, the
light turns on full bright for the ON-TIME (1, 5, or 20
minutes) then returns to dim mode.
Works: Day Night
x
/ minutes for
1
2
TEST
ON-TIME D B
ual rite
Off 3 6 Dusk to
TEST 1 5 20
Dawn
AUTO
ON-TIME
TEST 1 5 20
1 Second OFF
then...
... back on.
Move ON-TIME Switch
to 1, 5, or 20 minutes
Flip light switch
off for one second
then back on*
TIMER
®
595-5497-12
