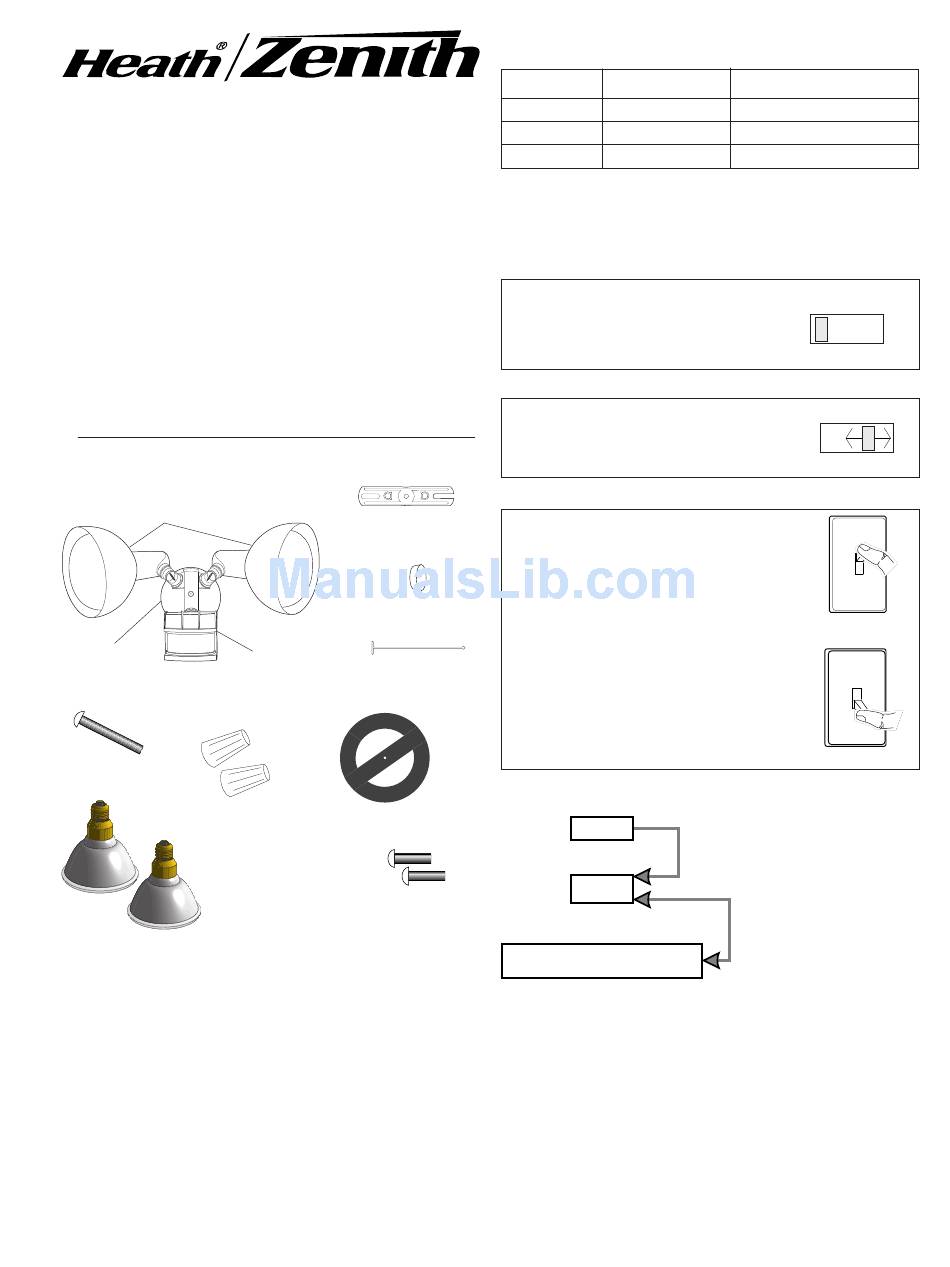

Heath Zenith SL-5330 User Manual

Motion Sensor
Light Control with
Protective Lamp
Shields
Model SL-5330
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight hours.
This package includes:
Lamp Holders
Cover
Plate
Light Control
Mounting Bolt
2 Wire
Connectors
2 PAR Lamps
Requirements
• The Light Control requires 120-volts AC.
• If you want to use the Manual Mode, the control must
be wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
© 2003 DESA Specialty Products™
Mounting Strap
Rubber Plug
Sensor
Plastic Hanger
Gasket
6 Screws
(3 sizes included)
OPERATION
Mode: On-Time:
Test 5 Sec
Auto 1, 5, 20 min.
Manual Until Dawn*
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
the circuitry to calibrate.
Put ON-TIME switch on the sensor
bottom to TEST.
Put the ON-TIME switch in the 1, 5
or 20 minute position.
MANUAL MODE
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 20
position.
Mode Switching Summary
TEST
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the
calibration time the control will be in the AUTO mode.
Works: Day
x
1
/ minutes for
2
TEST
ON-TIME
TEST 1 5 20
AUTO
ON-TIME
TEST 1 5 20
1 Second OFF
then...
... back on.
Move ON-TIME Switch to
1, 5 or 20 minutes
Flip light switch off
for one second then
back on*
598-1131-01
Night
x
x
x
