Model SL-6007
• Operational range of up to 100 feet.
• Controls all Heath
of products.
• Adds programmable ON/OFF function for up to
16 channels of remote controlled products.
• UL/cUL listed power supply.
• FCC/IC tested and approved.
• 12/24 Hour Digital Clock Display.
• 9V battery backup to prevent program loss.
• Flash control on compatible receivers when using the Panic feature.
Battery Installation and Battery Backup
The SL-6007 is designed for 120VAC operation using the included DC power
converter, but has the added feature of an onboard battery backup to prevent
program memory loss. To install rechargeable battery:
1. Remove battery cover on rear of hous-
ing by sliding cover down.
2. Install rechargeable 9V battery accord-
ing to polarity markings.
3. Close battery compartment by revers-
ing the previous instructions.
Upon power failure, the battery backup will
automatically shut down all non-essential
functions. The display and keypad will not
work. The battery backup will last in excess of
5 hours. When power is restored, the unit will
restart the display and set all channels to the
OFF position. All programming will be main-
tained unless the back up reserve is de-
pleted. If the battery is depleted, reprogram-
ming of the time and automated functions will
again be required.
© 2002 DESA International
Features
®
/Zenith Remote Home™ line
Plug-In Control
Battery
Cover
9 Volt
Battery
9V Battery
9 Volt Battery Connector

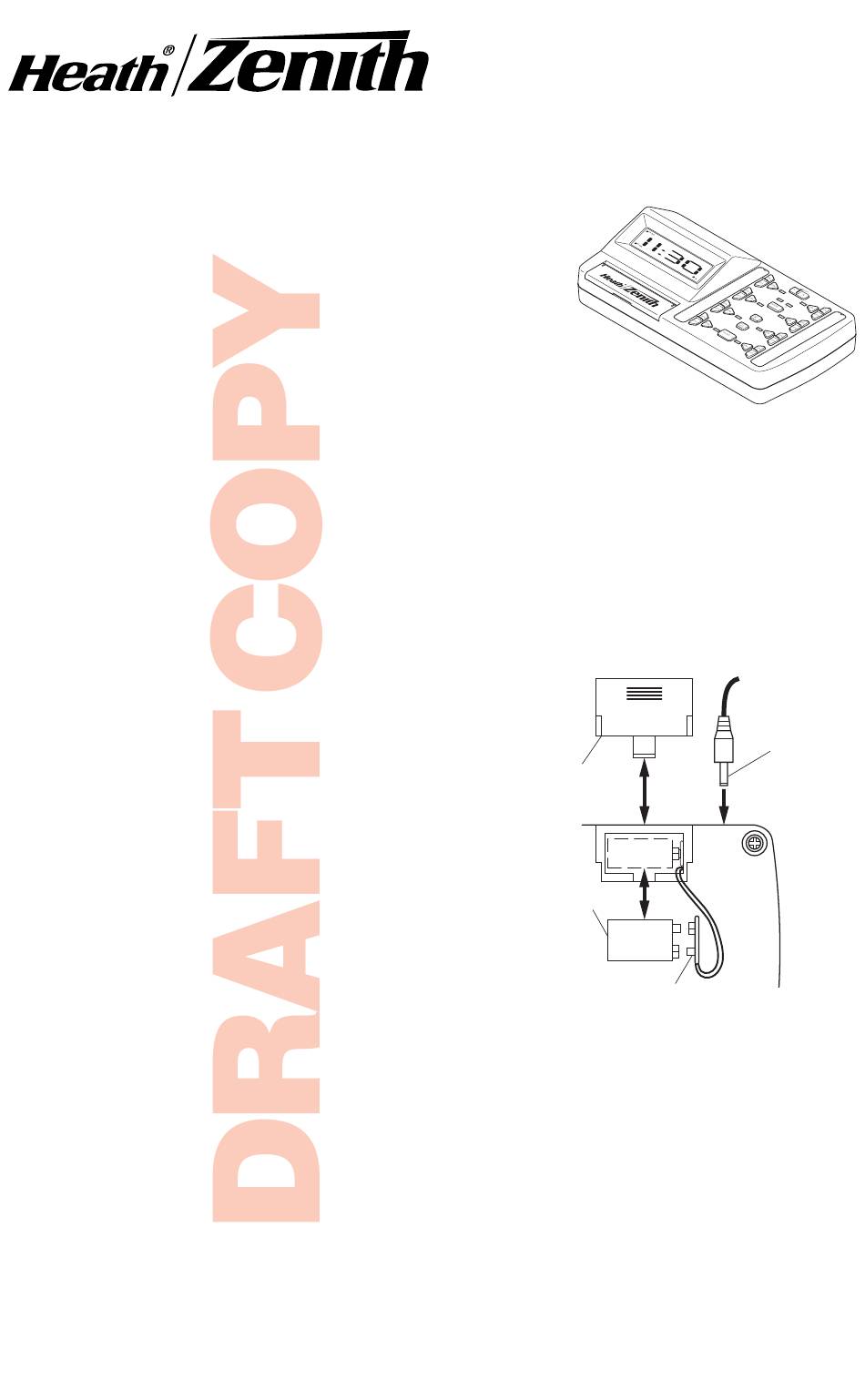

Installing 9 Volt Rechargable
Battery and DC Power
Connector
Panel
DC Power
Connector
598-1136-00
