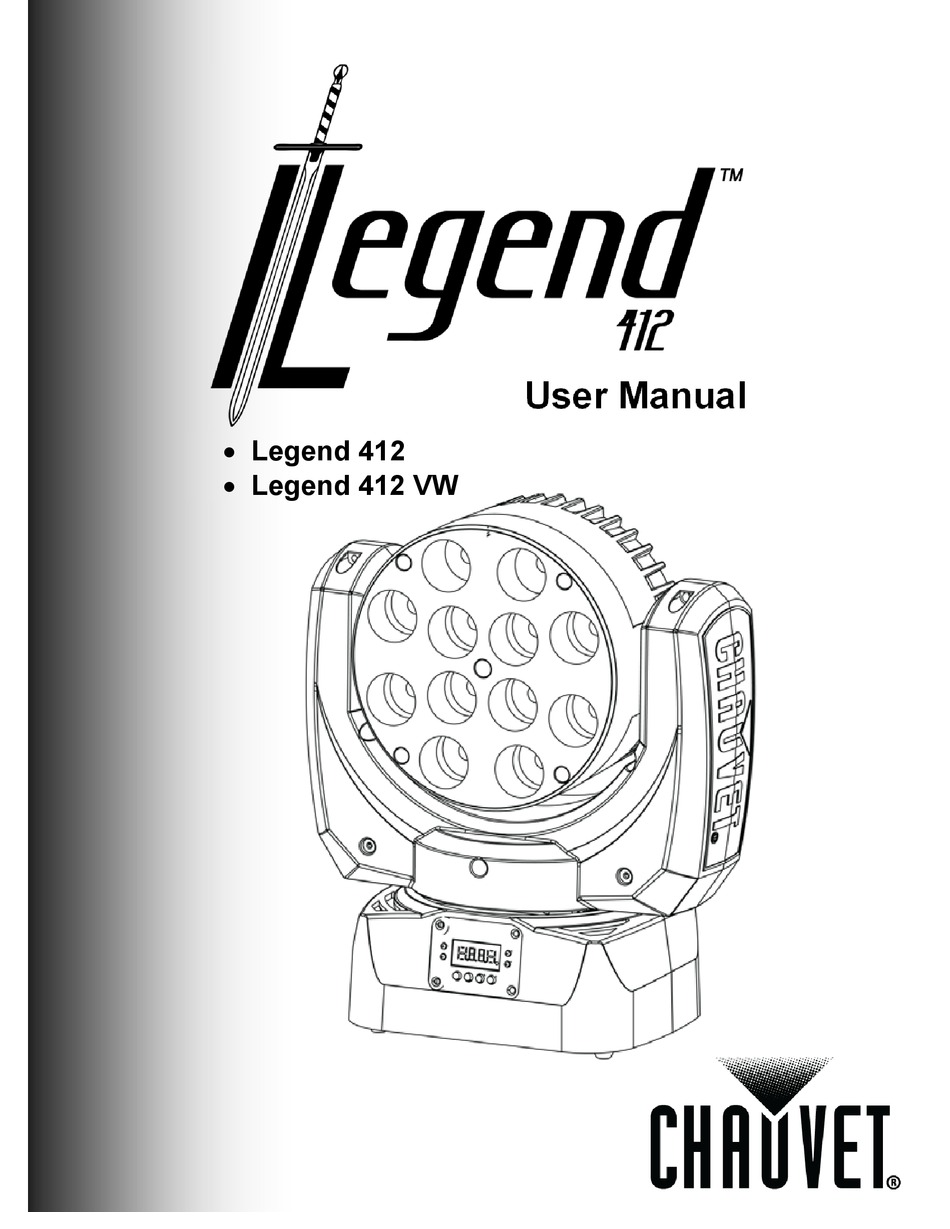

Page 1: User Manual
User Manual Legend 412 Legend 412 VW... - Page 2 The Legend™ 412 Series User Manual Rev. 04 covers the description, safety precautions, installation, programming, operation, and maintenance of the Legend™ 412 and the Legend 412 VW. CHAUVET® released this edition of the Legend™ 412 Series User Manual in December 2011.
-
Page 3: Table Of Contents
Product Mounting Diagram ......................10 4. Operation ......................11 Control Panel Description ....................11 Control Options Legend 412 ...................... 11 Control Options Legend 412 VW ....................11 Programming ........................11 DMX Personality ........................11 DMX Control ..........................12 ... - Page 4 Table of Contents Reset ............................14 Factory Defaults ........................14 Menu Map (Legend™ 412) ....................15 Menu Map (Legend™ 412 VW) ..................17 DMX Values (Legend™ 412) .................... 19 12 Channel ..........................19 28 Channel ..........................20 ...
-
Page 5: Before You Begin
CHAUVET®. Failure to notify the carrier in a timely manner may invalidate your claim. In addition, keep the container and all the packing material for inspection. -
Page 6: Icon Indications
Before You Begin Icon Indications Icon This icon indicates . . . This icon indicates critical installation, configuration, or operation information. Failure to comply with this information may render the product partially or completely inoperative, damage third-party equipment, or cause harm to the user. This icon indicates important installation or configuration information. -
Page 7: Safety Notes
There are no user-serviceable parts in this product. Any reference to servicing in this User Manual applies only to properly certified CHAUVET® technicians. Do not open the housing or attempt any repairs unless you are certified. -
Page 8: Introduction
Introduction 2. Introduction Product The Legend™ 412 Series is a high power LED moving head wash light with four (4) independent quadrants of control. It is available in a RGBW version or a VW (variable Description white) version with quad color LEDs. The product consists of a base and a moving head on a yoke. -
Page 9: Product Overview
Introduction Product Overview DMX In/Out Power/Fuse Rear View Side View Control Panel Front View Legend™ 412 Series User Manual Rev. 04... -
Page 10: Product Dimensions
Introduction Product Dimensions 6.5 in 165 mm 12.0 in 304 mm 3.1 in 80 mm 7.2 in 182 mm 10.1 in 257 mm 11.2 in 285 mm 10.6 in 269 mm Legend™ 412 Series User Manual Rev. 04... -
Page 11: Product Dimensions (Cont.)
Introduction Product Dimensions (Cont.) 4.5 in 114 mm 5.5 in 140 mm 3.5 in 89 mm Legend™ 412 Series User Manual Rev. 04... -
Page 12: Setup
The listed current rating indicates the maximum current draw during normal operation. For more information, you may download the document Sizing the Circuit Breakers from the CHAUVET® website: www.chauvetpro.com. Never connect this product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch. -
Page 13: Dmx Linking
If you are not familiar with or need more information about DMX standards, master/slave connectivity, or the DMX cables needed to link this product to a DMX controller, download the document DMX Primer from the CHAUVET® website: www.chauvetpro.com DO NOT connect a DMX controller to the products operating in Master/Slave mode. -
Page 14: Mounting
Always mount this product in any safe position making sure there is adequate room for ventilation, configuration, and maintenance. Rigging CHAUVET® recommends using the following general guidelines when mounting this product. When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance. -
Page 15: Operation
18 units in the 28 channel ADVANCED personality. Control Options You can set the Legend™ 412 VW start address in the 001~512 DMX range. This enables Legend 412 VW control of up to 25 units in the 20 channel ADVANCED personality. Programming... -
Page 16: Dmx Control
Operation DMX Control In this mode, each product will respond to a unique starting address from the DMX controller. All products with the same starting address will respond in unison. 1. Select a DMX personality as shown in the DMX Personality section. -
Page 17: Master/Slave
Operation Master/Slave The Master/Slave mode allows a group of Legend™ 412’s or Legend™ 412 VW’s (the slave units) to simultaneously duplicate the output of another Legend™ 412 or Legend™ 412 VW (the master unit) without a DMX controller. 1. Set each of the slave units: a. -
Page 18: Led Temperature
Operation LED Temperature This option allows the user to view the LED temperature (C°) of the Legend™ 412 or the Legend™ 412 VW. 1. Go to Ledt. 2. Press <ENTER>. CPU Temperature This option allows the user to view the CPU temperature (C°) of the Legend™ 412 or the Legend™... -
Page 19: Menu Map (Legend™ 412)
Operation Menu Map (Legend™ 412) Main Level Programming Levels Description Addr 1~512 Sets the DMX starting address 12Ch Sets the 12 channel personality Chnd 28Ch Sets the 28 channel personality NASt Sets product to Master in Slave mode SLnd SL 1 Sets product to Slave 1 in Slave mode SL 2 Sets product to Slave 2 in Slave mode... - Page 20 Operation Main Level Programming Levels Description Sets Pan 0~630° tILt Sets Pan 0~200° Red1 Sets Quadrant 1 Red LED intensity Gre1 Sets Quadrant 1 Green LED intensity bLu1 Sets Quadrant 1 Blue LED intensity UhI1 Sets Quadrant 1 White LED intensity Red2 Sets Quadrant 2 Red LED intensity Gre2...
-
Page 21: Menu Map (Legend™ 412 Vw)
Operation Menu Map (Legend™ 412 VW) Main Level Programming Levels Description Addr 1~512 Sets the DMX starting address 10Ch Sets the 10 channel personality Chnd 20Ch Sets the 20 channel personality NASt Sets product to Master in Slave mode SLnd SL 1 Sets product to Slave 1 in Slave mode SL 2... - Page 22 Operation Main Level Programming Levels Description Sets Pan 0~630° tILt Sets Pan 0~200° Quadrant 1 warm white LED intensity Quadrant 1 cool white LED intensity Quadrant 2 warm white LED intensity Quadrant 2 cool white LED intensity NAnu 0~255 Quadrant 3 warm white LED intensity Quadrant 3 cool white LED intensity Quadrant 4 warm white LED intensity Quadrant 4 cool white LED intensity...
-
Page 23: Dmx Values (Legend™ 412)
Operation DMX Values (Legend™ 412) 12 Channel Channel Function Value Percent/Setting (Basic Mode) 000 255 0~100% Pan Fine 000 255 0~100% Tilt 000 255 0~100% Tilt Fine 000 255 0~100% Pan/Tilt Speed 000 255 0~100% Dimmer 000 ... -
Page 24: Channel
Operation 28 Channel Channel Function Value Percent/Setting (Advanced Mode) 000 255 0~100% Pan Fine 000 255 0~100% Tilt 000 255 0~100% Tilt Fine 000 255 0~100% Pan/Tilt Speed 000 255 0~100% Dimmer 000 255 0~100% 000 ... -
Page 25: 28 Channel Cont
Operation 28 Channel Cont. 000 019 No Function 020 029 Macro 1 (Advanced Mode) 030 039 Macro 2 040 049 Macro 3 050 059 Macro 4 060 069 Macro 5 070 079 Macro 6 080 ... -
Page 26: Channel Cont
Operation 28 Channel Cont. Pan/Tilt Macro Speed 000 255 0~100% (Advanced Mode) 000 007 No function 008 069 Reset Pan/Tilt 070 129 Reset All 130 190 Move in Black Control 191 205 Reserved for future use 206 ... -
Page 27: Dmx Values (Legend™ 412 Vw)
Operation DMX Values (Legend™ 412 VW) 10 Channel Channel Function Value Percent/Setting (Basic Mode) 000 255 0~100% Pan Fine 000 255 0~100% Tilt 000 255 0~100% Tilt Fine 000 255 0~100% Pan/Tilt Speed 000 255 0~100% Dimmer 000 ... -
Page 28: Channel
Operation 20 Channel Channel Function Value Percent/Setting (Advanced Mode) 000 255 0~100% Pan Fine 000 255 0~100% Tilt 000 255 0~100% Tilt Fine 000 255 0~100% Pan/Tilt Speed 000 255 0~100% Dimmer 000 255 0~100% 000 ... -
Page 29: 20 Channel Cont
Operation 20 Channel Cont. 000 007 No Function 008 015 Macro 1 (Advanced Mode) 016 023 Macro 2 024 031 Macro 3 032 039 Macro 4 040 047 Macro 5 048 055 Macro 6 056 ... -
Page 30: Technical Information
Technical Information 5. Technical Information Product To maintain optimum performance and minimize wear, the user should clean this product frequently. Usage and environment are contributing factors in determining the cleaning Maintenance frequency. As a rule, the user should clean this product at least twice a month. Dust build up reduces light output performance and can cause overheating. -
Page 31: Troubleshooting Guide
Faulty Display/Main board Send unit for repair If you still experience technical problems after trying the above solutions or if you need to send the product for repair, contact CHAUVET® Technical Support. Legend™ 412 Series User Manual Rev. 04 -27-... -
Page 32: Returns Procedure
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. As a suggestion, proper FedEx packing or double-boxing is the method CHAUVET® recommends. CHAUVET® reserves the right to use its own discretion to repair or replace returned product(s). Contact Us World Headquarters United Kingdom &... -
Page 33: Technical Specifications Legend™ 412
Technical Information Technical Specifications Legend™ 412 Dimensions and Length Width Height Weight Weight 5.5 in (140 mm) 10.1 in (257 mm) 12.0 in (304 mm) 10.1 lbs (4.58 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Electrical Power Supply Type Range Voltage Selection... -
Page 34: Technical Specifications Legend™ 412 Vw
Technical Information Technical Specifications Legend™ 412 VW Dimensions and Length Width Height Weight Weight 5.5 in (140 mm) 10.1 in (257 mm) 12.0 in (304 mm) 10.1 lbs (4.58 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Electrical Power Supply Type Range... - Page 35 Technical Information CHAUVET® 5200 NW 108th Avenue Sunrise, FL 33351 (USA) (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com Legend™ 412 User Manual Rev. 04 December 2011 Legend™ 412 Series User Manual Rev. 04 -31-...
