Cpu Setup ¡I Cpu Soft Menu™¡J - Abit AX5 Instruction Booklet

Introduction of BIOS
¬ CPU Setup ¡i
The CPU can be setup through a programmable switch (CPU SOFT
MENU™ ), that replaces traditional manual hardware configuration. This feature
allows the user to complete more easily the installation procedures. You can
install the CPU without configuring any jumpers or switches. The CPU must be
setup according its specifications.
In the first option, you can press <F1> at any time to display all the items
that can be chosen for that option.
CPU Name Is:
ä Intel Pentium
ä AMD K5
ä Cyrix /IBM 6x86
ä Cyrix /IBM 6x86MX
But when you boot the computer, the mainboard will automatically detect
the CPU brand and type.
CPU SOFT MENU™ ¡j

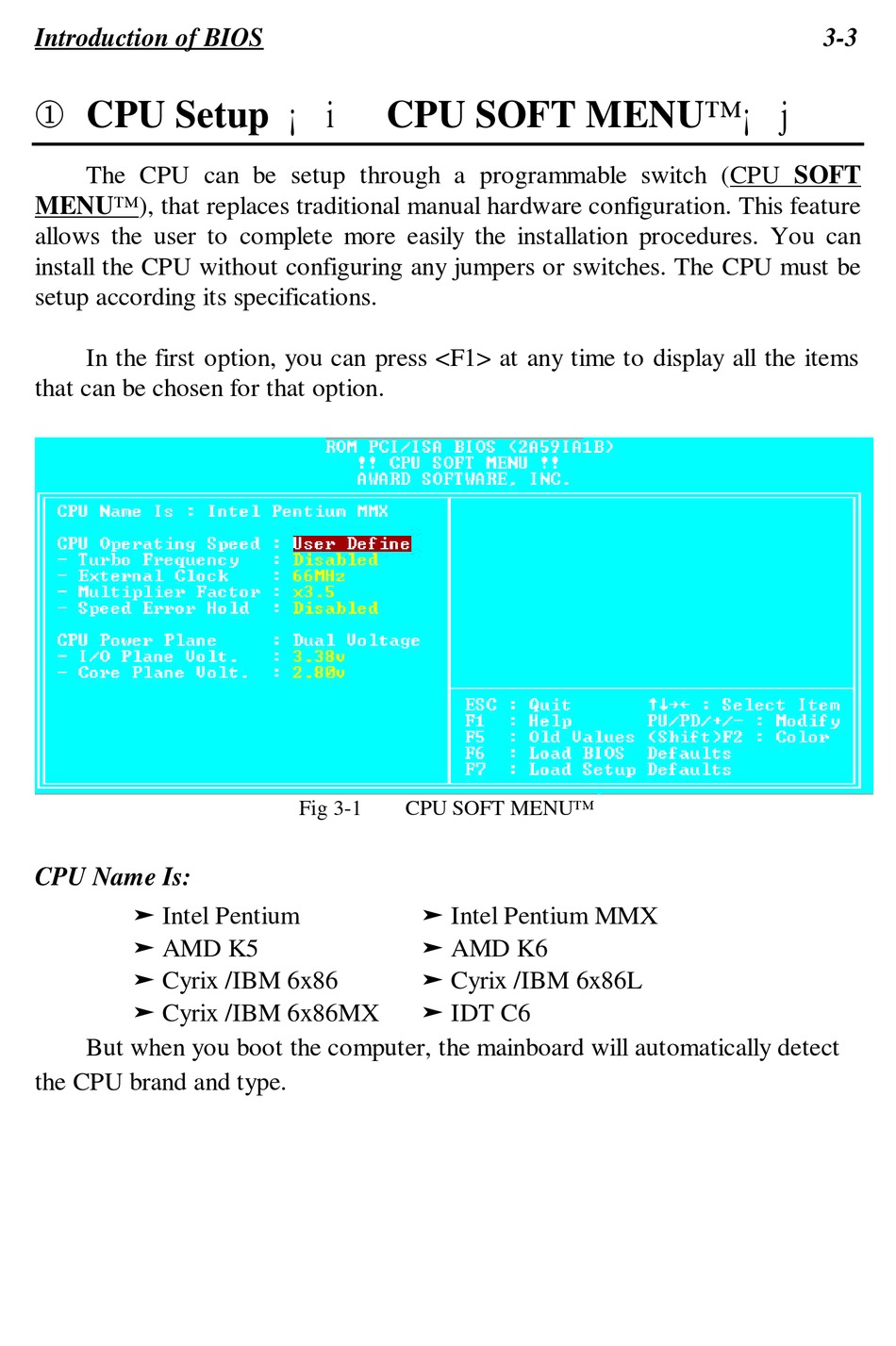

Fig 3-1 CPU SOFT MENU™
ä Intel Pentium MMX
ä AMD K6
ä Cyrix /IBM 6x86L
ä IDT C6
3-3
