1-8
® TX5
n

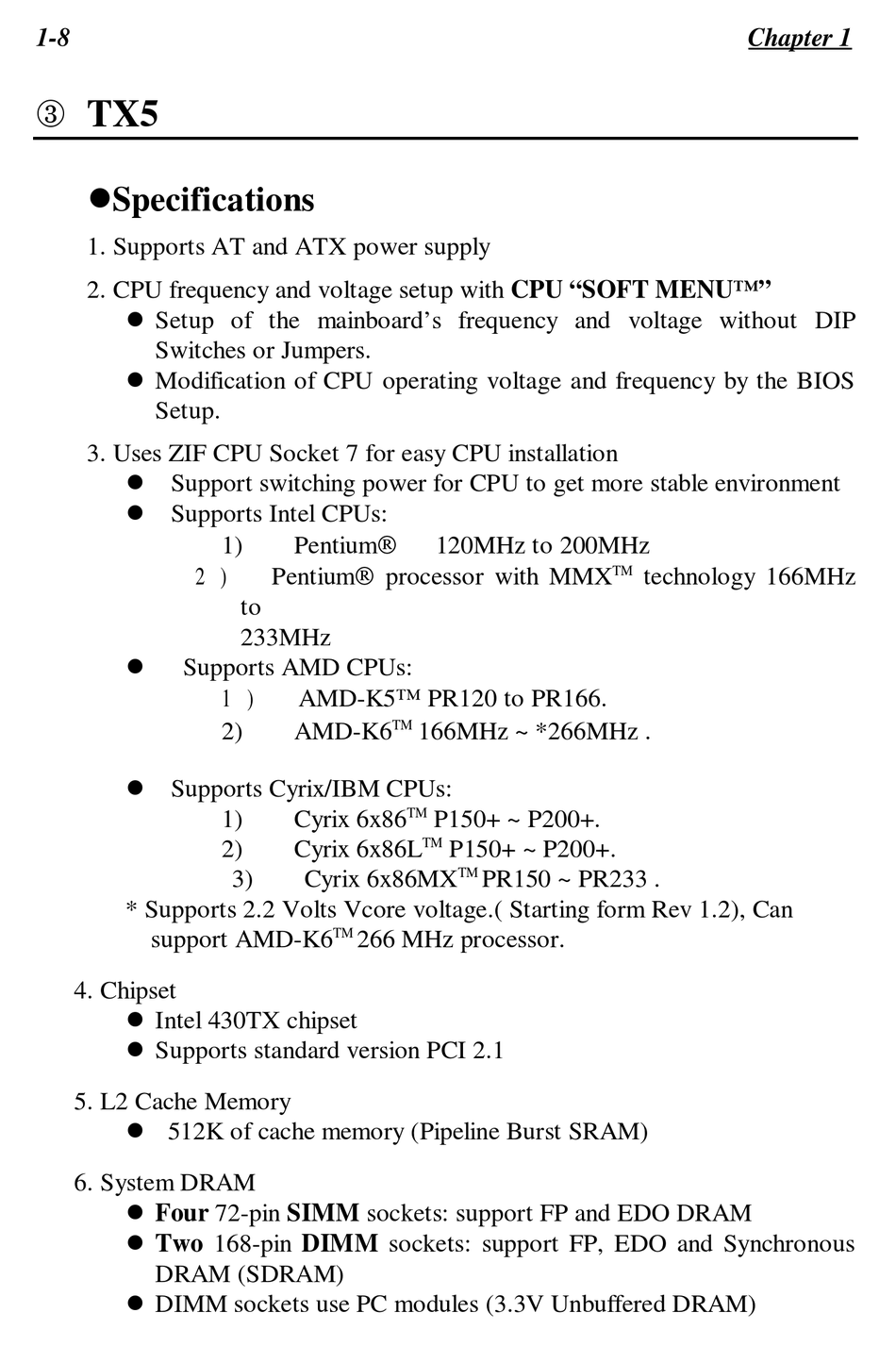

Specifications

1. Supports AT and ATX power supply
2. CPU frequency and voltage setup with CPU "SOFT MENU™"
l Setup of the mainboard's frequency and voltage without DIP
Switches or Jumpers.
l Modification of CPU operating voltage and frequency by the BIOS
Setup.
3. Uses ZIF CPU Socket 7 for easy CPU installation
l Support switching power for CPU to get more stable environment
l Supports Intel CPUs:
2 )
l
Supports AMD CPUs:
l Supports Cyrix/IBM CPUs:
* Supports 2.2 Volts Vcore voltage.( Starting form Rev 1.2), Can
support AMD-K6
4. Chipset
l Intel 430TX chipset
l Supports standard version PCI 2.1
5. L2 Cache Memory
l 512K of cache memory (Pipeline Burst SRAM)
6. System DRAM
l Four 72-pin SIMM sockets: support FP and EDO DRAM
l Two 168-pin DIMM sockets: support FP, EDO and Synchronous
DRAM (SDRAM)
l DIMM sockets use PC modules (3.3V Unbuffered DRAM)
1) Pentium
Pentium processor with MMX
to
233MHz
1 )
AMD-K5™ PR120 to PR166.
2) AMD-K6
1) Cyrix 6x86
2) Cyrix 6x86L
3) Cyrix 6x86MX
TM
266 MHz processor.
120MHz to 200MHz
TM
166MHz ~ *266MHz .
TM
P150+ ~ P200+.
TM
P150+ ~ P200+.
TM
PR150 ~ PR233 .
Chapter 1
TM
technology 166MHz
