Grizzly T23093 Instructions

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
heavy-duty industrial air drill features a paddle
trigger with a thumb lock for easy control, a
chuck, rear air exhaust, and rugged aluminum
body with a padded grip. it has an 18,000 rpM
free speed with an average 4 CFM air consump-
tion.
⁄ " Chuck
3
8
Air Flow
Valve

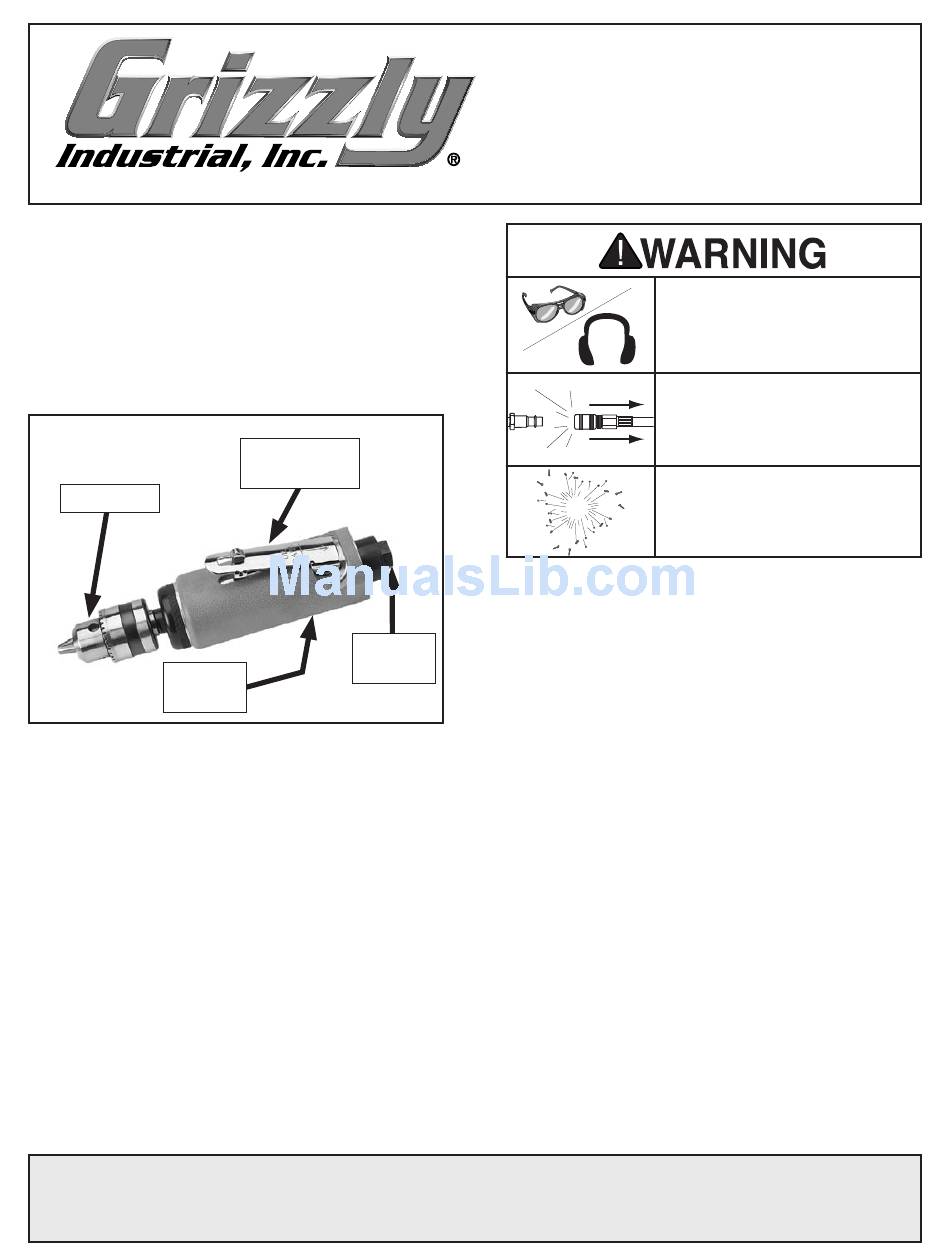

figure 1. Model t23093.
Inventory
drill w/Chuck...................................................... 1
Chuck Key ......................................................... 1
Quick-disconnect Air inlet Adapter
Bottle for oil ...................................................... 1

Specifications

Maximum Bit diameter ....................................
Maximum Free speed ..................... 18,000 rpM
Average Air Consumption ......................... 4 CFM
Air inlet size ............................................
Air hose size required ...................................
Maximum Air pressure ............................. 90 psi
WARNINg: NO pORTION Of ThIS MANUAL MAy bE REpRODUCED IN ANy ShApE
OR fORM WIThOUT ThE WRITTEN AppROvAL Of gRIzzLy INDUSTRIAL, INC.
3
thumb lock
& trigger
Air inlet
⁄ " npt
1
4
⁄ " npt ...... 1
1
4
⁄
3
8
⁄ " npt
1
4
⁄
3
8
Copyright © MArCh, 2011 By grizzly industriAl, inC.
#ts13999 printed in ChinA
MODEL T23093
INDUSTRIAL
⁄
3
8
INSTRUCTIONS
⁄ "
8
Operation
1. install the bit into the chuck, then tighten it in
place with the chuck key.
2.
to keep the moving parts lubricated, remove
the air inlet protective cap and add 3–4 drops
of tool oil into the inlet.
3. Wrap the threads of the quick-disconnect
adapter with plumber's tape, then thread it
into the air inlet.
4.
Attach the drill to clean, regulated com-
pressed air that is no greater than 90 psi.
5. Move the thumb lock forward, then press the
trigger to start the drill.
"
6.
if necessary, adjust the speed of the drill by
adjusting the air flow valve located on the
body near the air inlet.
"
7. When finished, disconnect the drill from the
compressed air system.
" AIR DRILL
EyE/EAR INJURy hAzARD!
Wear safety glasses and
hearing protection during
use of this tool!
INJURy hAzARD!
Always disconnect tool from
air to prevent unexpected
operation during service!
EXpLOSION hAzARD!
Never exceed 90 pSI!
