Record Configuration; Enable - Q-See QT426 User Manual

MAIN MENU SETUP GUIDE
QT426 User Manual

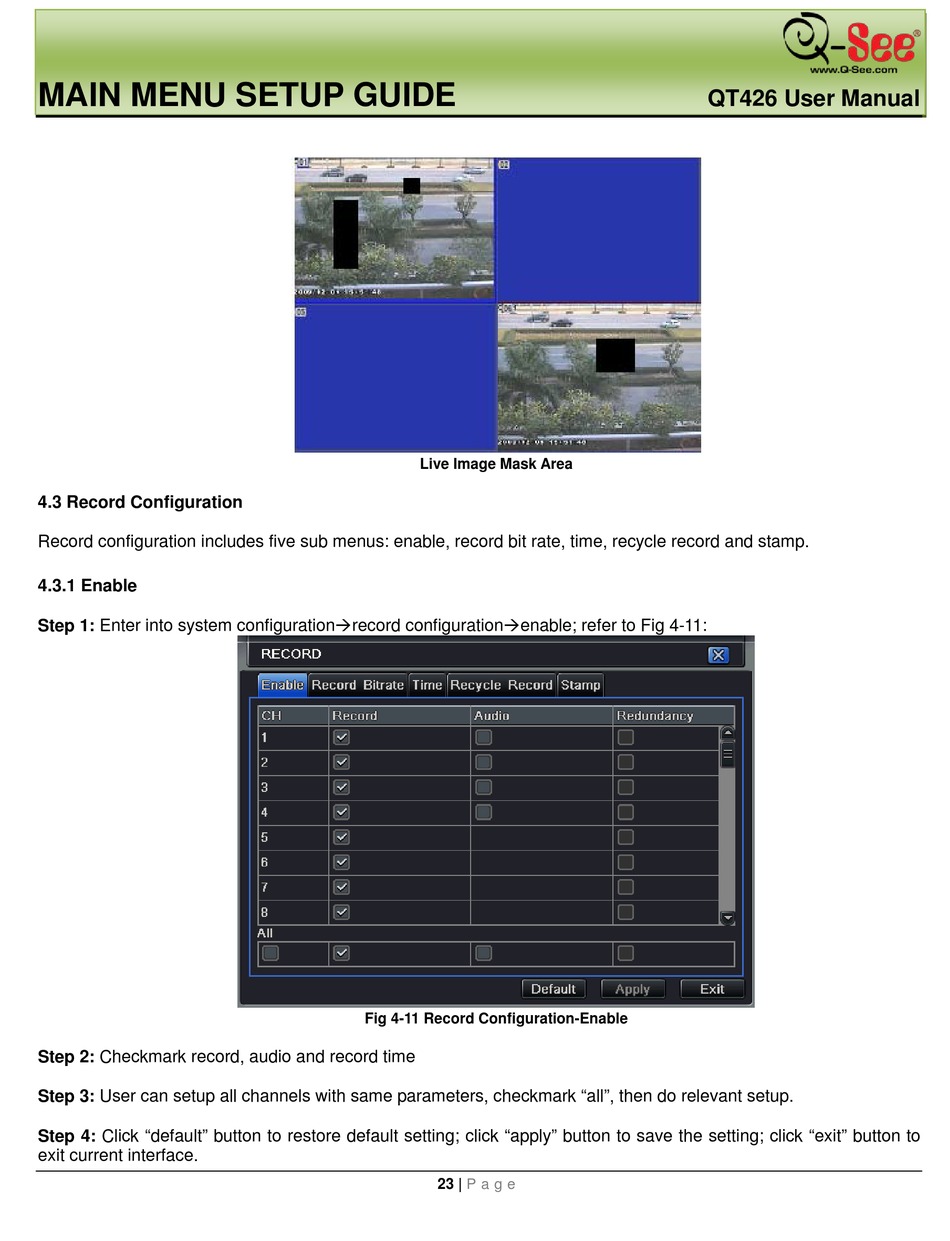

Live Image Mask Area

4.3 Record Configuration

Record configuration includes five sub menus: enable, record bit rate, time, recycle record and stamp.

4.3.1 Enable

Step 1: Enter into system configurationrecord configurationenable; refer to Fig 4-11:
Fig 4-11 Record Configuration-Enable
Step 2: Checkmark record, audio and record time
Step 3: User can setup all channels with same parameters, checkmark "all", then do relevant setup.
Step 4: Click "default" button to restore default setting; click "apply" button to save the setting; click "exit" button to
exit current interface.
23 | P a g e
