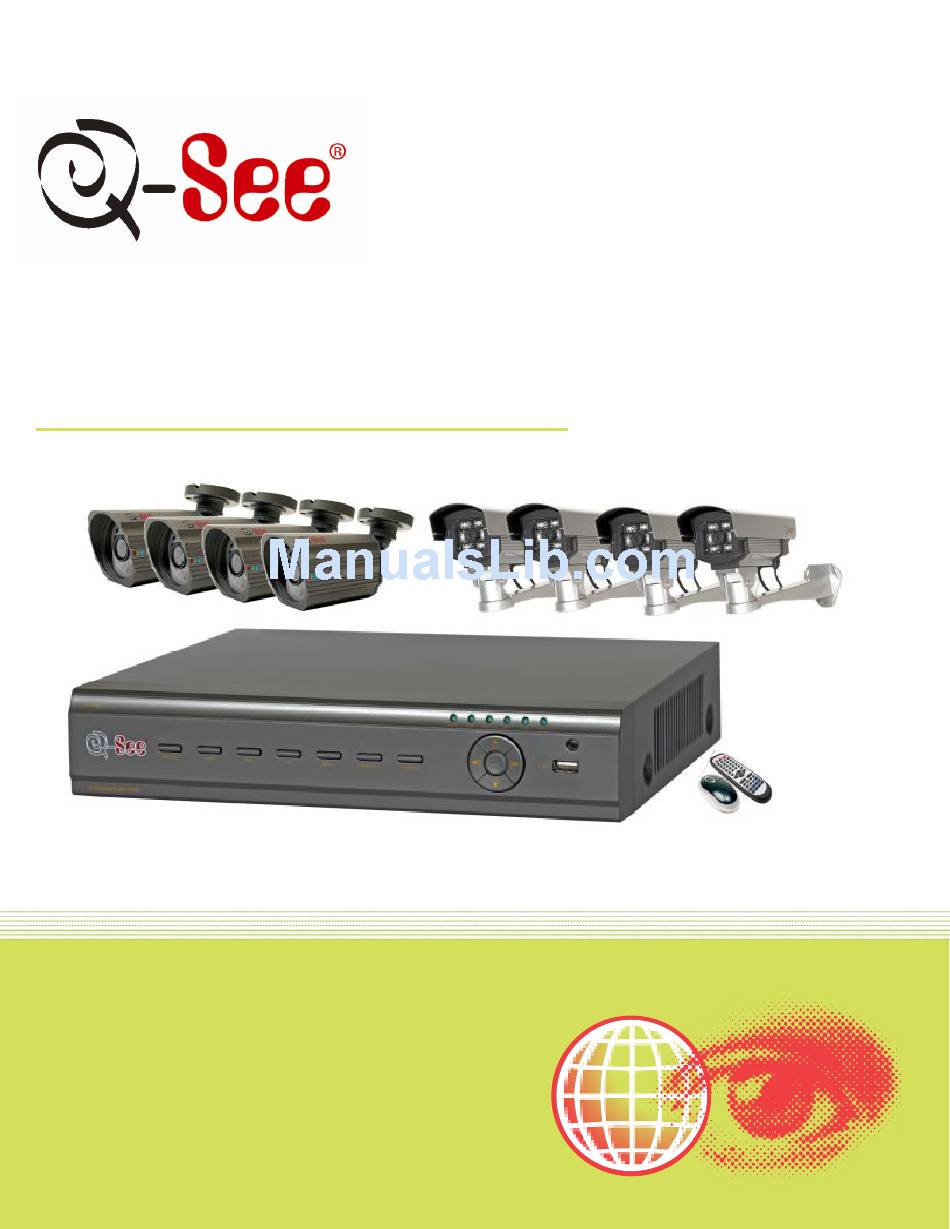

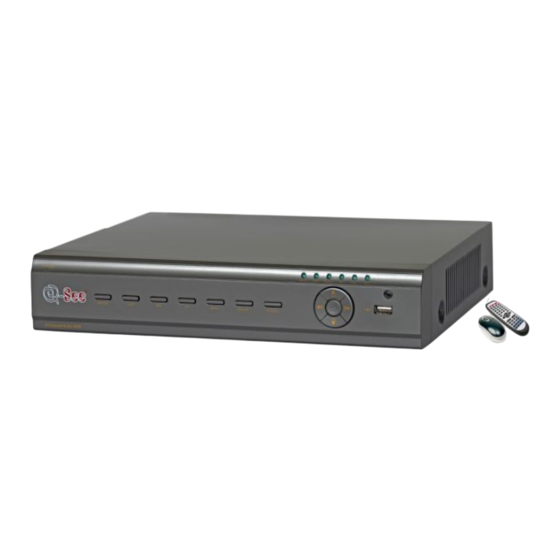

Page 1: Quick Installation Guide
Quick Installation Guide 8 Channel H.264 Compression DVR with (CIF) Real-Time Recording and 8 Color CCD Camera Kits including... -
Page 2: Part 1 - Package Contents
Q-SEE QUICK INSTALLATION GUIDE PART 1 - PACKAGE CONTENTS 4-QSDS148DH QT428 DVR 4 - Color CCD Cameras with Stands Cameras (8mm) QSDS3612D Cameras (3.6mm Lens) Manual QT426 DVR Power Supply Power Supply & 4-Power Supplies Camera Cables Hard Drive 4 -Way Splitter... - Page 3 Q-SEE QUICK INSTALLATION GUIDE PART 2 - DVR CAMERA AND POWER CONNECTIONS Please note that it is STRONGLY recommended to use a surge protector that is UL-1449 rated. Look for a clamping voltage of 330 or lower, a Joule rating of at least 400 and a response time of 10 nanoseconds or less.
- Page 4 Q-SEE QUICK INSTALLATION GUIDE PART 3 - CONNECTING THE DVR TO YOUR TV The primary display on the DVR is VGA. To use with a VGA monitor: 1. Plug the VGA cable (not included) to the VGA port on the DVR.
- Page 5 Q-SEE QUICK INSTALLATION GUIDE PART 4 - DVR CONTROLS: FRONT PANEL Item Name/Symbol Description Number LED INDICATORS Working indicators for power, HDD, NET, etc POWER Power On/Off RECORD Record Manually PLAY/SEARCH Enter Play Interface/Search Files Rewind Key Fast Forward +/MENU Increase the value in setup/Enter menu in live view －/BACKUP...
- Page 6 Q-SEE QUICK INSTALLATION GUIDE PART 5 - ACCESSING THE DVR MENUS Right click on the screen with the mouse or push the ESC button on the front panel of the DVR to bring up the Menu Bar shown as Pic 5.1.
- Page 7 Q-SEE QUICK INSTALLATION GUIDE PART 6 - SETTING UP THE DVR TO RECORD There are 4 modes for recording: manual, schedule, motion detection, and external sensor. In this Quick Start Guide we will cover manual, schedule, and motion detection. If you want to use external sensor alarms refer to sections 4.4.3 through 4.5.1 of the user’s manual for information on how to set these up.
- Page 8 Q-SEE QUICK INSTALLATION GUIDE 1. Manual Recording: Once you have setup and enabled the cameras you want to record, push the RECORD button on the front of the DVR. It will start recording and will continue recording until you push the RECORD button again. If the system is password protected it will ask for a password to stop recording.
- Page 9 Q-SEE QUICK INSTALLATION GUIDE 3. Motion Detection Recording: Go to the Main menu, Setup, and click on the Alarm icon (Blue Box in Pic 6.7) and select Motion which will bring up the screen shown as Pic 6.8. Go to the Motion options (Blue tab in Pic 6.8). Put a checkmark in the box for the cameras that you want to record on motion detection.
- Page 10 Q-SEE QUICK INSTALLATION GUIDE PART 7 - SETTING UP THE DVR TO PLAYBACK FILES Go to the Main menu and click on the Search icon (Green box in Pic 7.1). If the system is password protected, you will be prompted to enter a user name and password. This will bring up the Search screen shown as Pic 7.2. There are 3 search tabs in this dialog box;...
- Page 11 Q-SEE QUICK INSTALLATION GUIDE TO SEARCH BY EVENT: Go to the Event Search tab (Blue tab in Pic 7.4), if the system is password protected it will ask you to enter a user name and password. Click on the Search button, the event list will be displayed in the box on the left.
- Page 12 Q-SEE QUICK INSTALLATION GUIDE PART 8 - SETTING UP THE DVR TO BACKUP FILES The DVR supports backing up to a USB flash drive, USB hard drive, and USB burner. You can also backup to a PC through an Internet Explorer browser (refer to 7.6.2 Remote Backup in the user’s manual). Go to the Main menu and click on the Backup icon (Orange box in Pic 8.1).
- Page 13 Q-SEE QUICK INSTALLATION GUIDE Questions or Comments? Contact Us: Mailing Address: Customer Service: DPS, Inc. Phone: 877-998-3440 x 538 8015 E. Crystal Dr. Email: cs@dpsi-usa.com Anaheim, CA 92807 Live Chat from our Website Website: Tech Support: http://www.q-see.com Phone: 877-998-3440 x 539 Fax: Email: ts@dpsi-usa.com...
