Chapter 2: Checking Out Your Gateway Notebook

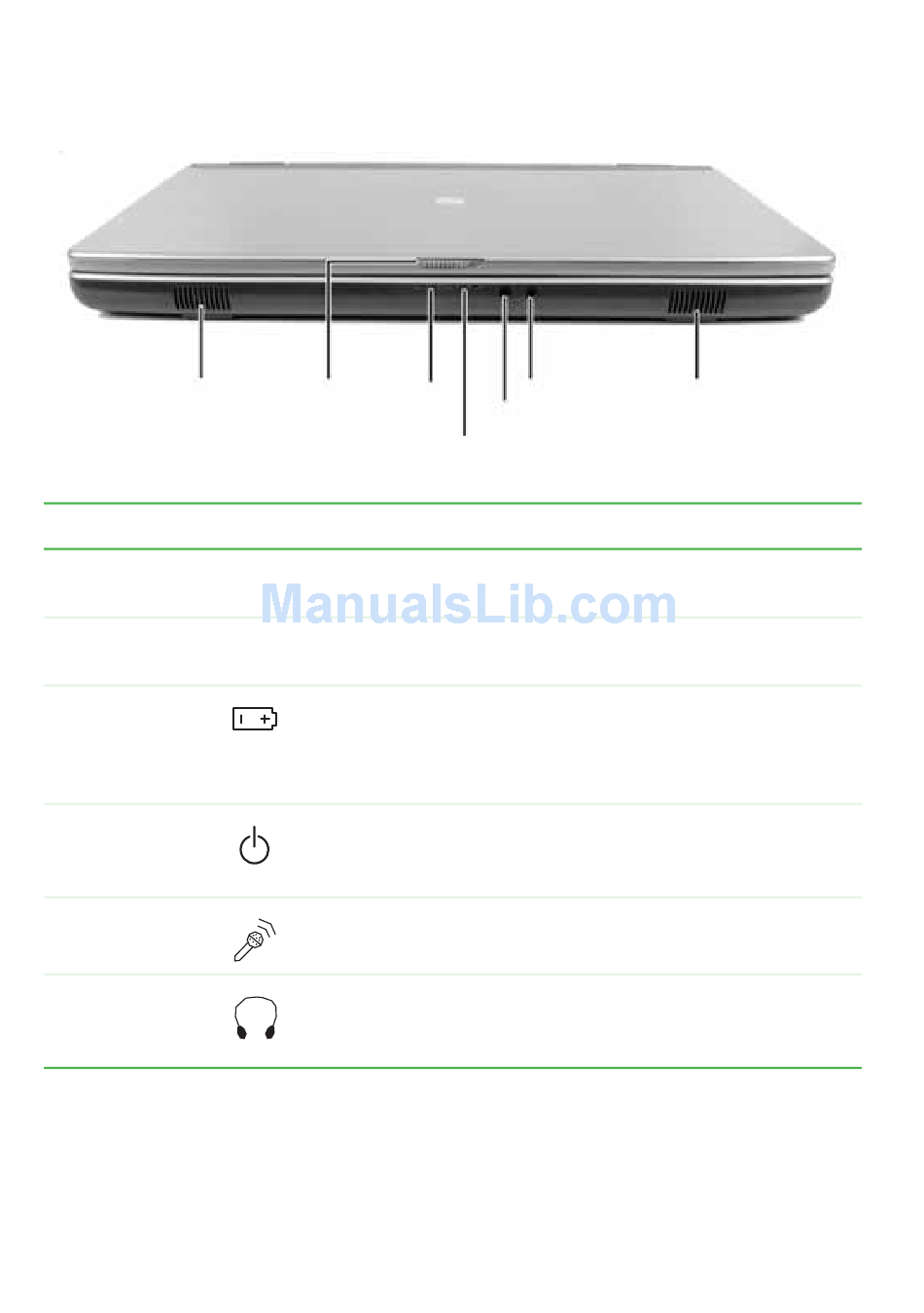

Front

Speaker
Component
Speakers
LCD panel
release latch
Battery charge
indicator
Power indicator
Microphone
jack
Headphone
jack
10
LCD panel Battery
release charge
latch indicator
Icon Description
Provide audio output when headphones or amplified
speakers are not plugged in.
Open the LCD panel by sliding the release latch.
LED blue - battery is fully charged.
■
LED purple - battery is charging.
■
LED blinking red - battery charge is very low.
■
LED solid red - battery is malfunctioning.
■
LED on - notebook is on.
■
LED blinking - notebook is in Standby mode.
■
LED off - notebook is off.
■
Plug a microphone into this jack.
Plug amplified speakers or headphones into this jack. The
built-in speakers are turned off when speakers or
headphones are plugged into this jack.
