Final Fitting

Fitting the Handles and Handrail
model)

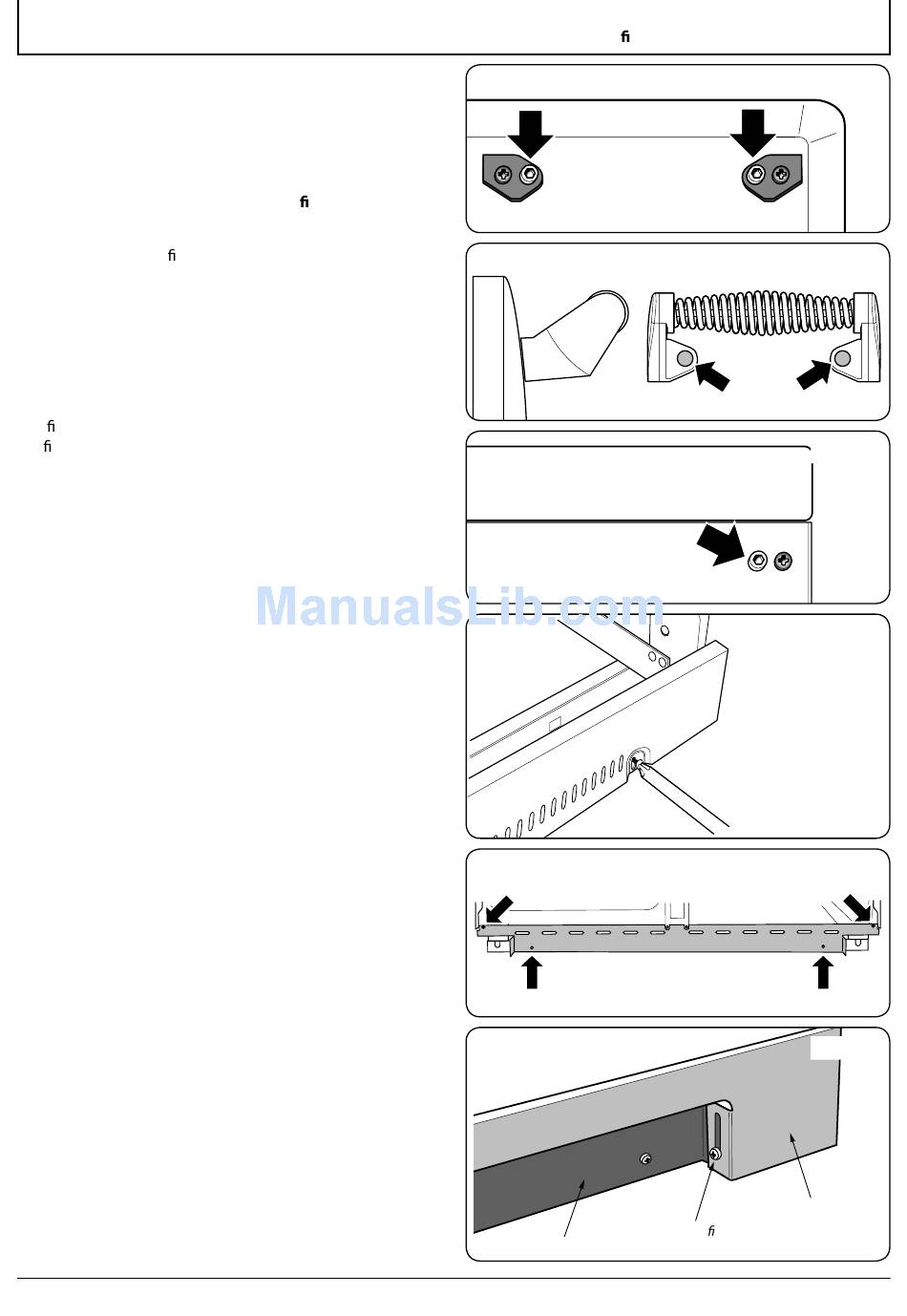

Remove the 4 mm Allen screws from the doors (Fig.7-10). Fit
the door handles and secure using the 4 mm screws.
The handles should be above the xings.
n n
Elan, Classic and Classic Deluxe only: Fit the plastic
blanking plugs to the xing holes (Fig.7-11).
Remove the 4 mm Allen screws from the top corners of the
fascia (Fig.7-12). Fit the front handrail in position and secure
using the 4 mm screws.
Fitting the 1-piece Plinth
Loosen the three screws along the front bottom edge of the
cooker. Hook the central keyhole over the central screw. Twist
and t each end keyhole over their respective screws. Tighten
the xing screws (Fig.7-13).
Fitting the 2-piece Plinth
Professional Deluxe)
Fit the inner plinth to the bottom front of the cooker using
the 4 screws provided (Fig.7-14).
Fit the outer plinth (2 screws, 1 each end) to the inner plinth.
The height of the outer plinth can be adjusted by sliding it up
or down via the slotted hole (Fig.7-15).
Fitting the Splashback
Position the splashback on the rear of the hotplate and secure
with the screws supplied.

Customer Care

Installer: Please complete your details in this guide, inform
the user how to operate the cooker and hand over the
instructions.
Thank you.
Check the appliance is electrically safe when you have nished.
(depending on
(Classic Deluxe and
(Classic, Classic Deluxe & Elan)
INSTALLATION
ArtNo.215-0026 - Handle gaskets fixed
ArtNo.215-0027 - Elan handle blanking plugs
Art No 215-0028 - Handrail fascia fixings
ArtNo.350-0012 - Securing the plinth
ArtNo.350-0010 - Fitting the plinth 1 (Kitchener)
ArtNo.350-0011 - Fitting the plinth 2 (Kitchener)
Inner plinth
31
Outer plinth
Outer plinth xing screw
Fig.7-10
Fig.7-11
Fig.7-12
Fig.7-13
Fig.7-14
Fig.7-15
