The Clock - Rangemaster Range Cooker User Manual

Fig.2-16
ArtNo.300-0004 2-button clock annotated
A
A – Timer knob, B – Adjusting knob
ArtNo.300-0005 2BC
Fig.2-17
minute minder setting
Fig.2-18
ArtNo.300-0006 2BC
minute minder setting 2
ArtNo.301-0007 2BC
Fig.2-19
Stopping the oven 1
ArtNo.301-0008 2BC
Fig.2-20
Stopping the oven 2
ArtNo.301-0009 2BC
Fig.2-21
Setting the cooking timer
Fig.2-22 ArtNo.301-0010 2BC
Setting the cooking time

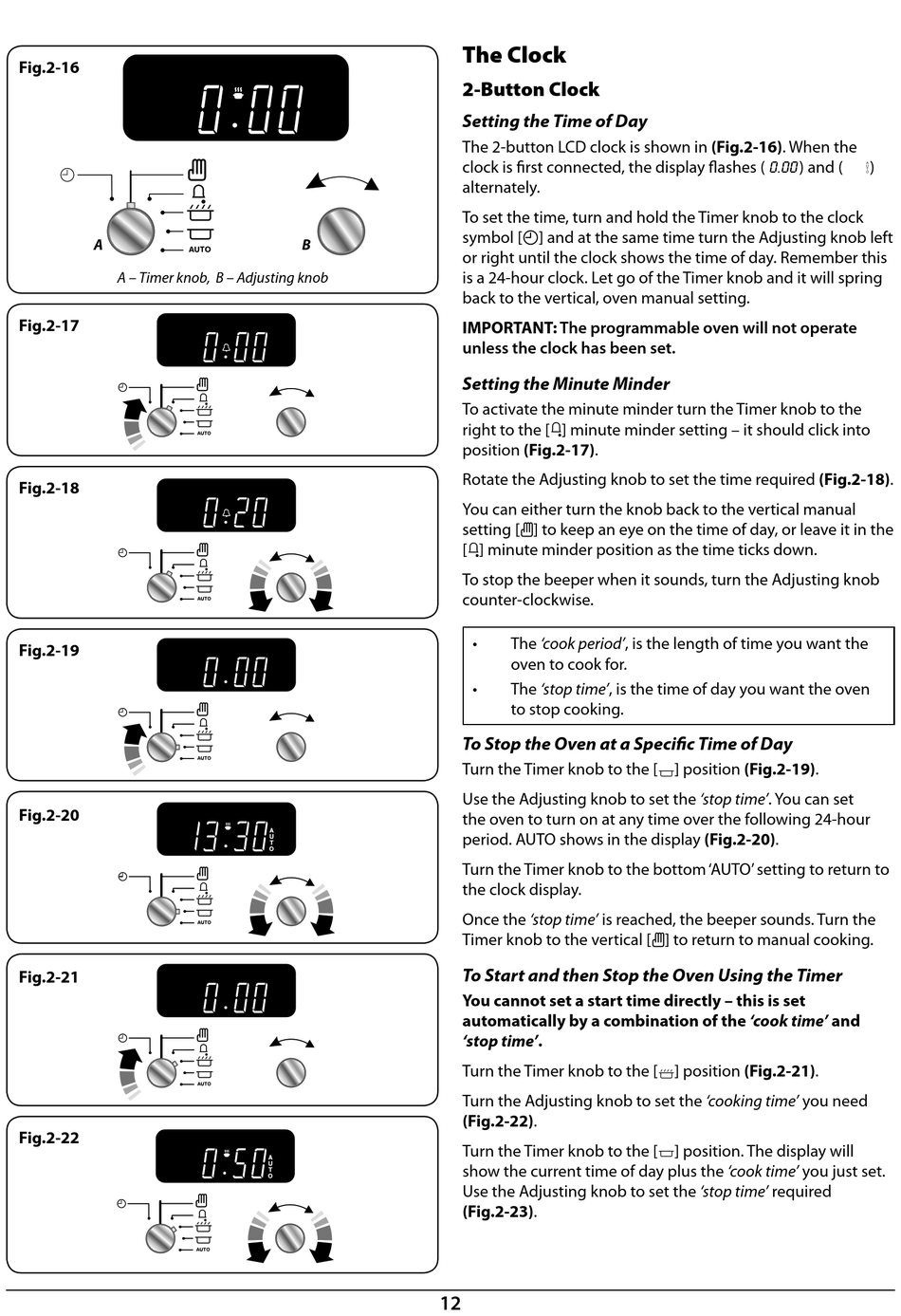

The Clock

2-Button Clock
Setting the Time of Day
The 2-button LCD clock is shown in (Fig.2-16). When the
clock is rst connected, the display ashes ( 0.00 ) and (
alternately.
To set the time, turn and hold the Timer knob to the clock
symbol [  ] and at the same time turn the Adjusting knob left
B
or right until the clock shows the time of day. Remember this
is a 24-hour clock. Let go of the Timer knob and it will spring
back to the vertical, oven manual setting.
IMPORTANT: The programmable oven will not operate
unless the clock has been set.
Setting the Minute Minder
To activate the minute minder turn the Timer knob to the
right to the [  ] minute minder setting – it should click into
position (Fig.2-17).
Rotate the Adjusting knob to set the time required (Fig.2-18).
You can either turn the knob back to the vertical manual
setting [  ] to keep an eye on the time of day, or leave it in the
[  ] minute minder position as the time ticks down.
To stop the beeper when it sounds, turn the Adjusting knob
counter-clockwise.
To Stop the Oven at a Speci c Time of Day
Turn the Timer knob to the [  ] position (Fig.2-19).
Use the Adjusting knob to set the 'stop time'. You can set
the oven to turn on at any time over the following 24-hour
period. AUTO shows in the display (Fig.2-20).
Turn the Timer knob to the bottom 'AUTO' setting to return to
the clock display.
Once the 'stop time' is reached, the beeper sounds. Turn the
Timer knob to the vertical [  ] to return to manual cooking.
To Start and then Stop the Oven Using the Timer
You cannot set a start time directly – this is set
automatically by a combination of the 'cook time' and
'stop time'.
Turn the Timer knob to the [  ] position (Fig.2-21).
Turn the Adjusting knob to set the 'cooking time' you need
(Fig.2-22).
Turn the Timer knob to the [  ] position. The display will
show the current time of day plus the 'cook time' you just set.
Use the Adjusting knob to set the 'stop time' required
(Fig.2-23).
12
• The 'cook period', is the length of time you want the
oven to cook for.
• The 'stop time', is the time of day you want the oven
to stop cooking.

)
