HP Spectre 13 x2 Pro Specification

Notebook pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

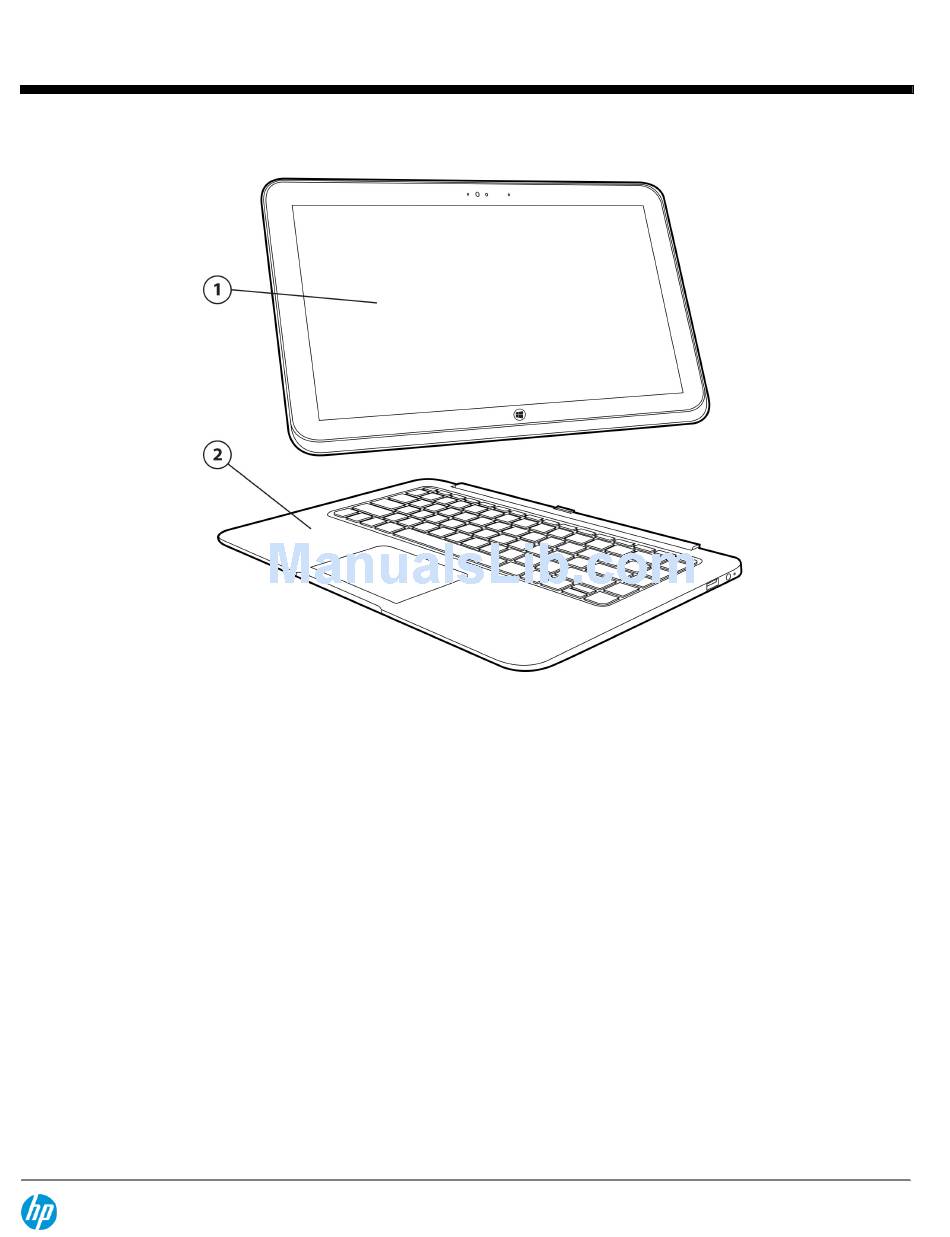

QuickSpecs
Overview
1. 13.3" Slate Tablet
2. Base
Separate Tablet and Base
DA - 14690 Worldwide — Version 4 — January 10, 2014
HP Spectre 13 x2 Pro Notebook PC
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP Spectre 13 x2 Pro

Summary of Contents for HP Spectre 13 x2 Pro

  • Page 1 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Overview Separate Tablet and Base 1. 13.3" Slate Tablet 2. Base DA - 14690 Worldwide — Version 4 — January 10, 2014 Page 1...
  • Page 2 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Overview Integrated Tablet and Base, Right Front View 1. WLAN antennas (2) Power connector 2. Internal microphones (2) Power connector 3. Webcam Button to detach tablet from base 4. Webcam light Clickpad 5.
  • Page 3 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Overview Rear View 1. Power button 2. Volume +/- button At A Glance Detachable hybrid tablet combines a super sleek design with key business features and the ability to seamlessly transition between notebook or tablet with one device.
  • Page 4 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Overview Integrated 802.11 ac, a/b/g/n or b/g/n with Bluetooth 4.0 combo card Standard commercial 1 year warranty with upgrade available with HP Care Pack NOTE: See important legal disclosures for all listed specs in their respective features sections.

  • Page 5: Operating System

    QuickSpecs HP Spectre 13 x2 Pro Notebook PC Features OPERATING SYSTEM Preinstalled Windows 8.1 Pro Windows 8.1 * Not all features are available in all editions of Windows 8.1. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows 8.1 functionality. See http://www.microsoft.com...
  • Page 6 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Features DISPLAY Internal 13.3" diagonal HD LED (1366x768) (Slim 3.0mm) UWVA Supports eDP Touchscreen, Multitouch enabled 13.3" diagonal FHD LED (1920x1080) (Slim 3.0mm) UWVA Supports eDP Touchscreen, Multitouch enabled External Up to 32-bit per pixel color depth HDMI 1.4a port supports up to 1080p, 1920 x 1080 at 60Hz...
  • Page 7 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Features NETWORKING/COMMUNICATIONS Wireless Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Broadband Wireless (WWAN) requires a Windows operating system and is available in select countries as an optional, factory configurable feature only.
  • Page 8 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Features KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS Keyboard The 101/102-key island-style keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control and alt keys, and function keys. US and International key layouts are available.
  • Page 9 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Features MPEG2 Audio Post processing Beats Audio™ Communication Skype Nuance Dragon Assistant Cloud Storage Box.net* HP File Viewer/Connected Drive (US only) HP Utilities and Support HP Online User Guide Getting Started with Windows 8.1?? HP Registration for Windows 8.1??
  • Page 10 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Features can be purchased for terms ranging from one to five years. Service is limited, check with Absolute for availability outside the U.S. For more information on HP security solutions refer to: http://www.hp.com/go/security.

  • Page 11: Weights And Dimensions

    QuickSpecs HP Spectre 13 x2 Pro Notebook PC Features ENVIRONMENTAL halogen* RFID support WEEE compliant (Waste Electric and Electronic Equipment) RoHS 2 Compliant MSH/OBL compliant E-Standby compliant DLNA certification Anti-theft** California Battery Charger Energy Efficiency compliant Skype Acceptance Test China CEL label * External power supplies, power cords, cables and peripherals are not Low Halogen.

  • Page 12: Service And Support

    QuickSpecs HP Spectre 13 x2 Pro Notebook PC Features PORTS/SLOTS Ports - Slate Headphone/Line-out (Beats Audio™ supported) and Mic-in (combo) - Voice recognition - One Docking Connector - One Ports - Base USB 3.0 - Two HDMI v1.4a - One...

  • Page 13: System Unit

    QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications SYSTEM UNIT Stand-Alone Power Nominal Operating TBD V Requirements (AC Power) Voltage Average Operating Power Integrated graphics: TBD W Discrete graphics: TBD W Max Operating Power < 45 W Temperature Operating 32°...
  • Page 14 HP Spectre 13 x2 Pro Notebook PC Technical Specifications * Configurations of the HP Spectre 13 x2 Pro that are ENERGY STAR qualified are identified as HP Spectre 13 x2 Pro on HP websites and on www.energystar.gov. ** EPEAT registration varies by country. See www.epeat.net...
  • Page 15 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications Viewing Angle ±30° Horizontal, ±10° Vertical (minimum) 30/30/20/10 (Left/Right/Down/Up) (minimum) or 45/45/35/25 (Left/Right/Down/Up) (typical) * All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or...
  • Page 16 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications NETWORKING/COMMUNICATIONS HP 3110 HSPA+ Mobile Technology/Operating CDMA/1xRTT/EvDO: 800MHz (Cell), 1900MHz (PCS) GSM/GPRS/EDGE: 850MHz (Cell), 900MHz (EGSM), 1800MHz (DCS), 1900MHz Broadband Module* Bands (PCS) UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz...

  • Page 17: Maximum Power Consumption

    QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications LED Activity LED Off - Radio Off; Solid LED On - Radio On * Mobile Broadband is an optional feature sold separately or as an add-on feature. Connection requires wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and availability.
  • Page 18 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications Temperature, non- -40° to 185° F (-40° to 85° C) operating, 96 hours (from MIL-STD 202 Method 108) Humidity, non-operating 95% relative humidity for 48 hours @ 185° F (85° C) (non-condensing) LED activity LED Off - Radio Off;...
  • Page 19 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications Roaming IEEE 802.11 compliant roaming between band Access Points Output Power 2.4G: +13.5dBm minimum 5G: +12dBm minimum Power Consumption Transmit: 2.0 Watts Receive: 1.6 Watts Idle mode : 250 mW (WLAN Associated)
  • Page 20 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications Number of Available 79 (1 MHz) available channels Channels Data Rates and 3 Mbps data rate; throughput up to 2.17 Mbps Throughput Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or...
  • Page 21 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications Intel Dual Band Wireless- Wireless LAN Standards* IEEE 802.11a IEEE 802.11b AC 7260 802.11 ac (2x2) IEEE 802.11g WiFi + BT 4.0 combo IEEE 802.11n Adapter IEEE 802.11ac** Interoperability Wi-Fi certified *Wireless access point and internet service required.
  • Page 22 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications Output Power 2.4G: +13.5dBm minimum 5G: +12dBm minimum Maximum output power must be able to achieve modular regulatory certification with notebooks that have antennas >20cm from the user and peak gain of +3dBi at 2.4GHz and +4dBi at 5GHz Power Consumption Transmit: 2.0 W (max)
  • Page 23 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications Data Rates and 3 Mbps data rate; throughput up to 2.17 Mbps Throughput Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric...
  • Page 24 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications Intel Dual Band Wireless- Wireless LAN Standards* IEEE 802.11b IEEE 802.11g N 7260BN 802.11 a/b/g/ IEEE 802.11n WiFi + BT 4.0 combo Adapter Interoperability Wi-Fi certified *Wireless access point and internet service required. Availability of public wireless access points limited.
  • Page 25 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications 802.11n:-69 dBm (150 Mbps), -66 dBm (300 Mbps) Antenna Connections 2 U.FL type connectors (output impedance of 50 ± 2 ohms) Form Factor PCI-Express Half-MiniCard Dimensions 0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm) Weight 3.1g...
  • Page 26 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications Security Full support of Bluetooth Security Provisions Power Management Microsoft Windows ACPI, and USB Bus Support Self-configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff...
  • Page 27 QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications Audio Output Quality Frequency Response 20 Hz - 20 kHz Signal to Noise Ratio >85 dB Total Harmonic Distortion 0.01% Noise Floor -110 dB Play/Record Sampling 8 kHz - 48kHz...

  • Page 28: Warranty

    QuickSpecs HP Spectre 13 x2 Pro Notebook PC Technical Specifications HP 2-cell Polymer Battery Dimensions (h x w x l) 294.0 x 130.8 x 3.43 (not including WTB connector) 294.0 x 148.30 x 3.43 (including WTB connector) (18 WHr) Weight (max) <...

  • Page 29: Options And Accessories (Sold Separately And Availability May Vary By Country)

    Intel and Core are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark owned by its proprietor and used by Hewlett-Packard Company under license. . Adobe is a trademark of Adobe Systems Incorporated.
