11

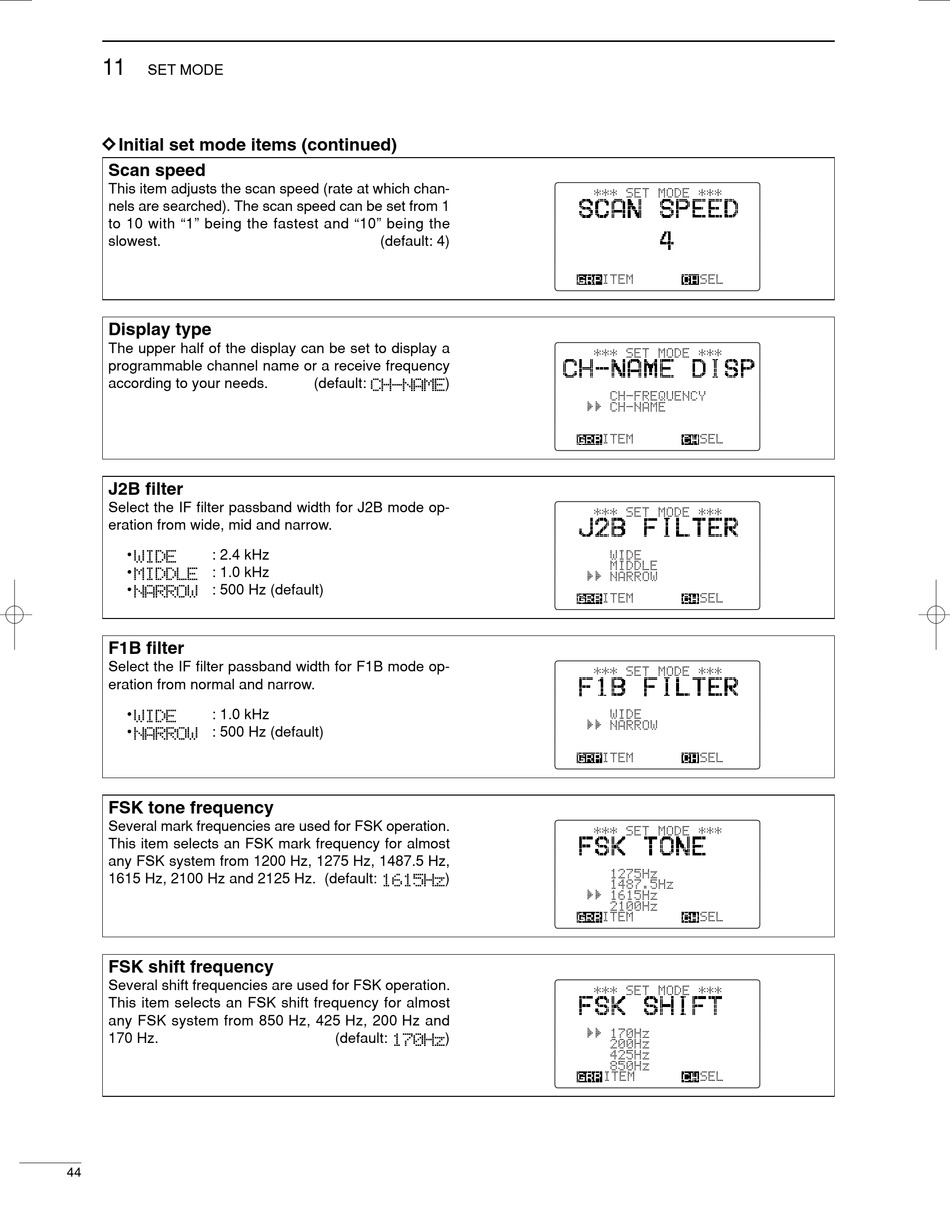

SET MODE
D D Initial set mode items (continued)
Scan speed
This item adjusts the scan speed (rate at which chan-
nels are searched). The scan speed can be set from 1
to 10 with "1" being the fastest and "10" being the
slowest.
Display type
The upper half of the display can be set to display a
programmable channel name or a receive frequency
according to your needs.
J2B filter
Select the IF filter passband width for J2B mode op-
eration from wide, mid and narrow.
•
: 2.4 kHz
•
: 1.0 kHz
•
: 500 Hz (default)
F1B filter
Select the IF filter passband width for F1B mode op-
eration from normal and narrow.
•
: 1.0 kHz
•
: 500 Hz (default)
FSK tone frequency
Several mark frequencies are used for FSK operation.
This item selects an FSK mark frequency for almost
any FSK system from 1200 Hz, 1275 Hz, 1487.5 Hz,
1615 Hz, 2100 Hz and 2125 Hz. (default:
FSK shift frequency
Several shift frequencies are used for FSK operation.
This item selects an FSK shift frequency for almost
any FSK system from 850 Hz, 425 Hz, 200 Hz and
170 Hz.
44
(default: 4)
(default:
)
)
(default:
)
ÇÇ
ÇÇ
ÇÇ
ÇÇ
ÇÇ
